Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DOCSC012F-012.8MXTAL OSC OCXO 12.8000MHZ LVCMOS |
140 |
|
Datasheet |
DOCSC | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | OCXO | - | LVCMOS | 3.3V | 12.8 MHz | ±10ppb | - | -40°C ~ 85°C | - | - | 0.555" L x 0.358" W (14.10mm x 9.10mm) | - | - | Surface Mount | 0.335" (8.51mm) |
|

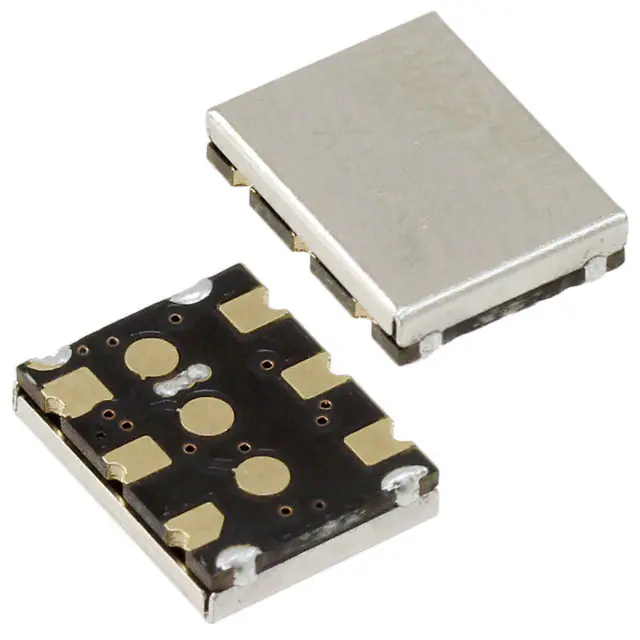

ASGTX-D-1.000GHZ-1XTAL OSC VCTCXO 1.0000GHZ LVDS |
1,040 |
|
Datasheet |
ASGTX | 6-SMD, No Lead | Bulk | Active | Crystal | VCTCXO | - | LVDS | 3.135V ~ 3.465V | 1 GHz | ±1ppm | - | -30°C ~ 70°C | - | 40mA | 0.354" L x 0.276" W (9.00mm x 7.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.088" (2.24mm) |
|
AST3TQ-T-16.384MHZ-50-CXTAL OSC TCXO 16.3840MHZ LVCMOS |
2,110 |
|
Datasheet |
AST3TQ-50 | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | - | LVCMOS | 3.3V | 16.384 MHz | ±50ppb | - | -40°C ~ 85°C | - | 7mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.079" (2.00mm) |
|
SIT5721A-KW-0003FROM -40 TO 85C,9070,0.005PPM,10 |
2,273 |
|
Datasheet |
SiT5721, Emerald Platform™ | 10-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | OCXO | - | LVCMOS | 3.3V | 10 MHz | ±5ppb | - | -40°C ~ 85°C | - | - | 0.354" L x 0.276" W (9.00mm x 7.00mm) | - | 10-SMD (9x7) | Surface Mount | 0.247" (6.28mm) |
|
AST3TQ53-T-10.000MHZ-5-SWXTAL OSC TCXO 10.0000MHZ SNWV |
4,288 |
|
Datasheet |
AST3TQ53 | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | - | Clipped Sine Wave | 3.3V | 10 MHz | ±50ppb | - | -40°C ~ 85°C | - | 6mA | 0.205" L x 0.134" W (5.20mm x 3.40mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
NI-10M-2502XTAL OSC OCXO 10.0000MHZ SNWV TH |
166 |
|
Datasheet |
NI-10M-2500 | 6-DIP (1.000", 25.40mm), 5 Leads | Box | Active | Crystal | OCXO | - | Sine Wave | 5V | 10 MHz | ±10ppb | - | -30°C ~ 70°C | - | 800mA | 1.430" L x 1.070" W (36.32mm x 27.18mm) | - | - | Through Hole | 0.500" (12.70mm) |
|
|
AST3TQ53-V-10.000MHZ-5-CXTAL OSC VCTCXO 10.0000MHZ LVCMO |
218 |
|
Datasheet |
AST3TQ53 | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | - | LVCMOS | 3.3V | 10 MHz | ±50ppb | - | -40°C ~ 85°C | - | 6mA | 0.205" L x 0.134" W (5.20mm x 3.40mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.063" (1.60mm) |
|
|
SIT5503AB-WW-33E0-10.000000X1 MHZ 60 MHZ, ELITE X 5 PPB PRE |
234 |
|
Datasheet |
SiT5503, Elite X™ | 10-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | DCTCXO | Enable/Disable | LVCMOS | 3.3V | 10 MHz | ±5ppb | - | -40°C ~ 95°C | - | 53mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 10-CQFN (7x5) | Surface Mount | 0.087" (2.20mm) |
|
OH300-50503CF-020.0MXTAL OSC OCXO 20.0000MHZ CMOS |
113 |
|
Datasheet |
OH300 | 7-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | OCXO | - | CMOS | 3.3V | 20 MHz | ±5ppb | - | 0°C ~ 70°C | - | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | - | - | Surface Mount | 0.500" (12.70mm) |
|
|
OH300-50503CF-050.0MXTAL OSC OCXO 50.0000MHZ CMOS |
116 |
|
Datasheet |
OH300 | 7-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | OCXO | - | CMOS | 3.3V | 50 MHz | ±5ppb | - | 0°C ~ 70°C | - | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | - | - | Surface Mount | 0.500" (12.70mm) |
|
|
NSC5263B-10MOSC OCXO 10MHZ CMOS SMD |
2,946 |
|
Datasheet |
NH7050SA | 10-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | OCXO | - | LVCMOS, Square Wave | 3.3V | 10 MHz | ±50ppb | - | -40°C ~ 95°C | - | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.142" (3.60mm) |
|
ECOC-2522-40.000-3GSXTAL OSC OCXO 40.0000MHZ SNWV |
3,066 |
|
Datasheet |
ECOC-2522 | 6-SMD, No Lead, 5 Leads | Tray | Active | Crystal | OCXO | - | Sine Wave | 3.3V | 40 MHz | ±10ppb | - | -20°C ~ 70°C | - | - | 1.000" L x 0.870" W (25.40mm x 22.10mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.488" (12.40mm) |
|
AOCJY-10.000MHZ-TXTAL OSC VCOCXO 10.0000MHZ CMOS |
287 |
|
Datasheet |
AOCJY | 6-SMD, No Lead, 5 Leads | Tape & Reel (TR) | Active | Crystal | VCOCXO | Standby (Power Down) | CMOS | 3.3V | 10 MHz | ±5ppb | - | 0°C ~ 50°C | - | - | 1.000" L x 0.866" W (25.40mm x 22.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.500" (12.70mm) |
|
OX6551A-D3-10-100.000-5XTAL OSC OCXO 100MHZ 3.3V TH |
138 |
|
Datasheet |
5100 | 6-DIP (0.600", 15.24mm), 5 Leads | Bulk | Active | Crystal | OCXO | - | Sine Wave | 5V | 100 MHz | ±100ppb | - | -40°C ~ 85°C | - | - | 0.866" L x 0.866" W (22.00mm x 22.00mm) | - | - | Through Hole | 0.453" (11.50mm) |
|
SG-210STF 24.5760ML0XTAL OSC XO 24.5760MHZ CMOS SMD |
3,637 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | 24.576 MHz | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
SG3225CAN 48.0000M-TJGA6XTAL OSC XO 48.0000MHZ CMOS SMD |
1,782 |
|
Datasheet |
SG3225CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 48 MHz | ±50ppm | - | -40°C ~ 85°C | - | 2.6mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
|
KC2520Z2.04800C1KX00XTAL OSC XO 2.0480MHZ CMOS SMD |
1,073 |
|
Datasheet |
KC2520Z | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | 2.048 MHz | ±20ppm | - | -40°C ~ 85°C | - | 5.8mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | Surface Mount | 0.031" (0.80mm) |
|
ISM92-3251AH-50.000MHZOSC XO 50MHZ 3.3V CMOS SMD |
3,135 |
|
Datasheet |
ISM92 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS, TTL | 3.3V | 50 MHz | ±25ppm | - | -40°C ~ 85°C | - | 40mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | - | Surface Mount | 0.063" (1.60mm) |
|
EB13E2H2H-50.000M TROSC XO 50MHZ 3.3V CMOS SMD |
9,239 |
|
Datasheet |
EB13E2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 50 MHz | ±50ppm | - | -40°C ~ 85°C | - | 6mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | Surface Mount | 0.043" (1.10mm) |
|
ECS-2333-333.3-BN-TRXTAL OSC XO 33.3330MHZ HCMOS SMD |
8,892 |
|
Datasheet |
ECS-2333 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCMOS | 3.3V | 33.333 MHz | ±50ppm | - | -40°C ~ 85°C | - | 13mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.039" (1.00mm) |
