Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Operating Mode | Time Format | Number of Characters Per Row | Display Type | Count Rate | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Ingress Protection | Panel Cutout Dimensions | Termination Style | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

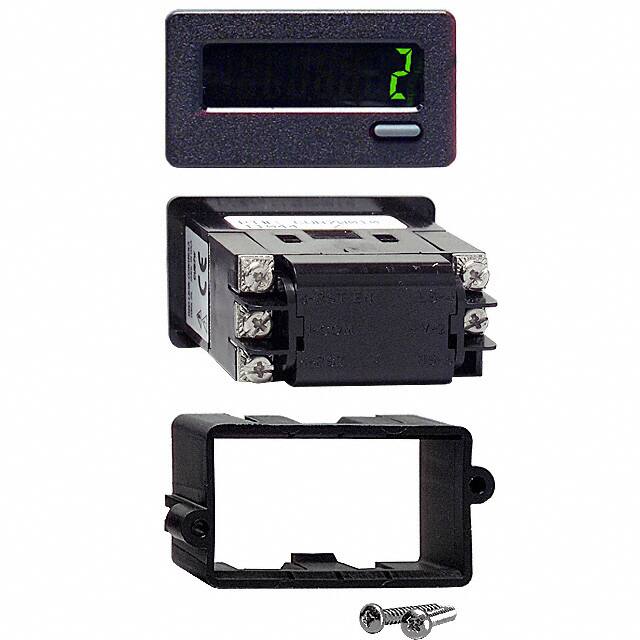

CUB7W010COUNTER LCD 8 CHAR 3.6V PANEL MT |
4,269 |
|
Datasheet |
CUB7 | - | Obsolete | Totalizer | Up | - | 8 | LCD - Green Characters, Backlight | 30Hz | 0.350" (8.90mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | IP66 - Dust Tight, Water Resistant | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|

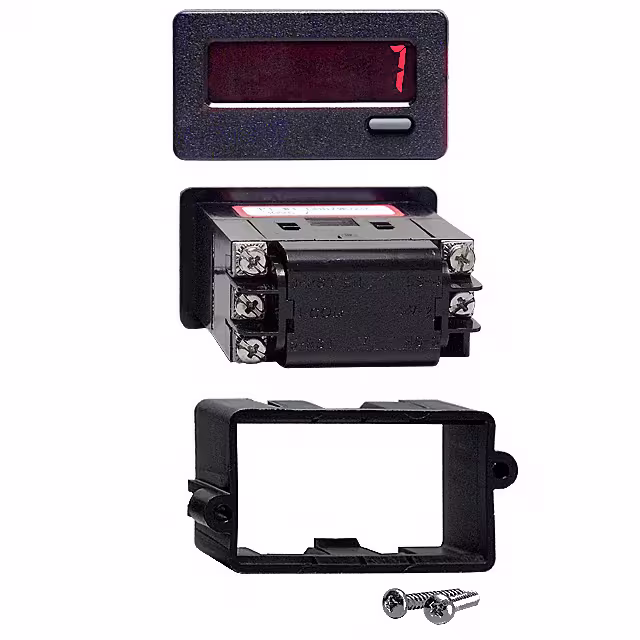

CUB7W020COUNTER LCD 8 CHAR 3.6V PANEL MT |
1,326 |
|
Datasheet |
CUB7 | - | Obsolete | Totalizer | Up | - | 8 | LCD - Red Characters, Backlight | 30Hz | 0.350" (8.90mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | IP66 - Dust Tight, Water Resistant | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
20065-16COUNTER 6 CHARACTER PANEL MT |
4,824 |
|
Datasheet |
20000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | Decade Wheel | - | 0.120" (3.00mm) | - | - | - | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
20085-17COUNTER 6 CHARACTER PANEL MT |
3,141 |
|
Datasheet |
20000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | Decade Wheel | - | 0.120" (3.00mm) | - | - | - | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
LH24-F-H-ALCOUNTER LCD 7 CHAR PANEL MOUNT |
4,233 |
|
Datasheet |
LH24 | Bulk | Active | Time Counter (Hour Meter) | Up | 99999.99hrs | 7 | LCD - Black Characters | - | - | Voltage | - | None Required (Battery Included) | External, Front Panel | - | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
|
LH24-F-DH-AHCOUNTER LCD 7 CHAR PANEL MOUNT |
2,745 |
|
Datasheet |
LH24 | Bulk | Active | Time Counter (Hour Meter) | Up | 3999day23.9hrs | 7 | LCD - Black Characters | - | - | Voltage | - | None Required (Battery Included) | External, Front Panel | - | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
|
LH24-F-HM-AHCOUNTER LCD 7 CHAR PANEL MOUNT |
4,025 |
|
Datasheet |
LH24 | Bulk | Active | Time Counter (Hour Meter) | Up | 9999hrs59.9min | 7 | LCD - Black Characters | - | - | Voltage | - | None Required (Battery Included) | External, Front Panel | - | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
|
LM-HW2AS-H11LCD HOURMETER,2 TERMINALS (2.27 |
2,891 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KCM-70A-CCOUNTERS |
1,382 |
|
Datasheet |
- | Box | Active | Time Counter | Up | - | 7 | Decade Wheel | 25Hz | 0.157" (4.00mm) | Voltage | Analog | 24VDC | Non-Resettable | IP65 - Dust Tight, Water Resistant | Rectangular - 30.00mm x 13.00mm | Screw Terminal | Panel Mount |
|
CUB7P200COUNTER LCD 8 CHAR 3V PANEL MT |
1,237 |
|
Datasheet |
CUB7 | - | Obsolete | Totalizer | Up | - | 8 | LCD - Black Characters | 10kHz | 0.350" (8.90mm) | Voltage | - | Battery, 3VDC | External, Front Panel | IP66 - Dust Tight, Water Resistant | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
|
CUB7P000COUNTER LCD 8 CHAR 3V PANEL MT |
1,039 |
|
Datasheet |
CUB7 | Box | Obsolete | Totalizer | Up | - | 8 | LCD - Black Characters | 30Hz | 0.350" (8.90mm) | No Voltage | - | Battery, 3VDC | External, Front Panel | IP66 - Dust Tight, Water Resistant | Rectangular - 45.00mm x 22.20mm | Screw Terminal | Panel Mount |
|
|
711-0013HR, 115/60 MIN SAE SCT WITH CLIP |
4,485 |
|
Datasheet |
711 | Active | Time Counter (Hour Meter) | Up | 99999.99hrs | 7 | No Display | 60Hz | 0.140" (3.60mm) | Voltage | Analog | 115VAC | Non-Resettable | IP65 - Dust Tight, Water Resistant | Circular - 50.00mm Dia | Wire Leads | Panel Mount | |
|
|
711-016424/60 Rd Bezel 3HL Sct w/hardwar |
2,308 |
|
Datasheet |
711 | Active | Time Counter (Hour Meter) | Up | 99999.99hrs | 7 | No Display | 60Hz | 0.140" (3.60mm) | Voltage | Analog | 24VAC | Non-Resettable | IP65 - Dust Tight, Water Resistant | Circular - 50.00mm Dia | Screw Terminal | Panel Mount | |
|
|
711-0190115/60 Sq Bezel Fl Sct Meters |
1,087 |
|
Datasheet |
711 | Active | Time Counter (Hour Meter) | Up | - | 7 | No Display | 60Hz | 0.140" (3.60mm) | Voltage | Analog | 115VAC | Non-Resettable | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | Panel Mount | |
|
|
20111-14COUNTER 6 CHARACTER PANEL MT |
1,512 |
|
Datasheet |
20000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | Decade Wheel | - | 0.120" (3.00mm) | - | - | - | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
28103-03COUNTER 6 CHAR 90-264V PANEL MT |
3,298 |
|
Datasheet |
28100 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | Decade Wheel | 60Hz | 0.120" (3.00mm) | - | - | 90 ~ 264VAC | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
LM-CS3CS-N13COUNTER LCD 6 CHAR 9-64V PNL MT |
2,955 |
|
Datasheet |
LM | Bulk | Not For New Designs | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | LCD - Black Characters | - | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | Non-Resettable | IP67 - Dust Tight, Waterproof | Rectangular - 36.58mm x 23.88mm | Quick Connect - 0.187" (4.7mm) | Panel Mount |
|
|
LM-HS3AS-H11COUNTER LCD 6 CHAR 9-64V PNL MT |
3,883 |
|
Datasheet |
LM | Bulk | Not For New Designs | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | LCD - Black Characters | - | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | Non-Resettable | IP67 - Dust Tight, Waterproof | Rectangular - 36.58mm x 23.88mm | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
28106-03COUNTER 6 CHAR 90-264V PANEL MT |
1,550 |
|
Datasheet |
28100 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | Decade Wheel | 60Hz | 0.120" (3.00mm) | - | - | 90 ~ 264VAC | - | IP66 - Dust Tight, Water Resistant | - | Quick Connect - 0.250" (6.3mm) | Panel Mount |
|
|
LM-HD3AS-H11COUNTER LCD 6 CHAR 9-64V PNL MT |
3,101 |
|
Datasheet |
LM | Bulk | Obsolete | Time Counter (Hour Meter) | Up | 99999.9hrs | 6 | LCD - Black Characters | - | 0.275" (7.00mm) | - | - | 9 ~ 64VAC/DC | Non-Resettable | IP67 - Dust Tight, Waterproof | Rectangular - 36.58mm x 23.88mm | Quick Connect - 0.250" (6.3mm) | Panel Mount |
