| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Filter Type | Configuration | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Voltage - Rated DC | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Style | Inductance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMI-26B-3-1LINE FILTER 250VAC 3A CHASS MNT |
3,412 |
|
Datasheet |
AMI-26 | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 3 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | 5mH | Quick Connect |
|
FIHMA01C1FLINE FILTER 250VAC 1A CHASS MNT |
1,255 |
|
Datasheet |
- | Tray | Active | Single Phase | Two Stage | 250V | - | - | - | 1 A | DC ~ 400Hz | Medical | EN, UL | -40°C ~ 110°C | Chassis Mount | 7.4mH | Quick Connect |
|
|
FIHMA06C1FLINE FILTER 250VAC 6A CHASS MNT |
4,864 |
|
Datasheet |
- | Tray | Active | Single Phase | Two Stage | 250V | - | - | - | 6 A | DC ~ 400Hz | Medical | EN, UL | -40°C ~ 110°C | Chassis Mount | 1.4mH | Quick Connect |
|
AMI-23-8-1LINE FILTER 250VAC 8A CHASS MNT |
4,218 |
|
Datasheet |
AMI-23 | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 8 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | 8mH | Quick Connect |
|
|
AMI-26-3-1LINE FILTER 250VAC 3A CHASS MNT |
1,025 |
|
Datasheet |
AMI-26 | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 3 A | DC ~ 400Hz | General Purpose | CE, cURus | -25°C ~ 100°C | Chassis Mount | 5mH | Quick Connect |
|
TGA-010LINE FILTER 440VAC 10A CHASS MNT |
2,148 |
|
Datasheet |
TG | Box | Obsolete | Three Phase (Wye) | Single Stage | 440V | - | - | - | 10 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | - | Quick Connect |
|
AMI-M12B-3-6-BLINE FILTER 250VAC 6A CHASS MNT |
1,582 |
|
Datasheet |
AMI-M12B | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | - | Wire Leads |
|
AMI-M12Z-1-6-BLINE FILTER 250VAC 6A CHASS MNT |
2,425 |
|
Datasheet |
AMI-M12Z | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 1.8mH | Quick Connect |
|
AMI-B11AW3-13-3-BLINE FILTER 250VAC 3A TH |
2,646 |
|
Datasheet |
AMI-B11AW | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Through Hole | 13.77mH | PC Pins |
|
FHSMM15A2FRLINE FILTER 250VAC 15A CHASS MNT |
4,786 |
|
Datasheet |
- | Tray | Active | Single Phase | Single Stage | 250V | - | - | - | 15 A | DC ~ 400Hz | Medical | EN, UL | -40°C ~ 110°C | Chassis Mount | 800µH | Quick Connect |
|
VFM-50-UW-TLINE FILTER 160VDC CHASSIS MOUNT |
1,087 |
|
Datasheet |
VFM-50-UW | Tray | Not For New Designs | DC | Single Stage | - | - | - | 160V | - | - | General Purpose | - | -40°C ~ 85°C | Chassis Mount | - | Terminal Block |
|
|
AMI-B11AW3-13-2-BLINE FILTER 250VAC 2A TH |
1,992 |
|
Datasheet |
AMI-B11AW | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 2 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Through Hole | 21.52mH | PC Pins |
|
|
3-134-824LINE FILTER 250VAC 6A CHASS MNT |
3,657 |
|
Datasheet |
FMAB NEO | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 6 A | - | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | - | Quick Connect |
|
|
3-134-834LINE FILTER 250VAC 8A CHASS MNT |
2,696 |
|
Datasheet |
FMAB NEO | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 8 A | - | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | - | Quick Connect |
|

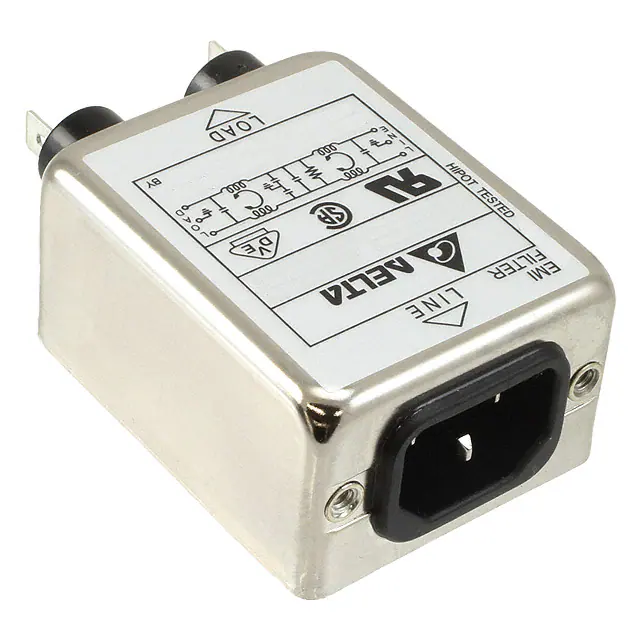

05DRDG3SLINE FILTER 115V/250VAC 5A CHASS |
4,852 |
|
Datasheet |
DR | Box | Active | Single Phase | Two Stage | 115V, 250V | - | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | 1.3mH | IEC 320-C14, Quick Connect |
|
|
AMI-26A-3-1LINE FILTER 250VAC 3A CHASS MNT |
3,827 |
|
Datasheet |
AMI-26 | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 3 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | 5mH | Quick Connect |
|
AMI-M11R-7-6-B-2LINE FILTER 250VAC 6A CHASS MNT |
2,011 |
|
Datasheet |
AMI-M11R | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7.8mH | IEC 320-C14, Quick Connect |
|
|
AMI-M11R-7M-6-B-2LINE FILTER 250VAC 6A CHASS MNT |
2,436 |
|
Datasheet |
AMI-M11R | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7.8mH | IEC 320-C14, Quick Connect |
|
AMI-21A-16-1LINE FILTER 250VAC 16A CHASS MNT |
1,504 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | 600µH | - |
|
|
AMI-M11R-7M-6-B-1LINE FILTER 250VAC 6A CHASS MNT |
3,432 |
|
Datasheet |
AMI-M11R | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7.8mH | IEC 320-C14, Quick Connect |
