| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Filter Type | Configuration | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Voltage - Rated DC | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Style | Inductance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMC-03LINE FILTER 85V-305VAC 0.3A TH |
4,411 |
|
Datasheet |
- | Tube | Not For New Designs | Single Phase | Single Stage | 85V ~ 305V | - | - | - | 300 mA | 47Hz, 63Hz | General Purpose | - | -40°C ~ 85°C | Through Hole | - | PC Pins |
|
851-02/001LINE FILTER 115V/250VAC 2A CHASS |
2,402 |
|
Datasheet |
851 | Tray | Obsolete | Single Phase | Single Stage | 115V, 250V | - | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 85°C | Chassis Mount | 1.1mH | Quick Connect |
|
ID-15A2HLINE FLTR 250VAC/VDC 15A PANEL |
1,776 |
|
Datasheet |
ID | Active | Single Phase | Single Stage | 250V | - | - | 250V | 15 A | 50 ~ 60Hz | General Purpose | CQC, CSA, ENEC, TUV, UR, VDE | -25°C ~ 85°C | Panel Mount | - | IEC 320-C14, Quick Connect | |
|
|
AMI-M11UF-1-16-BLINE FILTER 250VAC 16A CHASS MNT |
4,677 |
|
Datasheet |
AMI-M11UF | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 2.1mH | Quick Connect |
|
|
851-02/002LINE FILTER 115V/250VAC 2A CHASS |
1,054 |
|
Datasheet |
851 | - | Obsolete | Single Phase | Single Stage | 115V, 250V | - | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 85°C | Chassis Mount | 1.1mH | Wire Leads |
|
|
AMI-M11UA-3-16-CLINE FILTER 250VAC 16A CHASS MNT |
2,241 |
|
Datasheet |
AMI-M11UA | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 540µH | Wire Leads |
|
|
AMI-M11UB-1-16-CLINE FILTER 250VAC 16A CHASS MNT |
3,043 |
|
Datasheet |
AMI-M11UB | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 1.3mH | Quick Connect |
|

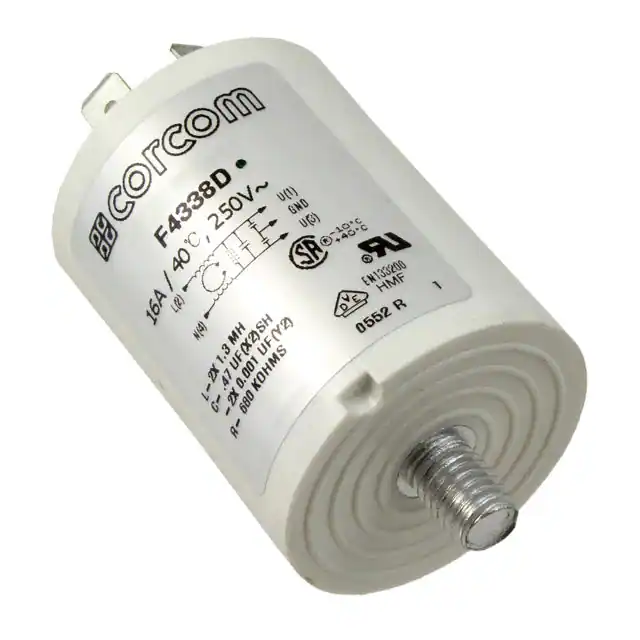

4-6609089-7LINE FILTER 250VAC 16A CHASS MNT |
3,492 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | 1.3mH | Quick Connect, Threaded Post (M8) |
|
|
AMI-M11UC-1-16-CLINE FILTER 250VAC 16A CHASS MNT |
3,330 |
|
Datasheet |
AMI-M11UC | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 2.1mH | Quick Connect |
|
|
AMI-M11UD-1-16-BLINE FILTER 250VAC 16A CHASS MNT |
1,176 |
|
Datasheet |
AMI-M11UD | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 540µH | Quick Connect |
|
AMI-M11A-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
2,891 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 1.76mH | Quick Connect |
|
|
8-6609089-0LINE FILTER 250VAC 16A CHASS MNT |
1,929 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50 ~ 60Hz | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Chassis Mount | - | Wire Leads |
|
AP-01LINE FILTER 110V/250VAC 1A TH |
3,971 |
|
Datasheet |
AP | Box | Obsolete | Single Phase | Single Stage | 110V, 250V | - | - | - | 1 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Through Hole | - | PC Pins |
|
|
AP-03LINE FILTER 110V/250VAC 3A TH |
1,068 |
|
Datasheet |
AP | Box | Obsolete | Single Phase | Single Stage | 110V, 250V | - | - | - | 3 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Through Hole | - | PC Pins |
|
|
AMI-B11B-13-1-BLINE FILTER 250VAC 1A TH |
4,428 |
|
Datasheet |
AMI-B11B | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 1 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Through Hole | 10mH | PC Pins |
|
|
7-6609089-6LINE FILTER 250VAC 16A CHASS MNT |
1,935 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50 ~ 60Hz | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Chassis Mount | - | Wire Leads |
|
|
AMI-M11A-1-2-BLINE FILTER 250VAC 2A CHASS MNT |
3,391 |
|
Datasheet |
AMI-M11A | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 2 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 539µH | Quick Connect |
|
|
10GENW3ESLINE FILTER 115/250VAC PANEL MNT |
2,152 |
|
Datasheet |
GE | Bulk | Active | Single Phase | Single Stage | 115V, 250V | - | - | - | - | 50Hz ~ 60Hz | General Purpose | CSA, SEMKO, UR, VDE | - | Panel Mount | 200µH | IEC 320-C14, Wire Leads |
|

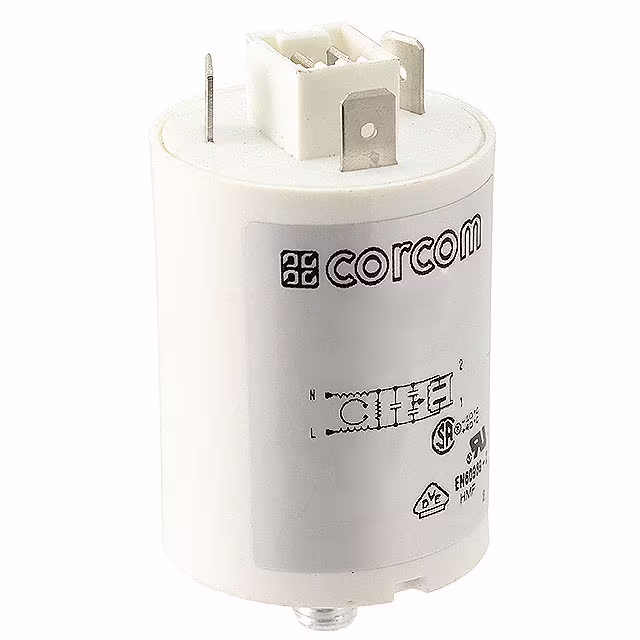

4-1609090-3LINE FILTER 250VAC 16A CHASS MNT |
3,587 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | 2mH | Quick Connect, Threaded Post (M8) |
|
4-1609090-1LINE FILTER 250VAC 16A CHASS MNT |
2,479 |
|
Datasheet |
WG | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 16 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | 500µH | Quick Connect, Threaded Post (M8) |
