| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Filter Type | Configuration | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Voltage - Rated DC | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Style | Inductance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMI-M12S-7M-5-B-2LINE FILTER 250VAC 5A CHASS MNT |
4,235 |
|
Datasheet |
AMI-M12S | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 5 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 990µH | IEC 320-C14, Quick Connect |
|
|
AMI-M11P-1-10-B-1LINE FILTER 250VAC 10A CHASS MNT |
2,397 |
|
Datasheet |
AMI-M11P | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7.13mH | Quick Connect |
|
|
FLLE2006AQDDLINE FILTER 300VAC/VDC 6A CHASS |
2,283 |
|
Datasheet |
FLLE2-Q | Bulk | Last Time Buy | Single Phase | Single Stage | 300V | - | - | 300V | 6 A | 50/60Hz | General Purpose | ENEC, UR | -25°C ~ 100°C | Chassis Mount | 1mH | Wire Leads |
|
|
AMI-M12R-3-10-B-2LINE FILTER 250VAC 10A CHASS MNT |
3,226 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 990µH | Wire Leads |
|
FN2310X-6-06LINE FILTER 250VAC 6A CHASS MNT |
4,278 |
|
Datasheet |
FN 2310 | Tray | Obsolete | Single Phase | Single Stage | 250V | - | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | 19.3mH | Quick Connect |
|
|
5500.2630.04LINE FILTER 125V/250VAC 1A CHASS |
2,713 |
|
Datasheet |
FMAB NEO | Bulk | Active | Single Phase | Single Stage | 125V, 250V | - | - | - | 1 A | 50 ~ 60Hz | Medical | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | - | Quick Connect |
|
|
AMI-M12S-7M-10-B-1LINE FILTER 250VAC 10A CHASS MNT |
3,732 |
|
Datasheet |
AMI-M12S | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 990µH | IEC 320-C14, Quick Connect |
|
6609012-6LINE FILTER 250VAC 10A CHASS MNT |
1,524 |
|
Datasheet |
H | Bulk | Active | Single Phase | Single Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | 360µH | Wire Leads |
|
|
AMI-M12R-1-10-B-2LINE FILTER 250VAC 10A CHASS MNT |
3,421 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 990µH | Quick Connect |
|

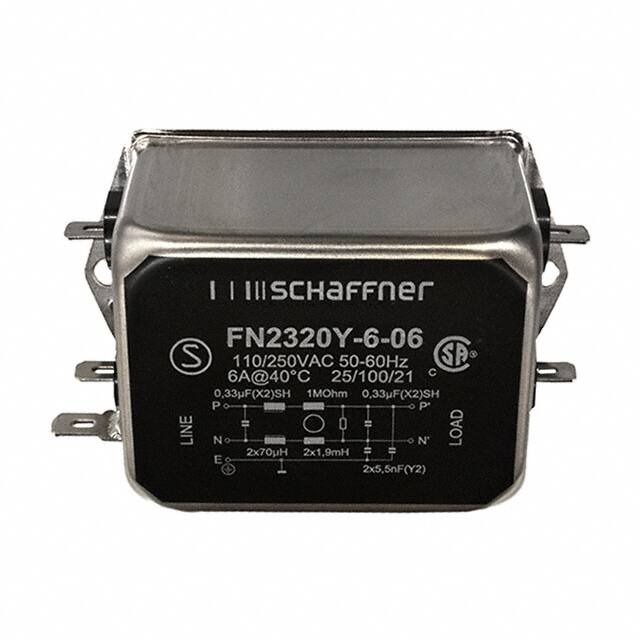

FN2320Y-6-06LINE FILTER 250VAC 6A CHASS MNT |
3,536 |
|
Datasheet |
FN 2320 | Tray | Obsolete | Single Phase | Two Stage | 250V | - | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, SEMKO | -25°C ~ 100°C | Chassis Mount | 1.9mH | Quick Connect |
|
|
AMI-M12S-7M-3-B-2LINE FILTER 250VAC 3A CHASS MNT |
2,418 |
|
Datasheet |
AMI-M12S | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 3.52mH | IEC 320-C14, Quick Connect |
|
5500.2090LINE FILTER 125V/250VAC 2A CHASS |
4,483 |
|
Datasheet |
FMLB-41 | Bulk | Active | Single Phase | Single Stage | 125V, 250V | - | - | - | 2 A | 50/60Hz | Medical | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | 4mH | Quick Connect |
|
05DRCW5LINE FILTER 115V/250VAC 5A CHASS |
2,160 |
|
Datasheet |
DR | Box | Active | Single Phase | Two Stage | 115V, 250V | - | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | 1.6mH | Wire Leads |
|
|
AMI-M11N-1-20-BLINE FILTER 250VAC 20A CHASS MNT |
4,354 |
|
Datasheet |
AMI-M11N | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 4.55mH | Quick Connect |
|
VFM-03-TLINE FILTER 80VDC 3A CHASS MNT |
2,288 |
|
Datasheet |
VFM-03 | Tray | Not For New Designs | DC | Single Stage | - | - | - | 80V | 3 A | - | General Purpose | - | -40°C ~ 85°C | Chassis Mount | - | Terminal Block |
|
|
FN2010A-12-06LINE FILTER 250VAC/VDC 12A CHASS |
1,378 |
|
Datasheet |
FN 2010 | Bulk | Active | Single Phase | Single Stage | 250V | - | - | 250V | 12 A | DC ~ 400Hz | Safety | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | 700µH | Quick Connect |
|

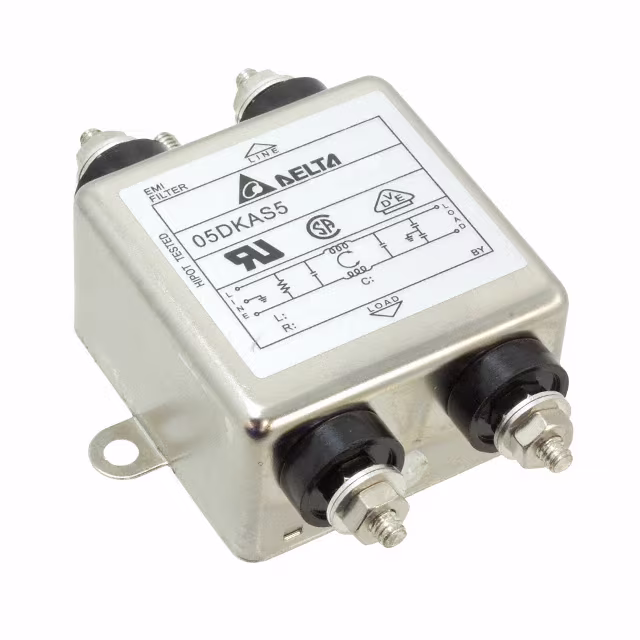

05DKAS5LINE FILTER 115V/250VAC 5A CHASS |
3,029 |
|
Datasheet |
DK | Bulk | Active | Single Phase | Single Stage | 115V, 250V | - | - | - | 5 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | 2.7mH | Threaded Post (8-32) |
|
03DKAG5LINE FILTER 115V/250VAC 3A CHASS |
2,012 |
|
Datasheet |
DK | Box | Active | Single Phase | Single Stage | 115V, 250V | - | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | 3.2mH | Quick Connect |
|

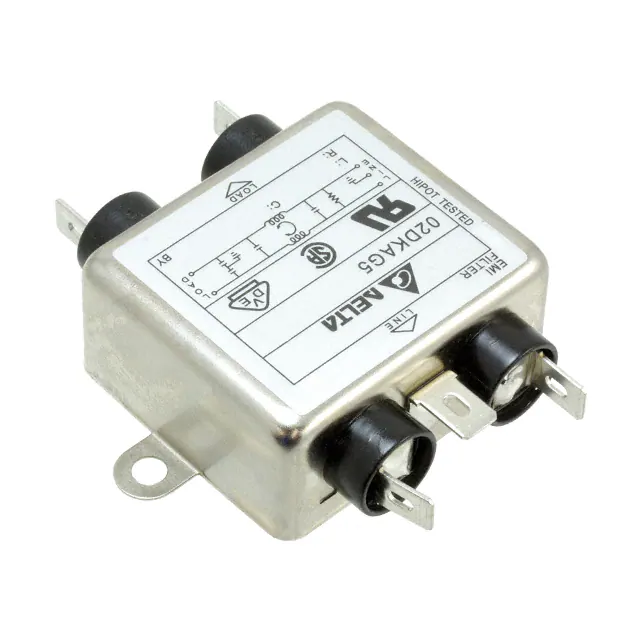

02DKAG5LINE FILTER 115V/250VAC 2A CHASS |
3,971 |
|
Datasheet |
DK | Bulk | Active | Single Phase | Single Stage | 115V, 250V | - | - | - | 2 A | 50/60Hz | General Purpose | CSA, UR, VDE | -25°C ~ 100°C | Chassis Mount | 2.1mH | Quick Connect |
|
|
AMI-M11K-7-3-B-2LINE FILTER 250VAC 3A CHASS MNT |
4,822 |
|
Datasheet |
AMI-M11K | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 1.76mH | IEC 320-C14, Quick Connect |
