| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Battery Chemistry | Number of Cells | Programmable Features | Fault Protection | Charge Current - Max | Current - Charging | Battery Pack Voltage | Voltage - Supply (Max) | Interface | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BQ2004PNIC BATT CONTRL MULTI-CHEM 16DIP |
2,659 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Active | Multi-Chemistry | - | Voltage | - | - | Constant, Pulsed | - | 5.5V | - | -20°C ~ 70°C (TA) | - | - | 16-PDIP | Through Hole |
|

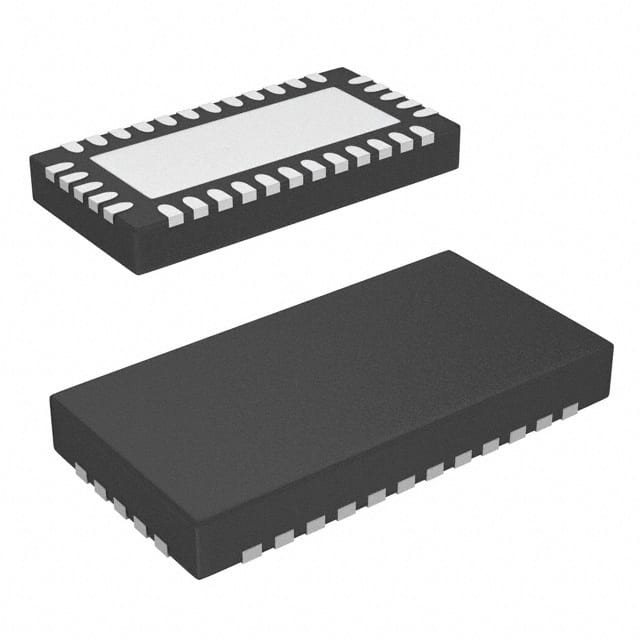

BQ24765RUVTIC BAT CHG MULTCHEM 2-4CL 34VQFN |
981 |
|
Datasheet |
- | 34-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Multi-Chemistry | 2 ~ 4 | - | Over Current, Over Temperature | 8.064A | Constant - Programmable | 19.2V (Max) | 24V | I2C | -40°C ~ 125°C (TJ) | - | - | 34-VQFN (7x3.5) | Surface Mount |
|
MAX17015ETP+IC BATT CHG MULTI-CHEM 20TQFN |
3,387 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tube | Obsolete | Multi-Chemistry | - | - | Over Current, Short Circuit | 5A | Constant - Programmable | 2.1V | 26V | - | -40°C ~ 85°C (TA) | - | - | 20-TQFN (4x4) | Surface Mount |
|
|
BQ2004EPNIC BATT CONTRL MULTI-CHEM 16DIP |
3,960 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Active | Multi-Chemistry | - | Voltage | - | - | Constant, Pulsed | - | 5.5V | - | -20°C ~ 70°C (TA) | - | - | 16-PDIP | Through Hole |
|
|
BQ2004HPNIC BATT CONTRL MULTI-CHEM 16DIP |
4,637 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Active | Multi-Chemistry | - | Voltage | - | - | Constant, Pulsed | - | 5.5V | - | -20°C ~ 70°C (TA) | - | - | 16-PDIP | Through Hole |
|
|
MAX17005AETP+IC BAT CHG MULTCHEM 3-4CL 20TQFN |
2,307 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tray | Obsolete | Multi-Chemistry | 3 ~ 4 | - | Over Current, Short Circuit | 5A | Constant - Programmable | 16.8V | 26V | - | -40°C ~ 85°C (TA) | - | - | 20-TQFN (4x4) | Surface Mount |
|
|
MAX17005ETP+IC BAT CHG MULTCHEM 3-4CL 20TQFN |
4,622 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tube | Obsolete | Multi-Chemistry | 3 ~ 4 | - | Over Current, Short Circuit | 5A | Constant - Programmable | 16.8V | 26V | - | -40°C ~ 85°C (TA) | - | - | 20-TQFN (4x4) | Surface Mount |
|
|
MAX17015AETP+IC BATT CHG MULTI-CHEM 20TQFN |
3,191 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tray | Obsolete | Multi-Chemistry | - | - | Over Current, Short Circuit | 5A | Constant - Programmable | 2.1V | 26V | - | -40°C ~ 85°C (TA) | - | - | 20-TQFN (4x4) | Surface Mount |
|
MAX1535BETJ+IC BATT CHARGER LEV 2 SMBUS |
827 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Active | Multi-Chemistry | 2 ~ 4 | Timer | - | 8.87A | Constant | 16.8V | 28V | I2C, SMBus | -40°C ~ 85°C (TA) | - | - | 32-TQFN-EP (5x5) | Surface Mount |
|
|
MAX1535DETJ+IC BATT CHG LEV 2 SMBUS |
294 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Bulk | Active | Multi-Chemistry | 2 ~ 4 | Timer | - | 8.87A | Constant | 19.2V | 28V | I2C, SMBus | -40°C ~ 85°C (TA) | - | - | 32-TQFN-EP (5x5) | Surface Mount |
|
|
MAX17005ETP+TIC BAT CHG MULTCHEM 3-4CL 20TQFN |
1,092 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Multi-Chemistry | 3 ~ 4 | - | Over Current, Short Circuit | 5A | Constant - Programmable | 16.8V | 26V | - | -40°C ~ 85°C (TA) | - | - | 20-TQFN (4x4) | Surface Mount |
|
|
R2J20053NS#W0IC BATT CHG PWR MGMT USB |
5,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BQ2054SNTRIC BATT FAST CHG LI-ION 16SOIC |
2,884 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Lithium Ion | - | - | Over Current, Over Voltage | - | Constant | - | 5.5V | - | -20°C ~ 70°C (TA) | - | - | 16-SOIC | Surface Mount |
|
ISL9519HRTZ-TIC BATT CHG LI-ION 1-3CEL 28TQFN |
1,843 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Lithium Ion | 1 ~ 3 | - | Short Circuit | 8A | - | - | 22V | I2C | -10°C ~ 100°C (TA) | - | - | 28-TQFN (4x4) | Surface Mount |
|
BQ24705RGETIC BAT CHG MULTCHEM 2-4CL 24VQFN |
2,144 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Multi-Chemistry | 2 ~ 4 | - | Over Voltage | 8A | Constant - Programmable | 18V (Max) | 24V | - | -40°C ~ 125°C (TJ) | - | - | 24-VQFN (4x4) | Surface Mount |
|
|
ISL9538BHRTZ-TIC BATT CHG LI-ION 2-4CEL 32TQFN |
5,866 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Lithium Ion/Polymer | 2 ~ 4 | Current | Over Current, Over Temperature | - | Constant - Programmable | 2.4V ~ 18.304V | 23.4V | I2C, SMBus | - | - | - | 32-TQFN (4x4) | Surface Mount |
|
BQ24725RGRRIC BATT CHG LI-ION 2-4CEL 20VQFN |
1,071 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Lithium Ion | 2 ~ 4 | - | Over Current, Over Voltage, Short Circuit | - | Constant - Programmable | 19.2V (Max) | 24V | I2C | 0°C ~ 125°C (TJ) | - | - | 20-VQFN (3.5x3.5) | Surface Mount |
|
BQ24273YFFRIC BAT CHG MULT-CHEM 1CL 49DSBGA |
1,922 |
|
Datasheet |
- | 49-UFBGA, DSBGA | Tape & Reel (TR) | Active | Multi-Chemistry | 1 | - | Over Temperature, Over Voltage, Short Circuit | 2.5A | Constant - Programmable | 4.44V (Max) | 10V | I2C | -40°C ~ 85°C (TA) | - | - | 49-DSBGA (2.8x2.8) | Surface Mount |
|
BQ24150YFFRIC BATT CHG LI-ION 1CELL 20DSBGA |
1,397 |
|
Datasheet |
- | 20-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Lithium Ion/Polymer | 1 | Current, Timer, Voltage | Over Temperature, Over Voltage | 1.25A | Constant | 4.44V (Max) | 6V | I2C | -40°C ~ 85°C (TA) | - | - | 20-DSBGA | Surface Mount |
|
|
BQ24151YFFRIC BATT CHG LI-ION 1CELL 20DSBGA |
4,221 |
|
Datasheet |
- | 20-UFBGA, DSBGA | Tape & Reel (TR) | Not For New Designs | Lithium Ion/Polymer | 1 | Current, Timer, Voltage | Over Temperature, Over Voltage | 1.25A | Constant | 4.44V (Max) | 6V | I2C | -40°C ~ 85°C (TA) | - | - | 20-DSBGA | Surface Mount |
