| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | FET Type | Internal Switch(s) | Delay Time - ON | Delay Time - OFF | Ratio - Input:Output | Current - Output (Max) | Current - Supply | Voltage - Supply | Applications | Operating Temperature | Supplier Device Package | Grade | Mounting Style | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC4415EMSE#PBFIC OR CTRLR SRC SELECT 16MSOP |
4,336 |
|
Datasheet |
PowerPath™ | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-MSOP-EP | - | Surface Mount | - |
|

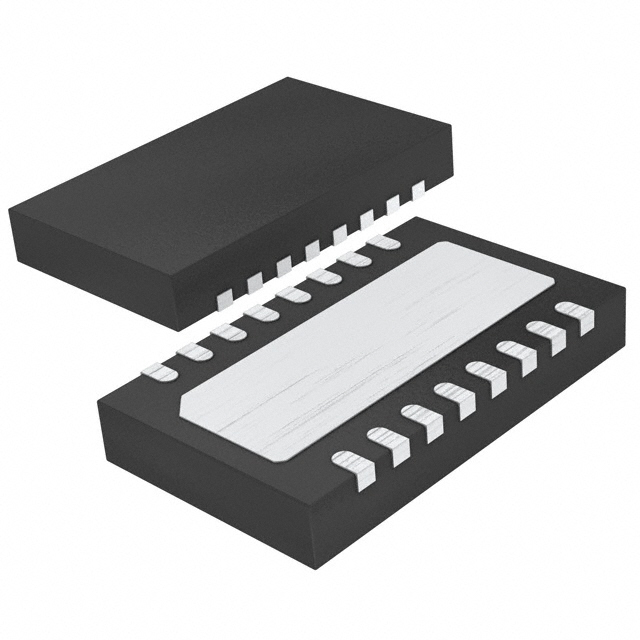

LTC4415EDHC#PBFIC OR CTRLR SRC SELECT 16DFN |
2,875 |
|
Datasheet |
PowerPath™ | 16-WFDFN Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-DFN (5x3) | - | Surface Mount | - |
|
LTC4355HMS#TRPBFIC OR CTRLR SRC SELECT 16MSOP |
2,080 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | No | - | 300 ns | 2:1 | - | 2 mA | 48V, -48V | -48V Dist Power Systems, AdvancedTCA® Systems | -40°C ~ 125°C | 16-MSOP | - | Surface Mount | - |
|
LTC4352HDD#PBFIC OR CTRLR N+1 12DFN |
636 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tube | Active | N+1 ORing Controller | N-Channel | No | 250 ns | 200 ns | N:1 | - | 1.4 mA | 2.9V ~ 18V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 150°C | 12-DFN (3x3) | - | Surface Mount | - |
|
LTC4376HDHD#TRPBF7A IDEAL DIODE WITH REVERSE INPU |
1,511 |
|
Datasheet |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Current Sharing Controller | N-Channel | Yes | - | 300 ns | 1:1 | 7A | 150 µA | 4V ~ 40V | Portable Battery, Redundant Power Supplies, Computer Systems | -40°C ~ 125°C | 16-DFN (5x4) | Automotive | Surface Mount | - |
|
|
LTC4376HDHD#PBF7A IDEAL DIODE WITH REVERSE INPU |
865 |
|
Datasheet |
- | 16-WFDFN Exposed Pad | Tube | Active | Current Sharing Controller | N-Channel | Yes | - | 300 ns | 1:1 | 7A | 150 µA | 4V ~ 40V | Portable Battery, Redundant Power Supplies, Computer Systems | -40°C ~ 125°C | 16-DFN (5x4) | Automotive | Surface Mount | - |
|
|
LTC4415IDHC#TRPBFIC OR CTRLR SRC SELECT 16DFN |
5,442 |
|
Datasheet |
PowerPath™ | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-DFN (5x3) | - | Surface Mount | - |
|
|
LTC4415IMSE#TRPBFIC OR CTRLR SRC SELECT 16MSOP |
5,270 |
|
Datasheet |
PowerPath™ | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-MSOP-EP | - | Surface Mount | - |
|
|
LTC4415IMSE#PBFIC OR CTRLR SRC SELECT 16MSOP |
2,236 |
|
Datasheet |
PowerPath™ | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-MSOP-EP | - | Surface Mount | - |
|
|
LTC4415IDHC#PBFIC OR CTRLR SRC SELECT 16DFN |
496 |
|
Datasheet |
PowerPath™ | 16-WFDFN Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | Yes | - | - | 2:2 | 4A | 44 µA | 1.7V ~ 5.5V | Battery Backup, High Current Switch | -40°C ~ 125°C | 16-DFN (5x3) | - | Surface Mount | - |
|
LT4320HDD#TRPBFIC OR CTRLR BRIDGE RECT 8DFN |
4,562 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | No | - | - | Bridge (1) | - | 1.5 mA | 9V ~ 72V | General Purpose | -40°C ~ 125°C | 8-DFN (3x3) | - | Surface Mount | - |
|
LT4320HMSE#PBFIC OR CTRLR BRIDGE RECT 12MSOP |
116 |
|
Datasheet |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Bridge Rectifier | N-Channel | No | - | - | Bridge (1) | - | 1.5 mA | 9V ~ 72V | General Purpose | -40°C ~ 125°C | 12-MSOP-EP | - | Surface Mount | - |
|
LTC4417IUF#PBFIC OR CTRLR SRC SELECT 24QFN |
5,638 |
|
Datasheet |
PowerPath™ | 24-WFQFN Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | No | 1.4 µs | 700 ns | 3:1 | - | 28 µA | 2.5V ~ 36V | Battery Backup, Handheld/Mobile Devices | -40°C ~ 85°C | 24-QFN (4x4) | - | Surface Mount | - |
|
|
LTC4417IUF#TRPBFIC OR CTRLR SRC SELECT 24QFN |
1,502 |
|
Datasheet |
PowerPath™ | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | No | 1.4 µs | 700 ns | 3:1 | - | 28 µA | 2.5V ~ 36V | Battery Backup, Handheld/Mobile Devices | -40°C ~ 85°C | 24-QFN (4x4) | - | Surface Mount | - |
|
LTC4417IGN#TRPBFIC OR CTRLR SRC SELECT 24SSOP |
3,691 |
|
Datasheet |
PowerPath™ | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | No | 1.4 µs | 700 ns | 3:1 | - | 28 µA | 2.5V ~ 36V | Battery Backup, Handheld/Mobile Devices | -40°C ~ 85°C | 24-SSOP | - | Surface Mount | - |
|
LTC4353IDE#PBFIC OR CTRLR LOAD SHARE 16DFN |
2,477 |
|
Datasheet |
- | 16-WFDFN Exposed Pad | Tube | Active | Current Sharing Controller | N-Channel | No | 400 ns | 300 ns | 2:2 | - | 1.5 mA | 2.9V ~ 18V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 85°C | 16-DFN (4x3) | - | Surface Mount | - |
|
|
LTC4353IDE#TRPBFIC OR CTRLR N-CH 2CH 16DFN |
177 |
|
Datasheet |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Current Sharing Controller | N-Channel | No | 400 ns | 300 ns | 2:2 | - | 1.5 mA | 2.9V ~ 18V | Redundant Power Supplies, Telecom Infrastructure | -40°C ~ 85°C | 16-DFN (4x3) | - | Surface Mount | - |
|
|
LTC4417HUF#PBFIC OR CTRLR SRC SELECT 24QFN |
241 |
|
Datasheet |
PowerPath™ | 24-WFQFN Exposed Pad | Tube | Active | Source Selector Switch | P-Channel | No | 1.4 µs | 700 ns | 3:1 | - | 28 µA | 2.5V ~ 36V | Battery Backup, Handheld/Mobile Devices | -40°C ~ 125°C | 24-QFN (4x4) | - | Surface Mount | - |
|
LTC4421IUHE#PBFHP PRIORTIZED POWERPATH CONTROLL |
106 |
|
Datasheet |
- | 36-WFQFN Exposed Pad | Tube | Active | N+1 ORing Controller | N-Channel | No | 1.3 µs | 1.4 µs | 1:1 | - | 530 µA | 3V ~ 36V | Battery Backup, Industrial | -40°C ~ 85°C (TA) | 36-QFN (5x6) | - | Surface Mount | - |
|
|
LTC4421HUHE#PBFHP PRIORTIZED POWERPATH CONTROLL |
1,446 |
|
Datasheet |
- | 36-WFQFN Exposed Pad | Tube | Active | N+1 ORing Controller | N-Channel | No | 1.3 µs | 1.4 µs | 1:1 | - | 530 µA | 3V ~ 36V | Battery Backup, Industrial | -40°C ~ 125°C (TA) | 36-QFN (5x6) | - | Surface Mount | - |
