| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Reference Type | Output Type | Voltage - Output (Max) | Current - Output | Tolerance | Voltage - Output (Min/Fixed) | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Qualification | Current - Cathode | Grade | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_bentlead.jpg)
|
TL1431CLPRE3IC VREF SHUNT ADJ 0.4% TO92-3 |
4,000 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±0.4% | 2.5V | - | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|

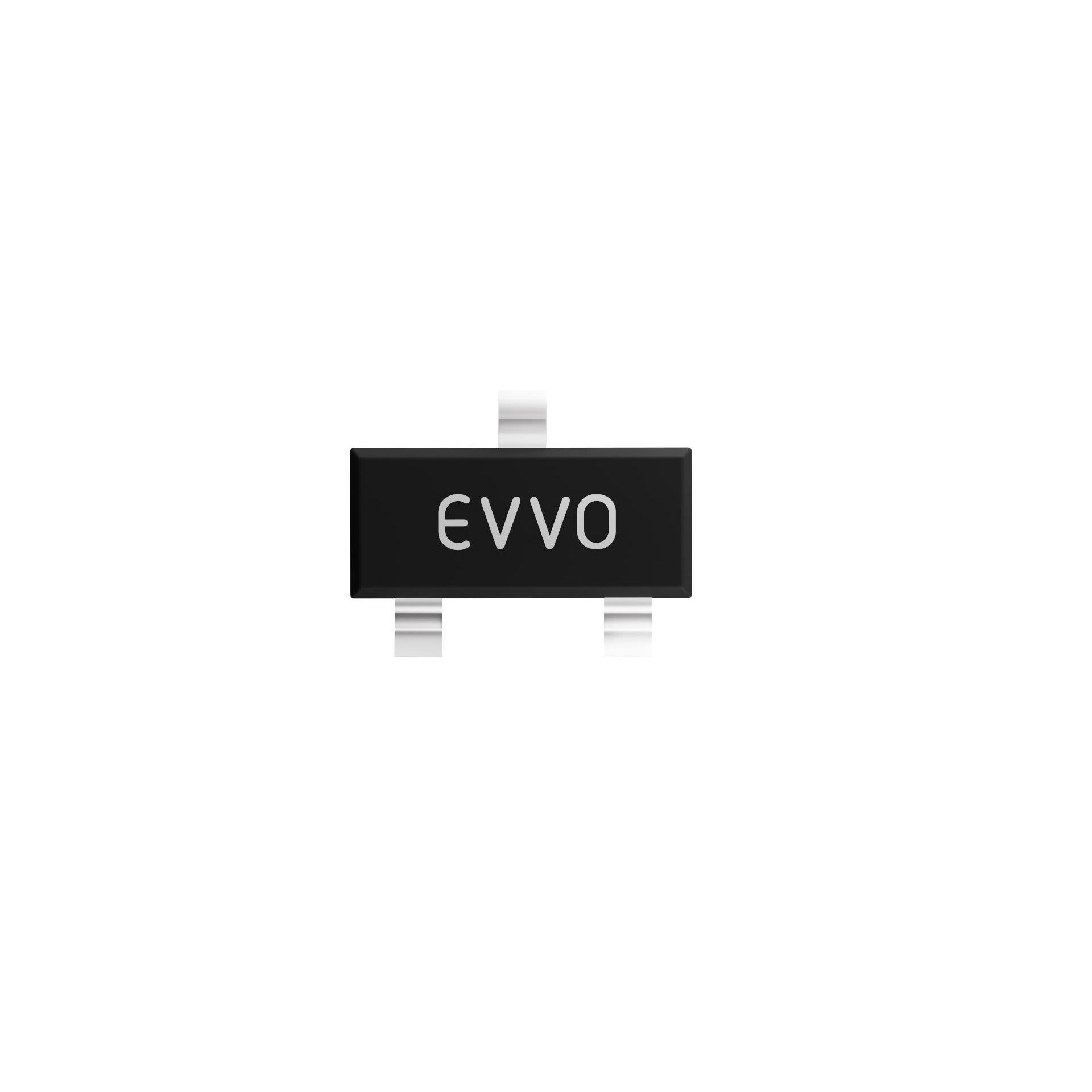

TL432IC VREF SHUNT ADJ 1% SOT23-3 |
2,885 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | Shunt | Adjustable | 18 V | 100 mA | ±1% | 1.24V | - | - | - | - | - | - | 80 µA | - | -40°C ~ 125°C (TA) | - | - |
|
LM4040CIM7-2.0/NOPBIC VREF SHUNT 0.5% SC70-5 |
2,000 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Obsolete | Shunt | Fixed | - | 15 mA | ±0.5% | 2.048V | 100ppm/°C | - | 35µVrms | - | - | - | 65 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SC-70-5 |
|
TL431CDIC VREF SHUNT ADJ 2.21% 8SOP |
36,319 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.21% | 2.495V | 50ppm/°C Typical | - | - | - | - | - | 1 mA | - | -25°C ~ 85°C (TA) | Surface Mount | 8-SOP |
|
FAN4050CIS333XVOLTAGE REFERENCE |
30,409 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | - | 15 mA | ±0.5% | 3.3V | 50ppm/°C | - | 70µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT23-3 (TO-236) |
|
TL431ACDIC VREF SHUNT ADJ 1% 8SOP |
1,464 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±1% | 2.495V | 50ppm/°C Typical | - | - | - | - | - | 1 mA | - | -25°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
TL431BCPWRIC VREF SHUNT ADJ 0.5% 8TSSOP |
4,000 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±0.5% | 2.495V | - | - | - | - | - | - | 600 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-TSSOP |
|
|
TL431CDTL431 - ADJUSTABLE PRECISION SHU |
21,592 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Adjustable | 36 V | 100 mA | ±2.21% | 2.495V | 50ppm/°C Typical | - | - | - | - | - | 1 mA | - | -25°C ~ 85°C (TA) | Surface Mount | 8-SOP |
|
TLVH431ACPKG3IC VREF SHUNT PREC ADJ SOT-89-3 |
4,000 |
|
Datasheet |
TO-243AA | - | Bulk | Active | Shunt | Adjustable | 18 V | 70 mA | ±1% | 1.24V | - | - | - | - | - | - | 100 µA | - | - | Surface Mount | SOT-89-3 |
|
LM4041DIM7X-ADJIC VREF SHUNT ADJ 1% SC70-5 |
3,000 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Active | Shunt | Adjustable | 10 V | 12 mA | ±1% | 1.233V | 150ppm/°C | - | 20µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SC-70-5 |
|
|
LM4041DIM7X-1.2IC VREF SHUNT 1% SC70-5 |
2,945 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Bulk | Active | Shunt | Fixed | - | 12 mA | ±1% | 1.225V | 150ppm/°C | - | 20µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SC-70-5 |
|
|
TL1431CPWRIC VREF SHUNT ADJ 0.4% 8TSSOP |
2,315 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±0.4% | 2.5V | - | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-TSSOP |
|
|
TLVH432AIPKG3IC VREF SHUNT PREC ADJ SOT-89-3 |
2,000 |
|
Datasheet |
TO-243AA | - | Bulk | Active | Shunt | Adjustable | 18 V | 70 mA | ±1% | 1.24V | - | - | - | - | - | - | 100 µA | - | - | Surface Mount | SOT-89-3 |
,TO-226_straightlead.jpg)
|
TL431CLPIC VREF SHUNT ADJ 2.2% TO92-3 |
4,312 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.2% | 2.495V | 50ppm/°C Typical | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92 (TO-226) |
|
|
TL431BCPSRIC VREF SHUNT ADJ 0.5% 8SO |
4,138 |
|
Datasheet |
8-SOIC (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±0.5% | 2.495V | - | - | - | - | - | - | 600 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-SO |
|

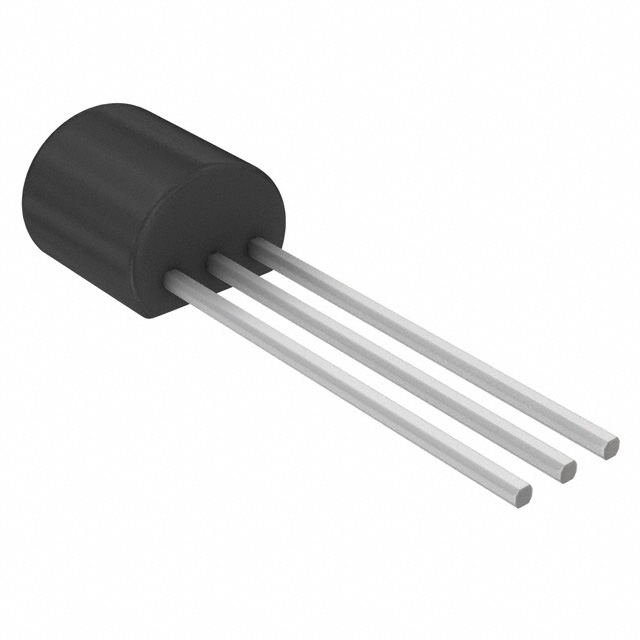

LM4040C10ILPE3IC VREF SHUNT 10V TO92-3 |
1,800 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Fixed | - | 15 mA | ±0.5% | 10V | 100ppm/°C | - | 180µVrms | - | - | - | 125 µA | - | -40°C ~ 85°C (TA) | Through Hole | TO-92-3 |
|
LM4041EIM3X-1.2IC VREF SHUNT 2% SOT23-3 |
1,350 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | - | 12 mA | ±2% | 1.225V | 150ppm/°C | - | 20µVrms | - | - | - | 65 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM336MX-5.0IC VREF SHUNT 2% 8SOIC |
4,165 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 10 mA | ±2% | 5V | - | - | - | - | - | - | 600 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-SOIC |
|
|
LM4040DIM3X-10-NSTWO TERMINAL VOLTAGE REFERENCE, |
12,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | - | 15 mA | ±1% | 10V | 150ppm/°C | - | 180µVrms | - | - | - | 110 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
TL431BIDBZRG4IC VREF SHUNT ADJ 0.5% SOT23-3 |
11,348 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Adjustable | 36 V | 100 mA | ±0.5% | 2.495V | - | - | - | - | - | - | 700 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
