| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Reference Type | Output Type | Voltage - Output (Max) | Current - Output | Tolerance | Voltage - Output (Min/Fixed) | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Qualification | Current - Cathode | Grade | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

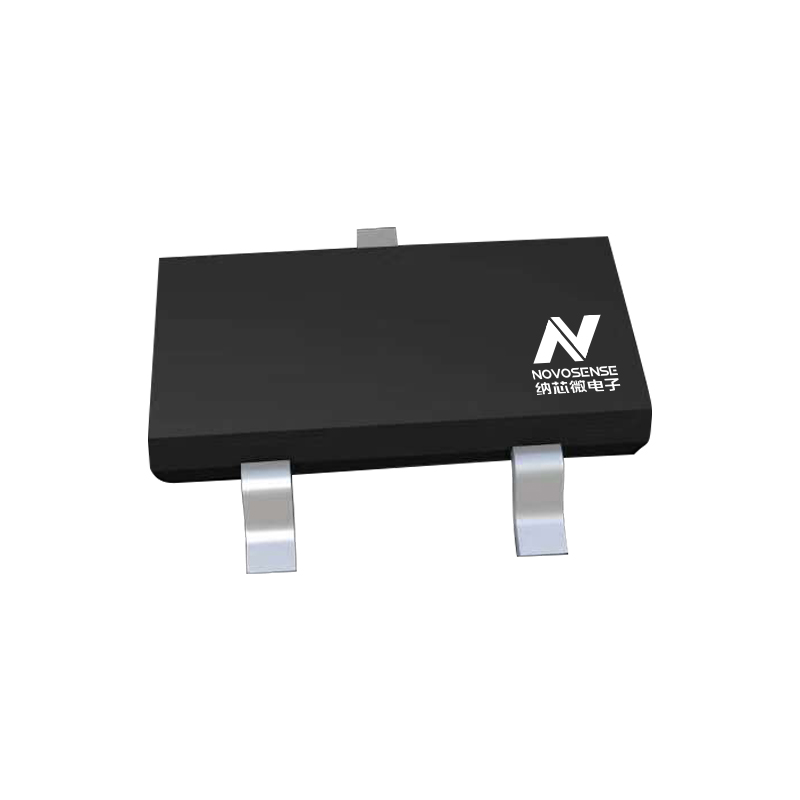

NSREF3133-DSTR0.2% ACCURACY 15PPM 3.3V REF |
2,980 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Cut Tape (CT) | Active | Series | Fixed | 3.006 V | 10 mA | - | 3.3V | 15ppm/°C | 31µVp-p | - | 1.8V ~ 5.5V | - | - | 145 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
|
NSREF3125-DSTR0.2% ACCURACY 15PPM 2.5V REF |
5,903 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Tape & Reel (TR) | Active | Series | Fixed | 2.502 V | 10 mA | - | 2.5V | 15ppm/°C | 22µVp-p | - | 1.8V ~ 5.5V | - | - | 140 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
|
NSREF3140-DSTR0.2% ACCURACY 15PPM 4V REF |
3,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Tape & Reel (TR) | Active | Series | Fixed | 4.104 V | 10 mA | - | 4.096V | 15ppm/°C | 33µVp-p | - | 1.8V ~ 5.5V | - | - | 145 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
|
NSREF3130-DSTR0.2% ACCURACY 15PPM 3V REF |
3,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Tape & Reel (TR) | Active | Series | Fixed | 2.505 V | 10 mA | - | 3V | 15ppm/°C | 28µVp-p | - | 1.8V ~ 5.5V | - | - | 145 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
|
NSREF3120-DSTR0.2% ACCURACY 15PPM 2V REF |
2,996 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Cut Tape (CT) | Active | Series | Fixed | 2.052 V | 10 mA | - | 2.048V | 15ppm/°C | 20µVp-p | - | 1.8V ~ 5.5V | - | - | 140 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
|
NSREF3112-DSTR0.2% ACCURACY 15PPM 1.2V REF |
2,988 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | NSREF31xx | Cut Tape (CT) | Active | Series | Fixed | 1.2525 V | 10 mA | - | 1.25V | 15ppm/°C | 9µVp-p | - | 1.8V ~ 5.5V | - | - | 135 µA | - | -40°C ~ 145°C (TA) | Surface Mount | SOT-23-3L |
|
ADR439ARZ-REEL7IC VREF SERIES 0.12% 8SOIC |
2,123 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | XFET® | Tape & Reel (TR) | Obsolete | Series | Fixed | - | 30 mA | ±0.12% | 4.5V | 10ppm/°C | 7.5µVp-p | - | 6.5V ~ 18V | 800µA | - | - | - | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC |
|
ADR292GT9IC VREF SERIES 0.15% TO92-3 |
255 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | XFET® | Bulk | Active | Series | Fixed | - | 5 mA | ±0.15% | 4.096V | 25ppm/°C | 12µVp-p | - | 5V ~ 15V | 18µA | - | - | - | -40°C ~ 125°C (TA) | Through Hole | TO-92-3 |
|
MAX6068AEURVOLTAGE REFERENCE |
483 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | - | 5 mA | ±0.17% | 1.8V | 20ppm/°C | 22µVp-p | 25µVrms | 2.5V ~ 12.6V | 125µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
REF01HJ10V VOLTAGE REFERENCE |
40,221 |
|
Datasheet |
TO-99-8 Metal Can | REF01 | Bulk | Active | Series | Fixed | - | 10 mA | ±0.5% | 10V | 25ppm/°C | 35µVp-p | - | 12V ~ 36V | 1.4mA | - | - | - | -40°C ~ 85°C (TA) | Through Hole | TO-99-8 |
|
MAX6163AESAIC VREF SERIES 0.07% 8SOIC |
2,912 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | - | 5 mA | ±0.07% | 3V | 5ppm/°C | 35µVp-p | 40µVrms | 3.2V ~ 12.6V | 120µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
|
MAX6167AESAIC VREF SERIES 0.04% 8SOIC |
3,191 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | - | 5 mA | ±0.04% | 4.5V | 5ppm/°C | 55µVp-p | 55µVrms | 4.7V ~ 12.6V | 120µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
|
MAX6195AESAIC VREF SERIES 0.04% 8SOIC |
2,218 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | - | 500 µA | ±0.04% | 5V | 5ppm/°C | 120µVp-p | 240µVrms | 5.2V ~ 12.6V | 35µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
|
MAX6198AESAIC VREF SERIES 0.05% 8SOIC |
4,517 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | - | 500 µA | ±0.05% | 4.096V | 5ppm/°C | 100µVp-p | 200µVrms | 4.296V ~ 12.6V | 35µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
LM285AM-2.5VOLTAGE REFERENCE |
2,843 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | - | 20 mA | ±0.8% | 2.5V | 150ppm/°C | - | 120µVrms | - | - | - | 30 µA | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
MAX6191AESAIC VREF SERIES 0.1% 8SOIC |
2,934 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | - | 500 µA | ±0.1% | 2.048V | 5ppm/°C | 40µVp-p | 105µVrms | 2.5V ~ 12.6V | 35µA | - | - | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
LM285AYM-2.5VOLTAGE REFERENCE |
615 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | - | 20 mA | ±1.5% | 2.5V | ±20ppm/°C Typical | - | 120µVrms | - | - | - | 20 µA | - | 0°C ~ 85°C | Surface Mount | 8-SOIC |
|
LM285Z-2.5#TRPBFIC VREF SHUNT 1.5% TO92-3 |
2,200 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Active | Shunt | Fixed | - | 20 mA | ±1.5% | 2.5V | 20ppm/°C Typical | - | 120µVrms | - | - | - | 20 µA | - | -40°C ~ 85°C (TA) | Through Hole | TO-92-3 |
|
MAX6241BEPAIC VREF SERIES 0.1% 8DIP |
4,120 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series, Buried Zener | Fixed | - | 15 mA | ±0.1% | 4.096V | 7ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | - | - | -40°C ~ 85°C (TA) | Through Hole | 8-PDIP |
|
LT1460JCS3-3#TRPBFIC VREF SERIES 0.4% SOT23-3 |
2,796 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | - | 40 mA | ±0.4% | 3V | 20ppm/°C | 4ppmp-p | 4ppmrms | 3.9V ~ 20V | 220µA | - | - | - | 0°C ~ 70°C (TA) | Surface Mount | SOT-23-3 |
