| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Reference Type | Output Type | Voltage - Output (Max) | Current - Output | Tolerance | Voltage - Output (Min/Fixed) | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Qualification | Current - Cathode | Grade | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL432AQDBZRG4IC VREF SHUNT ADJ 1% SOT23-3 |
4,830 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Adjustable | 36 V | 100 mA | ±1% | 2.495V | - | - | - | - | - | - | 80 µA | - | -40°C ~ 125°C (TA) | Surface Mount | SOT-23-3 |
|
LM385PW-2-5IC VREF SHUNT 3% 8TSSOP |
1,246 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tray | Obsolete | Shunt | Fixed | - | 20 mA | ±3% | 2.5V | 20ppm/°C Typical | - | 120µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-TSSOP |
|
|
LM385PWE4-2-5IC VREF SHUNT 3% 8TSSOP |
2,739 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tray | Obsolete | Shunt | Fixed | - | 20 mA | ±3% | 2.5V | 20ppm/°C Typical | - | 120µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-TSSOP |
|
LM431AIZIC VREF SHUNT ADJ 2.2% TO92-3 |
4,959 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Box | Obsolete | Shunt | Adjustable | 37 V | 100 mA | ±2.2% | 2.495V | 50ppm/°C Typical | - | - | - | - | - | 1 mA | - | -40°C ~ 85°C (TA) | Through Hole | TO-92-3 |
|
ZTL432BQFTAIC VREF SHUNT 2.5V SOT23-3 |
3,580 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 20 V | 100 mA | ±0.5% | 2.5V | - | - | - | - | - | AEC-Q100 | 80 µA | Automotive | -40°C ~ 125°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3-2.5-TRIC VREF SHUNT 1% SOT23-3 |
2,022 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Fixed | - | 15 mA | ±1% | 2.5V | 150ppm/°C | - | 35µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3-4.1-TRIC VREF SHUNT 1% SOT23-3 |
2,372 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Fixed | - | 15 mA | ±1% | 4.096V | 150ppm/°C | - | 80µVrms | - | - | - | 78 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4040DIM3-5.0-TRIC VREF SHUNT 1% SOT23-3 |
4,793 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Fixed | - | 15 mA | ±1% | 5V | 150ppm/°C | - | 80µVrms | - | - | - | 85 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4041DIM3-1.2-TRIC VREF SHUNT 1% SOT23-3 |
3,849 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Fixed | - | 12 mA | ±1% | 1.225V | 150ppm/°C | - | 20µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4041DIM3-ADJ-TRIC VREF SHUNT ADJ 1% SOT23-3 |
3,867 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Adjustable | 10 V | 12 mA | ±1% | 1.233V | 150ppm/°C | - | 20µVrms | - | - | - | 70 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|

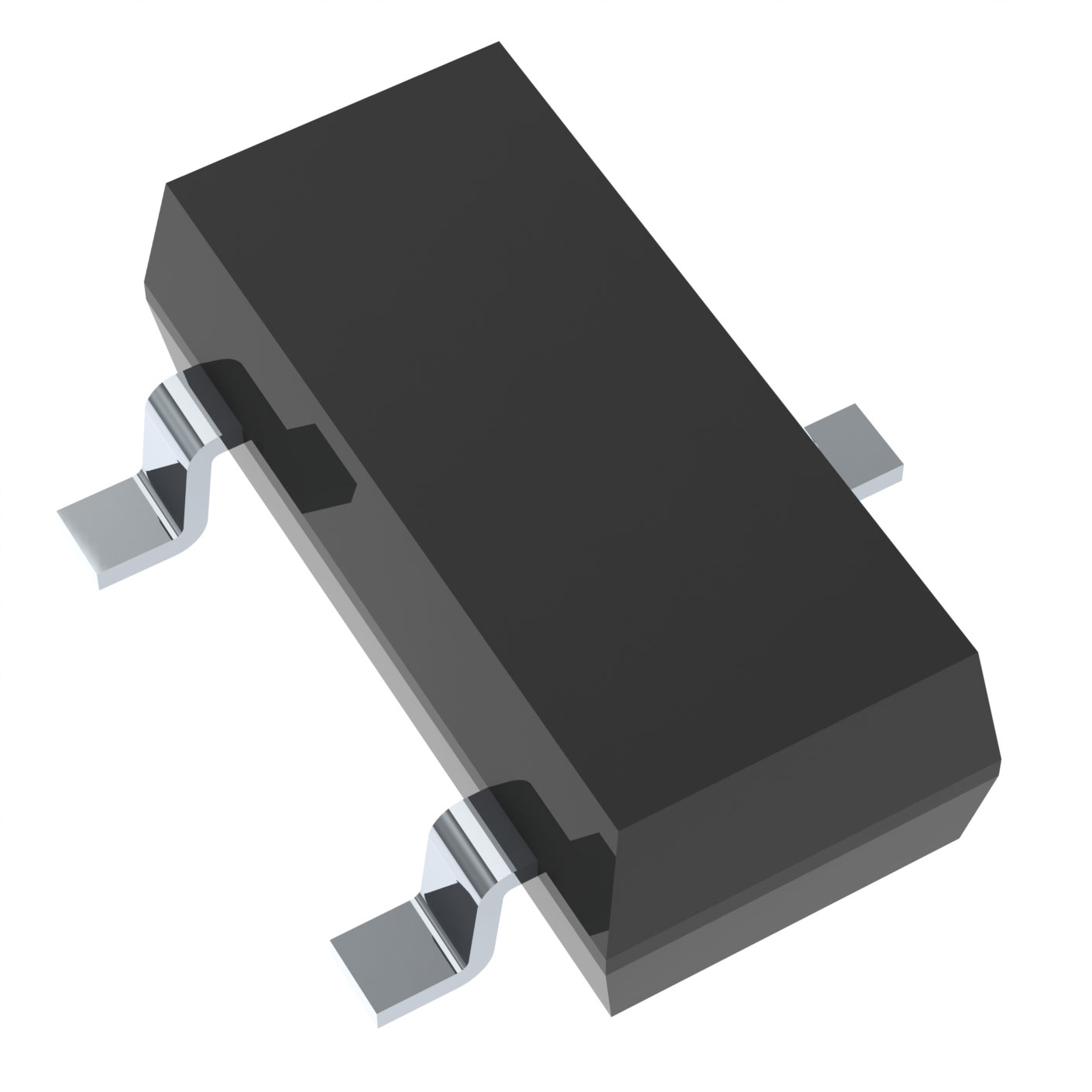

TS432AIXIC VREF SHUNT 1.24V SOT23-3 |
2,787 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Programmable | 18 V | 100 mA | ±1% | 1.24V | 50ppm/°C | - | - | - | - | - | 80 µA | - | -40°C ~ 105°C | Surface Mount | SOT-23 |
|
TLVH431CDCKRG4IC VREF SHUNT ADJ 1.5% SC70-6 |
1,335 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 18 V | 70 mA | ±1.5% | 1.24V | - | - | - | - | - | - | 100 µA | - | 0°C ~ 70°C (TA) | Surface Mount | SC-70-6 |
|
LMV431CM5XIC VREF SHUNT ADJ 1.5% SOT23-5 |
1,313 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 30 V | 15 mA | ±1.5% | 1.24V | - | - | - | - | - | - | 80 µA | - | 0°C ~ 70°C (TA) | Surface Mount | SOT-23-5 |
|
TL431BIDRG4IC VREF SHUNT ADJ 0.5% 8SOIC |
1,564 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±0.5% | 2.495V | - | - | - | - | - | - | 700 µA | - | -40°C ~ 85°C (TA) | Surface Mount | 8-SOIC |
|
|
LMV431IM5XIC VREF SHUNT ADJ 1.5% SOT23-5 |
2,879 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 30 V | 15 mA | ±1.5% | 1.24V | - | - | - | - | - | - | 80 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-5 |
|
|
TL431ACDIC VREF SHUNT ADJ 1% 8SO |
4,706 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±1% | 2.495V | - | - | - | - | - | - | 600 µA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-SOIC |
|
|
TL431IDIC VREF SHUNT ADJ 2.21% 8SO |
1,893 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.21% | 2.495V | - | - | - | - | - | - | 1 mA | - | -40°C ~ 105°C (TA) | Surface Mount | 8-SOIC |
|
|
SPX385AM-L-2-5/TRIC VREF SHUNT 1% SOT23-3 |
2,348 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | - | 20 mA | ±1% | 2.5V | 140ppm/°C | - | 120µVrms | - | - | - | 20 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
|
TL431CDRG4IC VREF SHUNT ADJ 2.2% 8SOIC |
1,062 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.2% | 2.495V | - | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-SOIC |
|
AP431YL-13IC VREF SHUNT ADJ 1% SOT89-3 |
1,267 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 200 mA | ±1% | 2.495V | 30ppm/°C | - | - | - | - | - | 500 µA | - | -20°C ~ 85°C (TA) | Surface Mount | SOT-89-3 |
