| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Part Status | Reference Type | Output Type | Voltage - Output (Max) | Current - Output | Tolerance | Voltage - Output (Min/Fixed) | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Qualification | Current - Cathode | Grade | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4040D50IDBZRG4IC VREF SHUNT 1% SOT23-3 |
4,318 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 15 mA | ±1% | 5V | 150ppm/°C | - | 80µVrms | - | - | - | 95 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
,TO-226_straightlead.jpg)
|
LM385Z-1.2IC VREF SHNT -2.4%/+2.01% TO92-3 |
4,340 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | - | 20 mA | -2.4%, +2.01% | 1.235V | 80ppm/°C Typical | - | 60µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92 (TO-226) |
|
LM385Z-2.5IC VREF SHUNT 3% TO92-3 |
3,747 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | - | 20 mA | ±3% | 2.5V | 80ppm/°C Typical | - | 120µVrms | - | - | - | 30 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92 (TO-226) |
|
LM385Z-1.2RAIC VREF SHNT -2.4%/+2.01% TO92-3 |
4,714 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 20 mA | -2.4%, +2.01% | 1.235V | 80ppm/°C Typical | - | 60µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
|
LM385Z-1.2RPIC VREF SHNT -2.4%/+2.01% TO92-3 |
3,330 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Fixed | - | 20 mA | -2.4%, +2.01% | 1.235V | 80ppm/°C Typical | - | 60µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
|
LM385Z-2.5RPIC VREF SHUNT 3% TO92-3 |
1,510 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Fixed | - | 20 mA | ±3% | 2.5V | 80ppm/°C Typical | - | 120µVrms | - | - | - | 30 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
ZHT431F02TCIC VREF SHUNT ADJ 2% SOT23 |
4,559 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 20 V | 100 mA | ±2% | 2.5V | 67ppm/°C | - | - | - | - | - | 50 µA | - | -55°C ~ 125°C (TA) | Surface Mount | SOT-23-3 |
|
|
LM4040CIM3X-3.0IC VREF SHUNT 0.5% SOT23-3 |
1,265 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 15 mA | ±0.5% | 3V | 100ppm/°C | - | 35µVrms | - | - | - | 65 µA | - | -40°C ~ 85°C (TA) | Surface Mount | SOT-23-3 |
|
LMV431BCM5XIC VREF SHUNT ADJ 0.5% SOT23-5 |
3,649 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 30 V | 15 mA | ±0.5% | 1.24V | - | - | - | - | - | - | 80 µA | - | 0°C ~ 70°C (TA) | Surface Mount | SOT-23-5 |
|

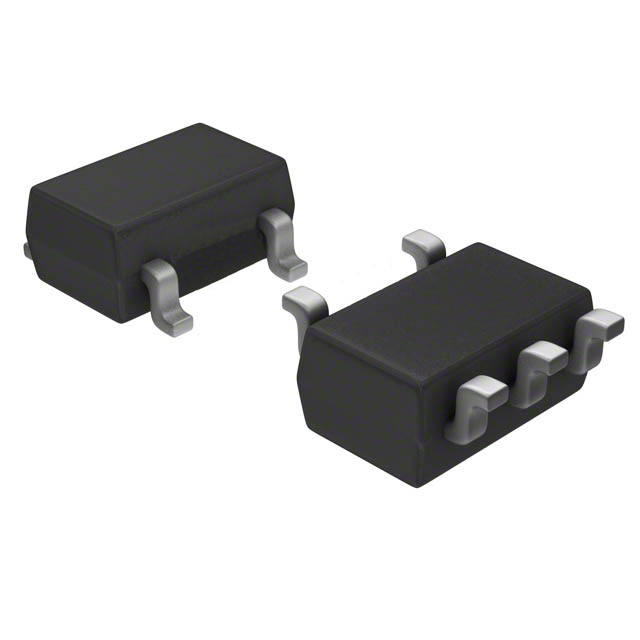

UPC1093TA-E1-ATIC VREF SHUNT 2.495V SC74A |
1,450 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Discontinued | Shunt | Adjustable | 36 V | 150 mA | ±2% | 2.495V | 100ppm/°C | - | - | 36V | - | - | 1 mA | - | -20°C ~ 85°C (TA) | Surface Mount | SC-74A, 5-Mini Mold |
|
TL431CPWRIC VREF SHUNT ADJ 2.2% 8TSSOP |
3,306 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.2% | 2.495V | - | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-TSSOP |
|
|
LT1004CLP-1-2IC VREF SHUNT 0.32% TO92-3 |
3,179 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | - | 20 mA | ±0.32% | 1.235V | 20ppm/°C Typical | - | 60µVrms | - | - | - | 10 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
TSM1011ISTIC VREF SERIES 0.5% 8MINISO |
4,976 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | - | 1 mA | ±0.5% | 2.545V | - | - | - | 4.5V ~ 28V | 50mA | - | - | - | 0°C ~ 105°C (TA) | Surface Mount | 8-MiniSO |
|
LM385BZ-1.2IC VREF SHUNT 1% TO92-3 |
2,343 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | - | 20 mA | ±1% | 1.235V | 80ppm/°C Typical | - | 60µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92 (TO-226) |
|
LM385BZ-2.5IC VREF SHUNT 1.5% TO92-3 |
3,791 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tube | Obsolete | Shunt | Fixed | - | 20 mA | ±1.5% | 2.5V | 80ppm/°C Typical | - | 120µVrms | - | - | - | 30 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92 (TO-226) |
|
|
LM385BZ-1.2RAIC VREF SHUNT 1% TO92-3 |
2,923 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 20 mA | ±1% | 1.235V | 80ppm/°C Typical | - | 60µVrms | - | - | - | 20 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
|
LM385BZ-2.5RAIC VREF SHUNT 1.5% TO92-3 |
2,243 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | - | 20 mA | ±1.5% | 2.5V | 80ppm/°C Typical | - | 120µVrms | - | - | - | 30 µA | - | 0°C ~ 70°C (TA) | Through Hole | TO-92-3 |
|
|
TLVH431ACDBZRG4IC VREF SHUNT ADJ 1% SOT23-3 |
1,445 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued | Shunt | Adjustable | 18 V | 70 mA | ±1% | 1.24V | - | - | - | - | - | - | 100 µA | - | 0°C ~ 70°C (TA) | Surface Mount | SOT-23-3 |
|
TSM1011IDIC VREF SERIES 0.5% 8SO |
3,499 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | - | 1 mA | ±0.5% | 2.545V | - | - | - | 4.5V ~ 28V | 50mA | - | - | - | 0°C ~ 105°C (TA) | Surface Mount | 8-SOIC |
|
TL431CPSRIC VREF SHUNT ADJ 2.2% 8SO |
4,158 |
|
Datasheet |
8-SOIC (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 36 V | 100 mA | ±2.2% | 2.495V | - | - | - | - | - | - | 1 mA | - | 0°C ~ 70°C (TA) | Surface Mount | 8-SO |
