Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Part Status	Type	Voltage - Max	Current - Trip (It)	Current - Max	Time to Trip	Current - Hold (Ih) (Max)	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Size / Dimension	Qualification	Mounting Style	Ratings	Height - Seated (Max)	Thickness (Max)	Lead Spacing

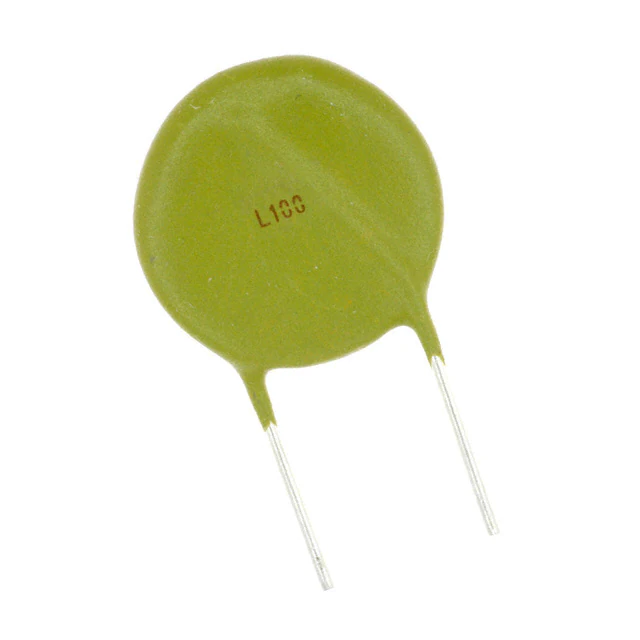

LVR100S PTC RESET FUSE 240V 1A RADIAL Littelfuse Inc.	2,661	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	2 A	10 A	21 s	1 A	218 mOhms	580 mOhms	-	-20°C ~ 85°C	-	0.736" Dia x 0.201" T (18.70mm x 5.10mm)	-	Through Hole	-	0.961" (24.40mm)	-	0.400" (10.15mm)

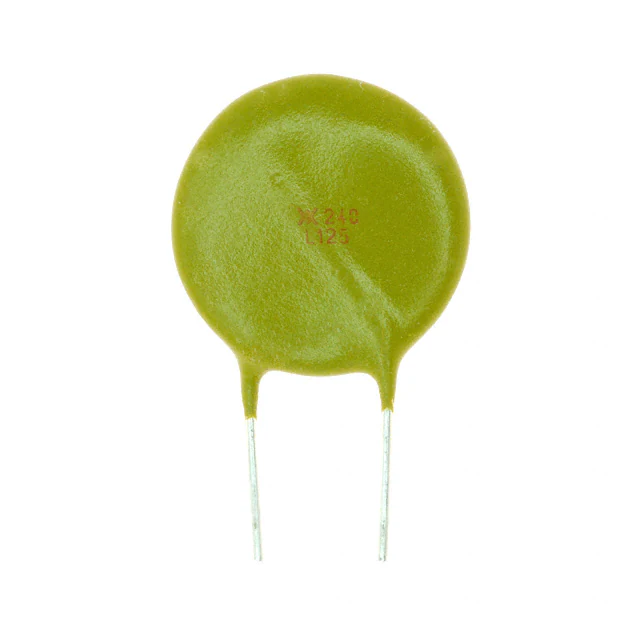

LVR125S PTC RESET FUSE 240V 1.25A RADIAL Littelfuse Inc.	6,809	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	2.5 A	12.5 A	23 s	1.25 A	165 mOhms	440 mOhms	-	-20°C ~ 85°C	-	0.835" Dia x 0.209" T (21.20mm x 5.30mm)	-	Through Hole	-	1.079" (27.40mm)	-	0.400" (10.15mm)
LVR200S PTC RESET FUSE 240V 2A RADIAL Littelfuse Inc.	8,066	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	4 A	20 A	28 s	2 A	89 mOhms	221 mOhms	-	-20°C ~ 85°C	-	0.980" L x 0.240" W (24.90mm x 6.10mm)	-	Through Hole	-	1.331" (33.80mm)	-	0.400" (10.15mm)
PTGL07BB220N0B52A0 PTC RESET FUSE 250V 130MA RADIAL Murata Electronics	9,900	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	POSISTOR®, PTGL	Cut Tape (CT)	Obsolete	Ceramic	250V	250 mA	500 mA	-	130 mA	-	-	22 Ohms	-10°C ~ 60°C	-	0.315" Dia x 0.236" T (8.00mm x 6.00mm)	-	Through Hole	-	0.315" (8.00mm)	-	0.197" (5.00mm)
PTGL09AR390N0B52A0 PTC RESET FUSE 250V 115MA RADIAL Murata Electronics	7,306	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Ceramic	250V	245 mA	600 mA	-	115 mA	-	-	39 Ohms	-10°C ~ 60°C	-	0.394" Dia x 0.236" T (10.00mm x 6.00mm)	-	Through Hole	-	0.630" (16.00mm)	-	0.197" (5.00mm)
PTGL09AR250H8B52B0 PTC RESET FUSE 265V 150MA RADIAL Murata Electronics	4,829	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	290 mA	1 A	-	150 mA	-	-	25 Ohms	-10°C ~ 60°C	-	0.394" Dia x 0.236" T (10.00mm x 6.00mm)	-	Through Hole	-	0.630" (16.00mm)	-	0.197" (5.00mm)
CMF-SD25-2 PTC RESET FUSE 230V 130MA 4SMD Bourns Inc.	8,226	-	RFQ Sell Excess Inventory	Datasheet	4-SMD Cube	CMF-SD	Tape & Reel (TR)	Obsolete	Ceramic	230V (600V Int)	260 mA	2.8 A	300 ms	130 mA	-	-	25 Ohms	-	-	0.402" L x 0.354" W (10.20mm x 9.00mm)	-	Surface Mount	-	-	0.425" (10.80mm)	-

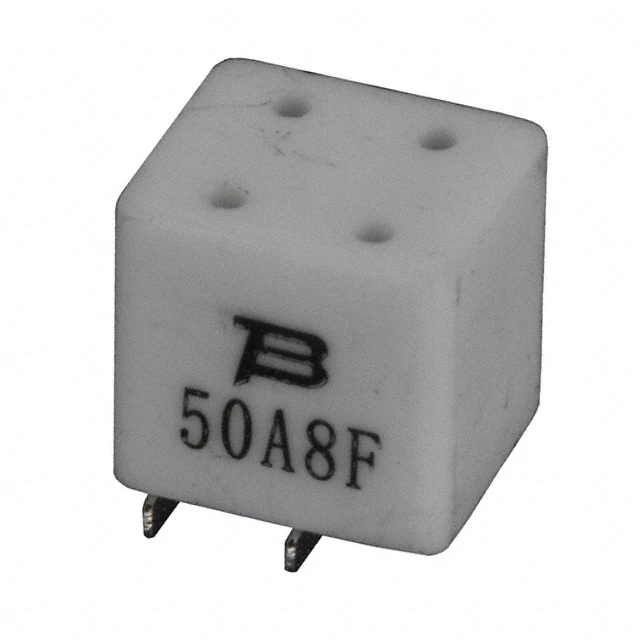

CMF-SD50A-10-2 PTC RESET FUSE 230V 90MA 4SMD Bourns Inc.	8,646	-	RFQ Sell Excess Inventory	Datasheet	4-SMD Cube	CMF-SD	Tape & Reel (TR)	Obsolete	Ceramic	230V (600V Int)	190 mA	3 A	100 ms	90 mA	-	-	50 Ohms	-	-	0.319" L x 0.282" W (8.10mm x 7.15mm)	-	Surface Mount	-	-	0.335" (8.50mm)	-
YPBL2.30T PTC RESET FUSE 80V 450MA RADIAL Amphenol Advanced Sensors (Thermometrics)	8,550	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	900 mA	8 A	-	450 mA	-	-	2.3 Ohms	0°C ~ 60°C	-	0.689" Dia x 0.138" T (17.50mm x 3.50mm)	-	Through Hole	-	0.748" (19.00mm)	-	0.200" (5.08mm)
YPBL5.60T PTC RESET FUSE 80V 250MA RADIAL Amphenol Advanced Sensors (Thermometrics)	6,815	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	500 mA	4.3 A	-	250 mA	-	-	5.6 Ohms	0°C ~ 60°C	-	0.433" Dia x 0.138" T (11.00mm x 3.50mm)	-	Through Hole	-	0.492" (12.50mm)	-	0.200" (5.08mm)
YPBL9.40T PTC RESET FUSE 80V 150MA RADIAL Amphenol Advanced Sensors (Thermometrics)	6,423	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	300 mA	3 A	-	150 mA	-	-	9.4 Ohms	0°C ~ 60°C	-	0.354" Dia x 0.138" T (9.00mm x 3.50mm)	-	Through Hole	-	0.413" (10.50mm)	-	0.200" (5.08mm)
YPBL0025T PTC RESET FUSE 80V 85MA RADIAL Amphenol Advanced Sensors (Thermometrics)	9,673	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	170 mA	1 A	-	85 mA	-	-	25 Ohms	0°C ~ 60°C	-	0.256" Dia x 0.138" T (6.50mm x 3.50mm)	-	Through Hole	-	0.315" (8.00mm)	-	0.200" (5.08mm)
YPCL0006T PTC RESET FUSE 265V 330MA RADIAL Amphenol Advanced Sensors (Thermometrics)	3,096	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	660 mA	4.1 A	-	330 mA	-	-	6 Ohms	0°C ~ 60°C	-	0.689" Dia x 0.197" T (17.50mm x 5.00mm)	-	Through Hole	-	0.748" (19.00mm)	-	0.200" (5.08mm)
YPCL0025T PTC RESET FUSE 265V 100MA RADIAL Amphenol Advanced Sensors (Thermometrics)	8,459	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	200 mA	1 A	-	100 mA	-	-	25 Ohms	0°C ~ 60°C	-	0.354" Dia x 0.197" T (9.00mm x 5.00mm)	-	Through Hole	-	0.413" (10.50mm)	-	0.200" (5.08mm)
YPCL0120T PTC RESET FUSE 265V 35MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,011	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	80 mA	400 mA	-	35 mA	-	-	120 Ohms	0°C ~ 60°C	-	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	-	Through Hole	-	0.315" (8.00mm)	-	0.200" (5.08mm)
YPDL0600T PTC RESET FUSE 420V 21MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,676	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	420V	39 mA	200 mA	-	21 mA	-	-	600 Ohms	0°C ~ 60°C	-	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	-	Through Hole	-	0.315" (8.00mm)	-	0.200" (5.08mm)
YPEK1200T PTC RESET FUSE 550V 15MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,348	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	550V	30 mA	100 mA	-	15 mA	-	-	1.2 kOhms	0°C ~ 60°C	-	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	-	Through Hole	-	0.315" (8.00mm)	-	0.200" (5.08mm)
YPEK3500T PTC RESET FUSE RADIAL DISC Amphenol Advanced Sensors (Thermometrics)	3,711	-	RFQ Sell Excess Inventory	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	-	-	-	-	-	-	-	-	-	-	0.157" Dia x 0.157" T (4.00mm x 4.00mm)	-	Through Hole	-	0.217" (5.50mm)	-	0.200" (5.08mm)
SRP120SF PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	2,513	-	RFQ Sell Excess Inventory	Datasheet	Strap	PolySwitch®, SRP	Bulk	Active	Polymeric	15V	2.7 A	100 A	5 s	1.2 A	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	0.827" L x 0.199" W (21.00mm x 5.05mm)	-	User Defined	-	-	0.039" (1.00mm)	-
SRP175LF PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	7,434	-	RFQ Sell Excess Inventory	Datasheet	Strap	PolySwitch®	Bulk	Active	Polymeric	15V	3.8 A	100 A	5 s	1.75 A	50 mOhms	90 mOhms	-	-	-	0.866" L x 0.199" W (22.00mm x 5.05mm)	-	User Defined	-	-	0.039" (1.00mm)	-
