Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT71205TURELAY REED SPST-NO 5KV 12V |
4,908 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 2 A | 3500VAC, 3500VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Tungsten (W) |
|
DAR72475FURELAY REED SPST-NO 7.5KV 24V |
3,388 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|
|
DAR71275PURELAY REED SPST-NO 7.5KV 12V |
1,219 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | Solder Turret | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|
|
DBT70505FURELAY REED SPST-NC 5KV 5V |
2,929 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | 2 A | 3500VAC, 3500VDC - Max | 132 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | -20°C ~ 70°C | 0.5 VDC | 3 ms | 2 ms | Tungsten (W) |
|
|
DBT71275URELAY REED SPST-NC 7.5KV 12V |
1,989 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 12VDC | 2 A | 5000VAC, 5000VDC - Max | 50 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 3 ms | 2 ms | Tungsten (W) |
|
|
DAT70575SURELAY REED SPST-NO 7.5KV 5V |
4,157 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 5VDC | 2 A | 5000VAC, 5000VDC - Max | 179 mA | SPST-NO (1 Form A) | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | -20°C ~ 70°C | 0.5 VDC | 2 ms | 3 ms | Tungsten (W) |
|
1393803-6V23100V6002A201 |
4,583 |
|
Datasheet |
V23100-V6, AXICOM | Box | Active | Through Hole | 12VDC | 750 mA | 24VDC - Nom | 10.9 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
ACC-DRDRY RELAY TTL 200VAC/DC 0.25A |
3,450 |
|
Datasheet |
DR | Bulk | Active | - | - | 250 mV | 2.5V | 10 mA | - | - | - | Wire Leads | - | 2.3 VDC | -20°C ~ 70°C | 0.45 VDC | 0.1 ms | 0.7 ms | - |
|
HE721C0510RELAY REED SPDT 250MA 5V |
1,821 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 250 mA | 175VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -40°C ~ 85°C | 0.5 VDC | 3 ms | 3 ms | - |
|
3563-1231-054RELAY REED DIP SPDT .4A 5V W/DIO |
3,635 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 5VDC | 400 mA | 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.6 VDC | 1.5 ms | 1 ms | - |
|
DIP05-2A72-21LRELAY REED DPST 1A 5V |
3,711 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 1 A | 200VAC, 200VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 0.1 ms | 0.5 ms | - |
|

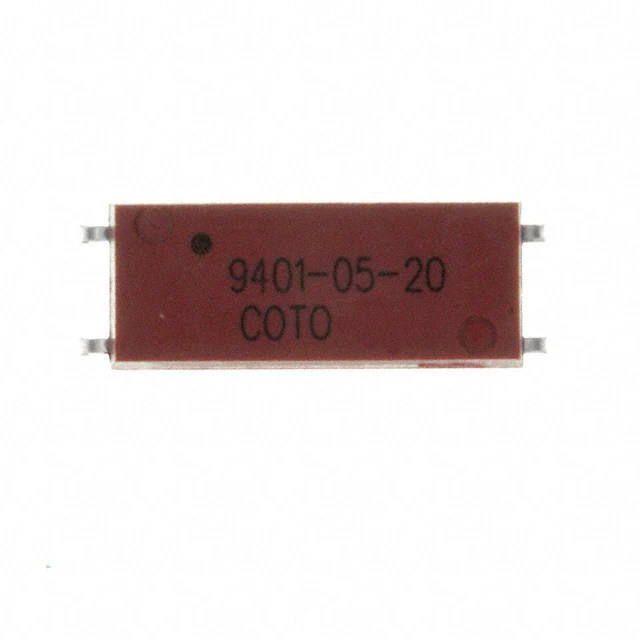

9401-05-20RELAY REED SPST 500MA 5V |
2,652 |
|
Datasheet |
9400 | Tube | Active | Surface Mount | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | SPST-NO (1 Form A) | Non Latching | - | J Lead | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.2 ms | 0.4 ms | - |
|
|
MHV05-1AMINIATURE HIGH VOLTAGE REED RELA |
1,129 |
|
Datasheet |
MH | Tape & Reel (TR) | Active | Surface Mount | 5VDC | 700 mA | 1000VDC - Max | 35.7 mA | SPST-NO (1 Form A) | Non Latching | - | Gull Wing | - | - | -40°C ~ 105°C | - | - | - | - |
|
|
V23100V4505A000RELAY REED SPST 500MA 5V |
4,687 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.5 VDC | -40°C ~ 85°C | 0.75 VDC | 0.15 ms | 0.75 ms | Ruthenium (Ru) |
|
SHV05-1A85-78L4KRELAY REED SPST 1A 5V |
3,048 |
|
Datasheet |
SHV | Tube | Active | Through Hole | 5VDC | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | SPST-NO (1 Form A) | Non Latching | Magnetic Shield | PC Pin | - | 3.75 VDC | -40°C ~ 100°C | 0.5 VDC | 0.1 ms | 1.1 ms | - |
|
DAT72405URELAY REED SPST-NO 5KV 24V |
4,179 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Tungsten (W) |
|
DAT72410URELAY REED SPST-NO 2A 24V |
2,754 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Tungsten (W) |
|
|
DAT72415RELAY REED SPST-NO 2A 24V |
4,233 |
|
Datasheet |
DA | Tray | Active | Through Hole | 24VDC | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Tungsten (W) |
|
DAT71215F-HRRELAY REED SPST-NO 2A 12V |
3,904 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | 2 A | 10000VAC, 10000VDC - Max | 126 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Tungsten (W) |
|
3570-1210-054RELAY REED DIP SPST .5A 5V W/DIO |
1,820 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | 500 mA | 150VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.6 VDC | 0.5 ms | 0.5 ms | - |
