Resonators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Frequency | Frequency Tolerance | Features | Capacitance | Frequency Stability | Impedance | Operating Temperature | Mounting Style | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

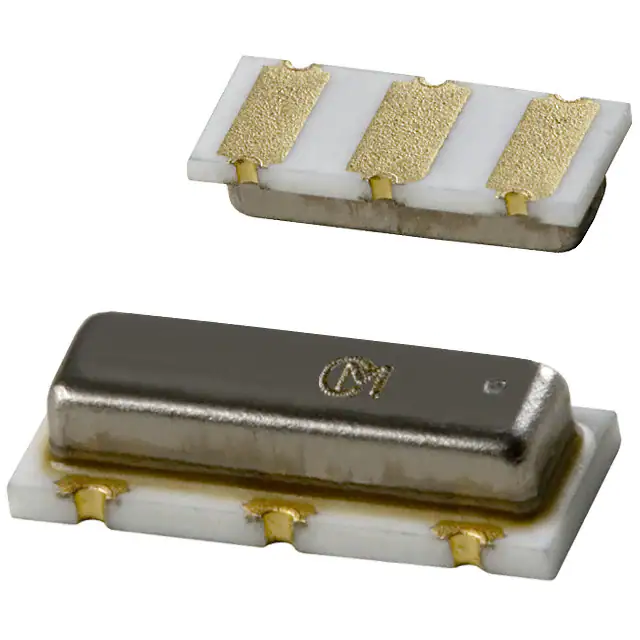

CSTCC3M58G53-R0CERAMIC RES 3.5800MHZ 15PF SMD |
6,098 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.3% | 50 Ohms | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CSTCC3M58G56-R0CERAMIC RES 3.5800MHZ 47PF SMD |
8,069 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.5% | Built in Capacitor | 47 pF | - | 50 Ohms | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.061" (1.55mm) |
|
AWSCR-10.00CPLA-C47-T4CER RES 10MHZ 47PF SMD |
4,054 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, No Lead | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.5% | Built in Capacitor | 47 pF | ±0.2% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.067" (1.70mm) |
|
ECS-CR2-12.00-B-TRCERAMIC RES 12.0000MHZ 30PF SMD |
2,061 |
|
Datasheet |
CR2 | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | - | -20°C ~ 80°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.059" (1.50mm) |
|
PBRC-3.58ARCERAMIC RES 3.5800MHZ SMD |
4,144 |
|
Datasheet |
PBRC-A, Kyocera | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.5% | - | - | ±0.3% | 30 Ohms | -20°C ~ 80°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.091" (2.30mm) |
|
|
PBRC-3.68ARCERAMIC RES 3.6800MHZ SMD |
4,538 |
|
Datasheet |
PBRC-A, Kyocera | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.68 MHz | ±0.5% | - | - | ±0.3% | 30 Ohms | -20°C ~ 80°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.091" (2.30mm) |
|
|
CSTCC2M00G53-R0CERAMIC RES 2.0000MHZ 15PF SMD |
8,260 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.3% | - | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.071" (1.80mm) |
|
AWSZT-3.58MGD-TCERAMIC RES 3.5800MHZ SMD |
9,684 |
|
Datasheet |
AWSZT-MGD | 2913 (7434 Metric) | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.5% | - | - | ±0.3% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSZT-6.00MGD-TCERAMIC RES 6.0000MHZ SMD |
5,642 |
|
Datasheet |
AWSZT-MGD | 2913 (7434 Metric) | Tape & Reel (TR) | Obsolete | Ceramic | 6 MHz | ±0.5% | - | - | ±0.3% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
ZTA-6.00MTCERAMIC RES 6.0000MHZ T/H |
5,160 |
|
Datasheet |
ZTA | Radial - 2 Lead, 5.00mm Pitch | Bulk | Obsolete | Ceramic | 6 MHz | ±0.5% | - | - | ±0.3% | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
AWSZT-11.00CV-TCERAMIC RES 11.0000MHZ SMD |
6,874 |
|
Datasheet |
AWSZT-CV | 1512 (3731 Metric) | Tape & Reel (TR) | Active | Ceramic | 11 MHz | ±0.5% | - | - | ±0.4% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.047" (1.19mm) |
|
|
AWSZT-18.43CV-TCERAMIC RES 18.4300MHZ SMD |
8,888 |
|
Datasheet |
AWSZT-CV | 1512 (3731 Metric) | Tape & Reel (TR) | Active | Ceramic | 18.43 MHz | ±0.5% | - | - | ±0.3% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.047" (1.19mm) |
|
|
AWSZT-20.00CV-TCERAMIC RES 20.0000MHZ SMD |
5,822 |
|
Datasheet |
AWSZT-CV | 1512 (3731 Metric) | Tape & Reel (TR) | Active | Ceramic | 20 MHz | ±0.5% | - | - | ±0.3% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.047" (1.19mm) |
|
|
AWSZT-27.00CV-TCERAMIC RES 27.0000MHZ SMD |
8,445 |
|
Datasheet |
AWSZT-CV | 1512 (3731 Metric) | Cut Tape (CT) | Active | Ceramic | 27 MHz | ±0.5% | - | - | ±0.3% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.047" (1.19mm) |
|
AWSCR-3.68CPLA-C33-T4CERAMIC RES 3.6800MHZ 33PF SMD |
6,759 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 3.68 MHz | ±0.5% | Built in Capacitor | 33 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AWSCR-4.00CPLA-C33-T4CERAMIC RES 4.0000MHZ 33PF SMD |
6,459 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 33 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CSTCC2M00G53Z-R0CERAMIC RES 2.0000MHZ 15PF SMD |
2,022 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.4% | 80 Ohms | -40°C ~ 125°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.071" (1.80mm) |
|
|
CSTCC2M45G53-R0CERAMIC RES 2.4500MHZ 15PF SMD |
4,730 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2.45 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.3% | - | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | - |
|
|
CSTCC2M45G56-R0CERAMIC RES 2.4570MHZ 47PF SMD |
7,585 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2.457 MHz | ±0.5% | Built in Capacitor | 47 pF | ±0.3% | 80 Ohms | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.061" (1.55mm) |
|
|
CSTCC2M50G56-R0CERAMIC RES 2.5000MHZ 47PF SMD |
5,737 |
|
Datasheet |
CERALOCK® CSTCC | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 2.5 MHz | ±0.5% | Built in Capacitor | 47 pF | ±0.4% | - | -20°C ~ 80°C | Surface Mount | 0.283" L x 0.118" W (7.20mm x 3.00mm) | - |
