Resonators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Frequency | Frequency Tolerance | Features | Capacitance | Frequency Stability | Impedance | Operating Temperature | Mounting Style | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-CTP-2.00-15-TRCERAMIC RES 2.0000MHZ 15PF SMD |
2,376 |
|
Datasheet |
ECS-CTP | 3-SMD, No Lead | Tape & Reel (TR) | Active | Ceramic | 2 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.3% | 100 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CSTNE10M0GH5C000R0CERAMIC RES 10.0000MHZ 33PF SMD |
1,217 |
|
Datasheet |
CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.07% | Built in Capacitor | 33 pF | ±0.13% | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTCR4M00G53U-R0CER RES |
4,813 |
|
Datasheet |
CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 15 pF | ±0.2% | 45 Ohms | -20°C ~ 80°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CSTCR4M00G55B95-R0CER RES |
2,951 |
|
Datasheet |
CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 39 pF | ±0.15% | 45 Ohms | -40°C ~ 125°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AWSCR-12.00CELA-C33-T3CERAMIC RES 12.0000MHZ 33PF SMD |
1,480 |
|
Datasheet |
AWSCR-CELA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.5% | Built in Capacitor | 33 pF | ±0.2% | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE9M60GH5L000R0CERAMIC RES 9.6000MHZ 33PF SMD |
15,982 |
|
Datasheet |
CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 9.6 MHz | ±0.07% | Built in Capacitor | 33 pF | ±0.11% | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.031" (0.80mm) |
|
AWSCR-3.68CPLB-C30-T4CERAMIC RES 3.6800MHZ 30PF SMD |
4,781 |
|
Datasheet |
AWSCR-CPLB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 3.68 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.4% | 30 Ohms | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
CSTLS25M0X51-A025.0MHZ CERAMIC RESONATOR (CERAL |
3,995 |
|
Datasheet |
CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 25 MHz | ±0.5% | Built in Capacitor | 5 pF | ±0.2% | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
AWSCR-8.00CELB-C33-T3CERAMIC RES 8.0000MHZ 33PF SMD |
2,665 |
|
Datasheet |
AWSCR-CELB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.5% | Built in Capacitor | 33 pF | ±0.2% | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTLS20M0X51-A020.0MHZ CERAMIC RESONATOR (CERAL |
2,630 |
|
Datasheet |
CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 20 MHz | ±0.5% | Built in Capacitor | 5 pF | ±0.2% | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS32M0X51-A0CER RESONATOR |
1,627 |
|
Datasheet |
CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 32 MHz | ±0.5% | Built in Capacitor | 5 pF | ±0.2% | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS40M0X51-A0CER RESONATOR |
1,604 |
|
Datasheet |
CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 40 MHz | ±0.5% | Built in Capacitor | 5 pF | ±0.2% | 40 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.276" (7.00mm) |
|
|
CSTLS50M0X51-B0CERAMIC RES 50.0000MHZ 5PF T/H |
1,249 |
|
Datasheet |
CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 50 MHz | ±0.5% | Built in Capacitor | 5 pF | ±0.2% | 40 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.256" (6.50mm) |
|
AWSCR-4.91CPLA-C30-T4CERAMIC RES 4.9100MHZ 30PF SMD |
19,843 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4.91 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AWSCR-6.00CPLA-C30-T4CERAMIC RES 6.0000MHZ 30PF SMD |
7,023 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 6 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AWSCR-5.00CPLA-C30-T4CERAMIC RES 5.0000MHZ 30PF SMD |
4,121 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 5 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AWSCR-3.58CPLA-C30-T4CERAMIC RES 3.5800MHZ 30PF SMD |
9,585 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 3.58 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|

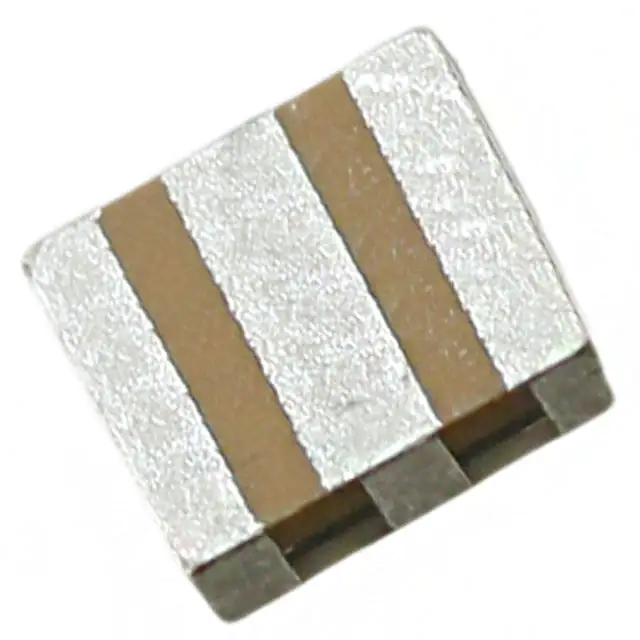

ECS-CR2-10.00-B-TRCERAMIC RES 10.0000MHZ 30PF SMD |
24,356 |
|
Datasheet |
CR2 | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.3% | - | -20°C ~ 80°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.059" (1.50mm) |
|
|
AWSCR-4.00CPLB-C10-T4CERAMIC RES 4.0000MHZ 10PF SMD |
16,961 |
|
Datasheet |
AWSCR-CPLB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 10 pF | ±0.4% | 30 Ohms | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AWSCR-10.00CPLA-C30-T4CERAMIC RES 10.0000MHZ 30PF SMD |
2,906 |
|
Datasheet |
AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.5% | Built in Capacitor | 30 pF | ±0.2% | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
