Resonators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Frequency | Frequency Tolerance | Features | Capacitance | Frequency Stability | Impedance | Operating Temperature | Mounting Style | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSTCE16M0VH3C99-R0CERAMIC RES 16.0000MHZ 15PF SMD |
2,472 |
|
Datasheet |
CERALOCK® CSTCE | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 16 MHz | ±0.3% | Built in Capacitor | 15 pF | ±0.15% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTCE20M0VH3C99-R0CERAMIC RES 20.0000MHZ 15PF SMD |
5,952 |
|
Datasheet |
CERALOCK® CSTCE | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 20 MHz | ±0.3% | Built in Capacitor | 15 pF | ±0.3% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTCE8M00GH5L99-R0CERAMIC RES 8.0000MHZ 33PF SMD |
4,341 |
|
Datasheet |
CERALOCK® CSTCE | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.5% | Built in Capacitor | 33 pF | ±0.07% | - | 0°C ~ 70°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
CSTCR4M00GH5C99-R0CERAMIC RES 4.0000MHZ 39PF SMD |
9,853 |
|
Datasheet |
CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 39 pF | ±0.08% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTCR4M00GH5L99-R0CERAMIC RES 4.0000MHZ 39PF SMD |
2,240 |
|
Datasheet |
CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.5% | Built in Capacitor | 39 pF | ±0.08% | - | 0°C ~ 70°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
PRQC10.00CR1010V00LCERAMIC RES 10.0000MHZ 10PF SMD |
3,642 |
|
Datasheet |
PRQC, Kyocera | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 10 MHz | ±0.1% | Built in Capacitor | 10 pF | ±0.02% | 350 Ohms | 0°C ~ 70°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
PBRV4.00MR25Z00KCERAMIC RES 14.0000MHZ 15PF SMD |
9,492 |
|
Datasheet |
PBRV, Kyocera | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ceramic | 14 MHz | ±0.25% | Built in Capacitor | 15 pF | ±0.2% | - | -40°C ~ 150°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.19mm) |
|
PRQV10.00CR1510Y00LCERAMIC RES 10.0000MHZ 10PF SMD |
2,533 |
|
Datasheet |
PRQV, Kyocera | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ceramic | 10 MHz | ±0.15% | Built in Capacitor | 10 pF | ±0.1% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
PRQV16.00CR1510Y00LCERAMIC RES 16.0000MHZ 10PF SMD |
6,190 |
|
Datasheet |
PRQV, Kyocera | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ceramic | 16 MHz | ±0.15% | Built in Capacitor | 10 pF | ±0.1% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
PRQV20.00CR1510Y00LCERAMIC RES 20.0000MHZ 10PF SMD |
5,352 |
|
Datasheet |
PRQV, Kyocera | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ceramic | 20 MHz | ±0.15% | Built in Capacitor | 10 pF | ±0.1% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
PRQV8.00CR1510Y00LCERAMIC RES 8.0000MHZ 10PF SMD |
6,189 |
|
Datasheet |
PRQV, Kyocera | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.15% | Built in Capacitor | 10 pF | ±0.1% | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
AWCR-12.00RSCERAMIC RES 12.0000MHZ 15PF T/H |
4,892 |
|
Datasheet |
AWCR-RS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 12 MHz | ±0.3% | Built in Capacitor | 15 pF | ±0.5% | 25 Ohms | -25°C ~ 85°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.217" (5.50mm) |
|

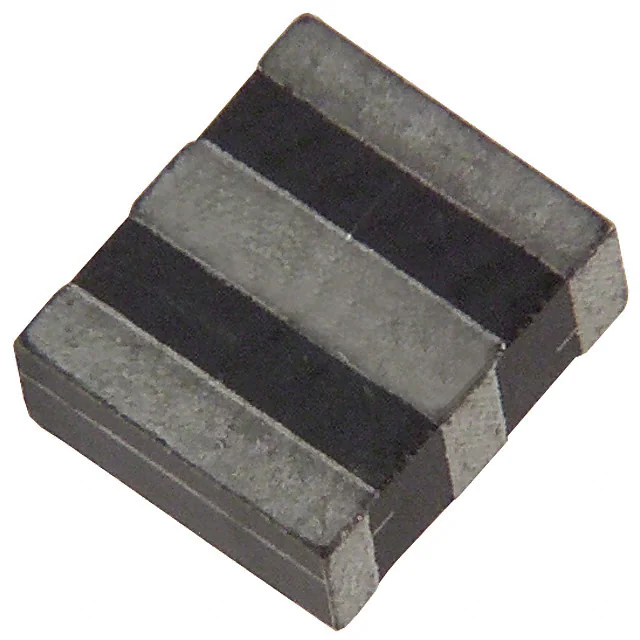

AWSCR-25.00MTD-TCERAMIC RES 25.0000MHZ 10PF SMD |
3,892 |
|
Datasheet |
AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 25 MHz | ±0.3% | Built in Capacitor | 10 pF | ±0.5% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | - |
|
AWSCR-3.58MGD-T4CERAMIC RES 3.5800MHZ 22PF SMD |
2,785 |
|
Datasheet |
AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 3.58 MHz | ±0.3% | Built in Capacitor | 22 pF | ±0.5% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSCR-32.00MTD-TCERAMIC RES 32.0000MHZ 5PF SMD |
8,251 |
|
Datasheet |
AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 32 MHz | ±0.3% | Built in Capacitor | 5 pF | ±0.5% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | - |
|
|
AWSCR-4.00MGD-T4CERAMIC RES 4.0000MHZ 22PF SMD |
6,899 |
|
Datasheet |
AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | Built in Capacitor | 22 pF | ±0.5% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSCR-48.00MTD-TCERAMIC RES 48.0000MHZ 5PF SMD |
7,742 |
|
Datasheet |
AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 48 MHz | ±0.3% | Built in Capacitor | 5 pF | ±0.5% | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | - |
|
|
AWSCR-6.00MGD-T4CERAMIC RES 6.0000MHZ 22PF SMD |
8,014 |
|
Datasheet |
AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 6 MHz | ±0.3% | Built in Capacitor | 22 pF | ±0.5% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSCR-8.00MGD-T4CERAMIC RES 8.0000MHZ 22PF SMD |
6,844 |
|
Datasheet |
AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | Built in Capacitor | 22 pF | ±0.5% | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
AWSZT-12.00MXD-TCERAMIC RES 12.0000MHZ SMD |
8,181 |
|
Datasheet |
AWSZT-MXD | 1916 (4741 Metric) | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.3% | - | - | ±0.5% | 40 Ohms | -20°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | 0.055" (1.40mm) |
