Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

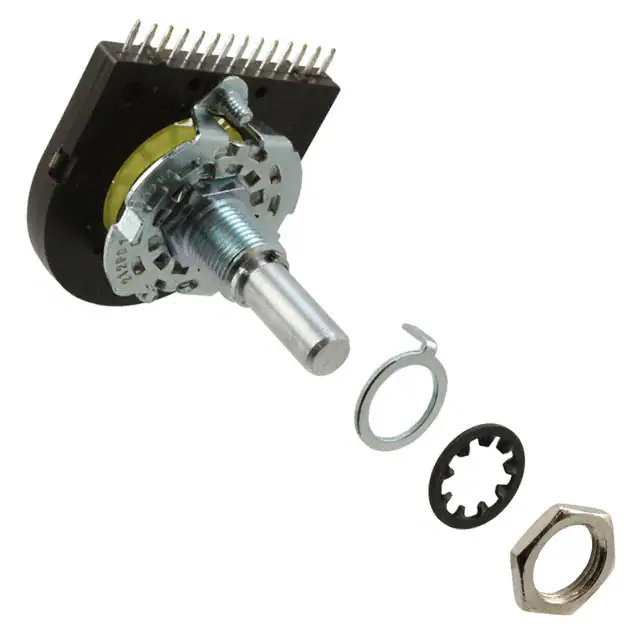

212P0112N332RASWITCH ROTARY 12POS 750MA 125V |
276 |
|
Datasheet |
212 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 750mA (AC), 250mA (DC) | 125 V | 28 V | Round (6.35mm Dia) | 15.90mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | - |
|
75AP36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
225 |
|
Datasheet |
75 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | Flush | Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | - | 12.42mm |
|
71AD30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
1,903 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
77P36-01-1-02NSWITCH ROTARY 2POS 50MA 115V |
192 |
|
Datasheet |
77 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | - | 4.57mm |
|
71AD36-01-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
4,717 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
SMR 1-30SWITCH ROTARY 50MA 12V |
2,000 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | 2 | Fixed | 1 | SPDT | Not Specified | 1 | 50mA (DC) | - | 12 V | Screwdriver Slot | Flush | Surface Mount | 60° | Gold | Copper | Gull Wing | - | 2.10mm |
|
9341900117SWITCH ROTARY 12POS 130MA 150V |
121 |
|
Datasheet |
419 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 130mA (AC/DC) | 150 V | 150 V | Round (6mm Dia), Slotted | - | Through Hole | 30° | Silver | Copper Alloy | PC Pin | - | - |
|
|
90005-01-BXSWITCH ROTARY 3POS 15A 12V |
177 |
|
Datasheet |
- | Bulk | Active | 3 | Fixed | 2 | DPDT | Not Specified | 1 | 15A (DC) | - | 12 V | Lever | - | Panel Mount | 40° | Silver | - | Screw Terminal | - | 40.64mm |
|
|
6KF001A-3S16R5-0CODED ROTARY SW, 3*3 THT, 16POS, |
1,197 |
|
Datasheet |
- | Tube | Active | 16 | - | - | BCD | - | - | - | - | - | Flatted | - | Panel Mount, Through Hole | - | Gold | Copper Alloy | PC Pin | - | - |
|
|
MRS 12V-19SWITCH ROTARY 100MA 16V |
113 |
|
Datasheet |
MRS | Tray | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 100mA (DC) | - | 16 V | Flatted (5mm Dia) | 5.80mm | Through Hole | 40° | Gold | - | PC Pin | - | 4.00mm |
|
RTAP4ES03M25NSSWITCH ROTARY 3POS 150MA 60V |
336 |
|
Datasheet |
RTA | Bulk | Active | 3 | Fixed | - | BCD with Complement | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | Panel Mount, Through Hole | 36° | Silver | Brass | PC Pin | - | 12.60mm |
|
|
KC60RANCONPFSWITCH ROTARY 6POS 350MA 125V |
835 |
|
Datasheet |
KC | Bulk | Obsolete | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 350mA (AC) | 125 V | - | Flatted (6mm Dia) | 16.00mm | Panel Mount, Through Hole | 60° | Gold | Copper Alloy | PC Pin | - | 14.10mm |
|
KC34B7.001NLSSWITCH ROTARY 4POS 350MA 125V |
642 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 350mA (AC) | 125 V | - | Round (6mm Dia) | 7.00mm | Panel Mount | 30° | Silver | Copper Alloy | Solder Lug | - | 18.50mm |
|
|
MRA112-BCSWITCH ROTARY 2-12POS 250MA 125V |
4,879 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
56BS36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
372 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56D30-01-1-AJSSWITCH ROTARY 2-12POS 200MA 115V |
1,245 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
MRA403-BFSWITCH ROTARY 2-3POS 250MA 125V |
190 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 3 | Adjustable | 4 | 4P3T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
MRT22SWITCH ROTARY 2POS 10A 125V |
2,586 |
|
Datasheet |
MR | Bulk | Last Time Buy | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 10A (AC), 4A (DC) | 125 V | 30 V | Flatted (3.17mm Dia) | 20.00mm | Panel Mount, Right Angle | 120° | - | Silver Alloy | Solder Lug | Sealed - Flux Protection | 12.00mm |
|
|
MRJ3404SWITCH ROTARY 2-4POS 0.4VA 20V |
4,195 |
|
Datasheet |
MRJ | Bulk | Obsolete | 2 ~ 4 | - | 3 | 3P4T | - | 1 | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia) | - | Panel Mount, Through Hole | 30° | - | - | PC Pin | - | - |
|
|
56SP30-01-2-04SSWITCH ROTARY 4POS 200MA 115V |
142 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 2 | DP4T | Shorting (MBB) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Brass | PC Pin | Shaft and Panel Sealed | 9.58mm |
