| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MT60-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
4,893 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
50MT60-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
4,733 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
50MT60-01-1-06NSWITCH ROTARY 6POS 150MA 115V |
3,988 |
|
Datasheet |
50 | Bulk | Active | 6 | Continuous | 1 | SP6T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
50MT90-01-1-02NSWITCH ROTARY 2POS 150MA 115V |
4,742 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 90° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
50MT90-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
2,745 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 90° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
50MT90-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
2,499 |
|
Datasheet |
50 | Bulk | Active | 4 | Continuous | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 90° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
71ED30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
3,259 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
|
71ED30-01-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
3,802 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|

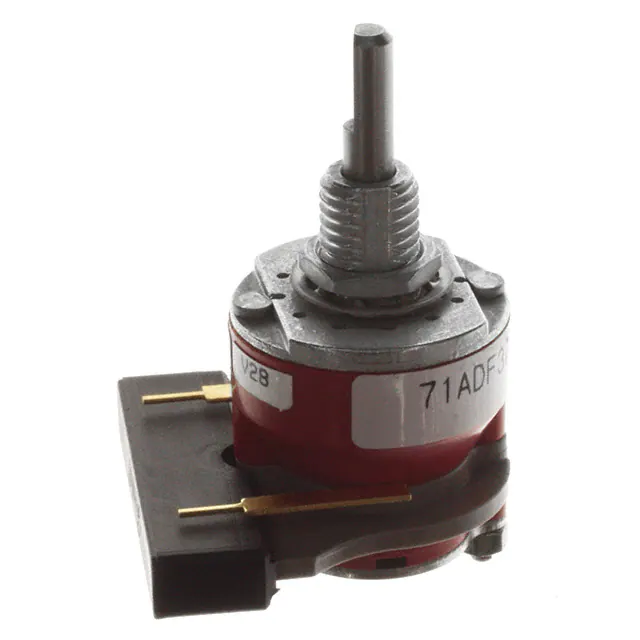

71ADF30-01-2-AJSSWITCH ROTARY 2-6POS 250MA 115V |
4,231 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
|
71BDF36-01-2-AJSSWITCH ROTARY 2-5POS 250MA 115V |
4,749 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
|
71ADF36-01-2-AJSSWITCH ROTARY 2-5POS 250MA 115V |
2,053 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
|
71BDF30-01-2-AJSSWITCH ROTARY 2-6POS 250MA 115V |
3,017 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
|
71B30-02-1-12N-FSWITCH ROTARY 12POS 250MA 115V |
3,928 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 24.87mm |
|
|
71MBF30-01C03SSWITCH ROTARY 3POS 250MA 115V |
1,589 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 2 | DP3T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
|
51MBP30-01A12NSWITCH ROTARY 12POS 150MA 115V |
3,160 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | - | 13.64mm |
|
|
51MPT30-01A12NSWITCH ROTARY 12POS 150MA 115V |
2,036 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Process Sealed | 14.63mm |
|
|
51MPT30-01B03NSWITCH ROTARY 3POS 150MA 115V |
3,699 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Process Sealed | 14.63mm |
|
|
51MPT30-01B04NSWITCH ROTARY 4POS 150MA 115V |
3,386 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Process Sealed | 14.63mm |
|
|
51MPT30-01B07NSWITCH ROTARY 7POS 150MA 115V |
4,836 |
|
Datasheet |
51 | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Process Sealed | 14.63mm |
|
|
51MPT30-01B11NSWITCH ROTARY 11POS 150MA 115V |
1,020 |
|
Datasheet |
51 | Bulk | Active | 11 | Fixed | 1 | SP11T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Process Sealed | 14.63mm |
