| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77PT36-01B10NSWITCH ROTARY 10POS 50MA 115V |
2,015 |
|
Datasheet |
77 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
50KS36-01-2-04NSWITCH ROTARY 4POS 150MA 115V |
2,917 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 36° | Gold | - | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51ESP30-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
3,539 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (4mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
50KST60-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
3,946 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | Process Sealed | 18.77mm |
|
|
51E30-01-1-12SSWITCH ROTARY 12POS 150MA 115V |
4,112 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | SP12T | Shorting (MBB) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (4mm Dia) | 9.53mm | Panel Mount | 30° | Gold | - | Solder Lug | - | 18.77mm |
|
|
51EP30-01-1-11SSWITCH ROTARY 11POS 150MA 115V |
3,723 |
|
Datasheet |
51 | Bulk | Active | 11 | Fixed | 1 | SP11T | Shorting (MBB) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (4mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Gold | - | PC Pin | - | 13.64mm |
|
77SP36-01-1-07NSWITCH ROTARY 7POS 50MA 115V |
1,278 |
|
Datasheet |
77 | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-08NSWITCH ROTARY 8POS 50MA 115V |
2,224 |
|
Datasheet |
77 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-09NSWITCH ROTARY 9POS 50MA 115V |
2,284 |
|
Datasheet |
77 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-04NSWITCH ROTARY 4POS 50MA 115V |
3,748 |
|
Datasheet |
77 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-02NSWITCH ROTARY 2POS 50MA 115V |
2,889 |
|
Datasheet |
77 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-03NSWITCH ROTARY 3POS 50MA 115V |
2,203 |
|
Datasheet |
77 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-05NSWITCH ROTARY 5POS 50MA 115V |
1,346 |
|
Datasheet |
77 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SP36-01-1-06NSWITCH ROTARY 6POS 50MA 115V |
3,122 |
|
Datasheet |
77 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|

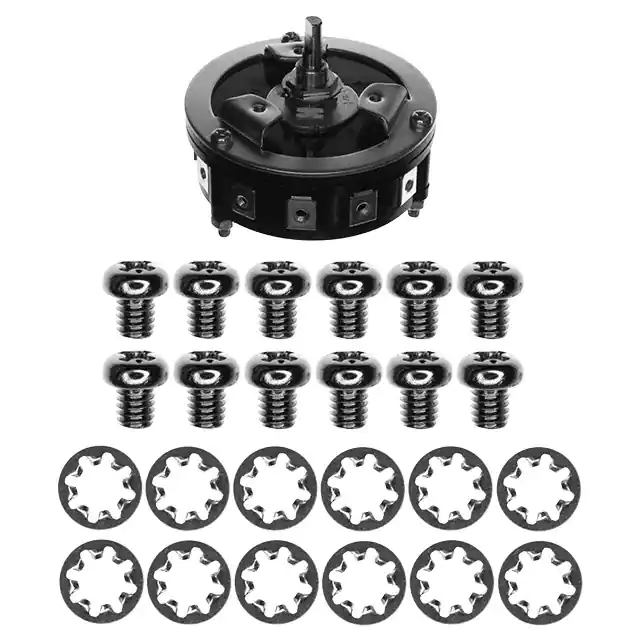

PS1NSWITCH ROTARY 2-11POS 30A 125V |
2,572 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 1 | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Silver Alloy | Screw Terminal | - | 46.50mm |
|
|
71BDF30-02-2-AJSSWITCH ROTARY 2-6POS 250MA 115V |
2,496 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Shorting (MBB) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 24.87mm |
|
|
71BDF36-02-2-AJSSWITCH ROTARY 2-5POS 250MA 115V |
3,764 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Shorting (MBB) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 24.87mm |
|
|
71ADF30-02-2-AJSSWITCH ROTARY 2-6POS 250MA 115V |
2,334 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Shorting (MBB) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 24.87mm |
|
|
75BF36-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
3,376 |
|
Datasheet |
75 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | - | 13.97mm |
|
|
75BF36-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
4,881 |
|
Datasheet |
75 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | - | 13.97mm |
