Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

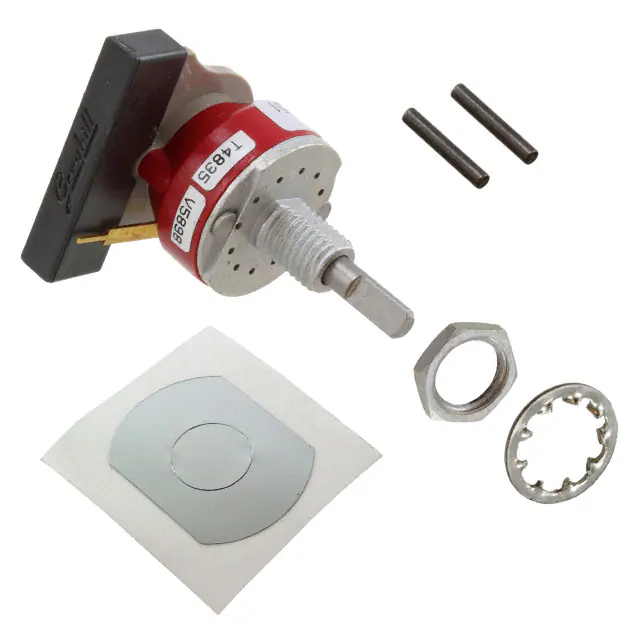

71BDF30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
402 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
56SDP30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
922 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Brass | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
MRX108-ASWITCH ROTARY 2-8POS 2A 125V |
208 |
|
Datasheet |
MR | Box | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 13.00mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
50DP36-01-1-AJNSWITCH ROTARY 2-10POS 150MA 115V |
243 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 36° | Gold | - | PC Pin | - | 13.64mm |
|

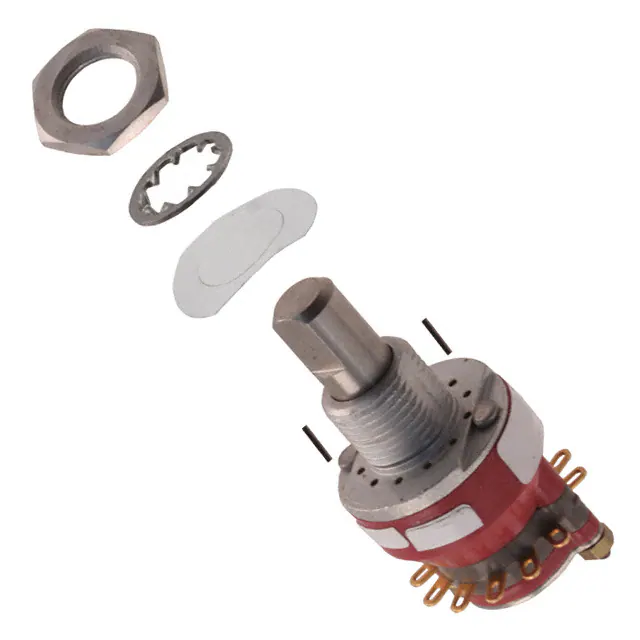

71BD30-01-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
211 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
71ADF30-01-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
111 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
50D90-01-2-AJNSWITCH ROTARY 2POS 150MA 115V |
186 |
|
Datasheet |
50 | Bulk | Active | 2 | Adjustable | 2 | DPDT | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 90° | Gold | - | Solder Lug | - | 18.77mm |
|
71BDF30-01-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
336 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 19.33mm |
|
51P22-01-1-16NSWITCH ROTARY 16POS 150MA 115V |
355 |
|
Datasheet |
51 | Bulk | Active | 16 | Continuous | 1 | SP16T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 22.5° | Gold | - | PC Pin | - | 13.64mm |
|

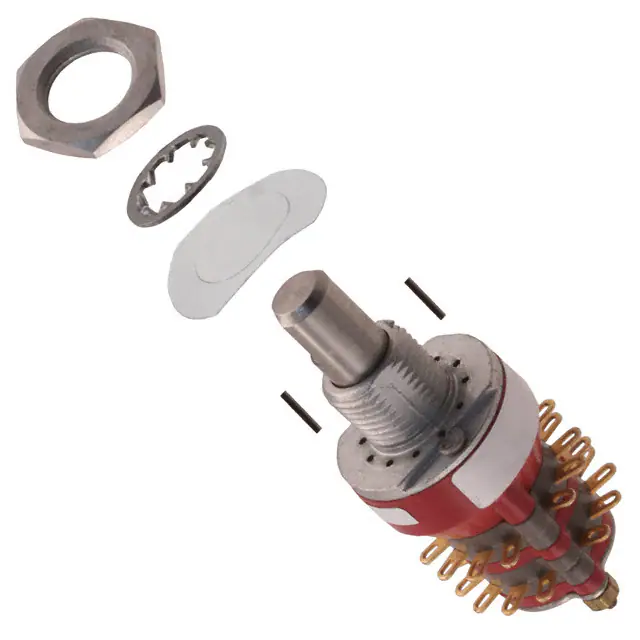

71BD30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
122 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 24.87mm |
|
71BDF30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
202 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 24.87mm |
|
71ADF30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
446 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 24.87mm |
|

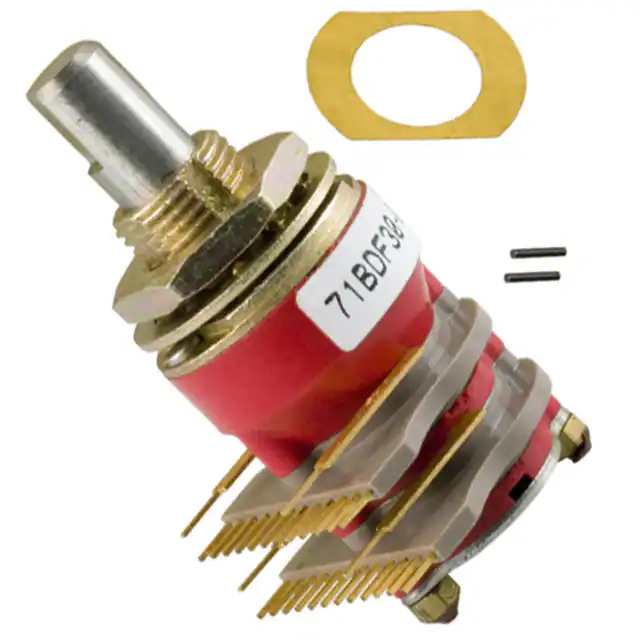

71BDF30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
179 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 24.87mm |
|
77SP36-01-1-10NSWITCH ROTARY 10POS 50MA 115V |
573 |
|
Datasheet |
77 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|

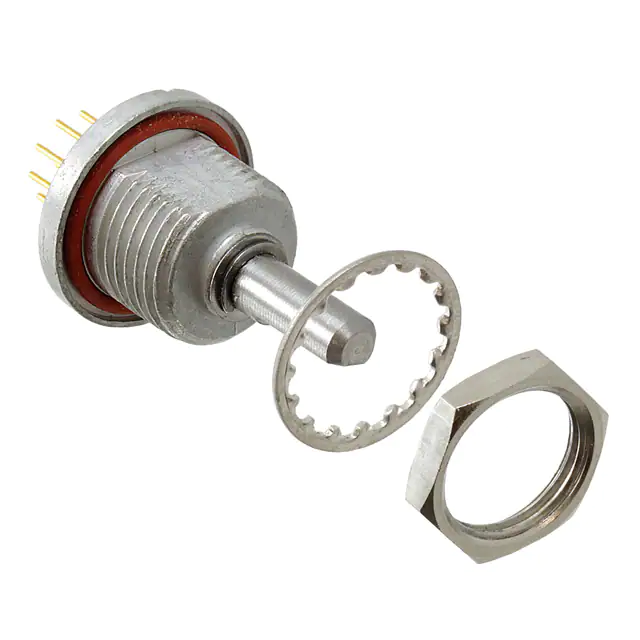

77SPT36-01-2-05NSWITCH ROTARY 5POS 50MA 115V |
174 |
|
Datasheet |
77 | Bulk | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Tin Oxide (AgSnO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
44D30-01-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
323 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
19101-04ULSWITCH ROTARY 4POS 15A 120V |
2,765 |
|
Datasheet |
19 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
19101-10ULSWITCH ROTARY 10POS 15A 120V |
110 |
|
Datasheet |
19 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|

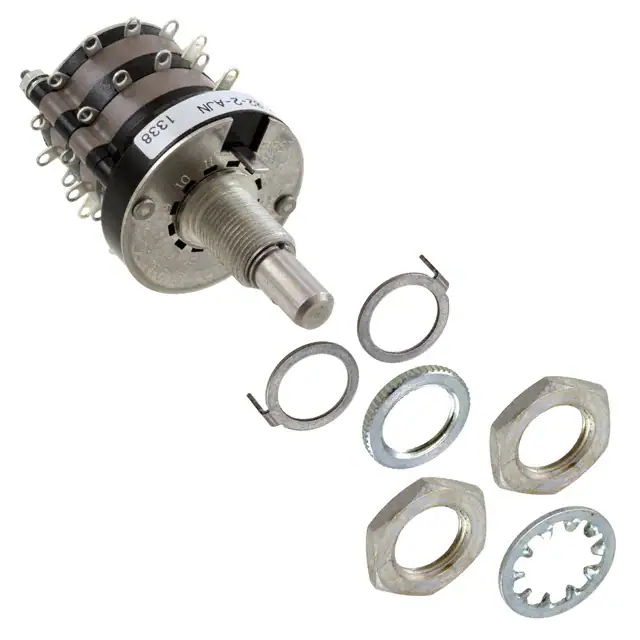

44D30-02-2-AJNSWITCH ROTARY 2-6POS 1A 115V |
3,140 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|
2925SWITCH ROTARY 8POS |
389 |
|
Datasheet |
- | Bulk | Active | 8 | Continuous | 1 | SP8T | Not Specified | 1 | - | - | - | Round (4.5mm Dia) | - | Panel Mount, Through Hole | 45° | - | - | PC Pin | - | 10.50mm |
