| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71ADF30-04-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
4,622 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 35.94mm |
|
|
71BDF36-04-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
1,544 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 35.94mm |
|
|
44A30-01-4-02NSWITCH ROTARY 2POS 1A 115V |
4,852 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44UA30-01-4-02NSWITCH ROTARY 2POS 1A 125V |
2,631 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
24001-09NSWITCH ROTARY 9POS 1A 115V |
1,597 |
|
Datasheet |
24 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | Panel Mount | 36° | Silver | Phosphor Bronze | Solder Lug | - | 14.68mm |
|
|
42A36-02-1-02NSWITCH ROTARY 2POS 1A 115V |
3,093 |
|
Datasheet |
42 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|

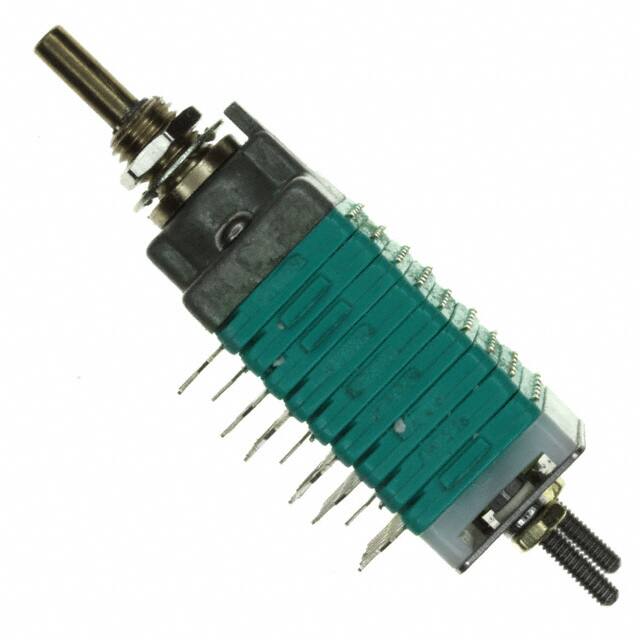

C1D0312S-VASWITCH ROTARY 2-12POS 100MA 125V |
1,675 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | 3 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 30.76mm |
|
|
09A30-01-2-03SSWITCH ROTARY 3POS 250MA 115V |
2,095 |
|
Datasheet |
9 | Bulk | Active | 3 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
08A36-01-2-02NSWITCH ROTARY 2POS 250MA 115V |
4,452 |
|
Datasheet |
08 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
71AD30-06-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
2,977 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
71BD30-06-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
4,529 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
D2D0206SSWITCH ROTARY 2-6POS 250MA 115V |
4,713 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Shorting (MBB) | 1 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 11.99mm |
|
|
71BF30-05-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
4,978 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 41.48mm |
|
|
71BF30-05-1-12N-FSWITCH ROTARY 12POS 250MA 115V |
1,751 |
|
Datasheet |
71 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 41.48mm |
|
|
443491-1-03NSWITCH ROTARY 3POS 1A 115V |
4,822 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
443491-1-03SSWITCH ROTARY 3POS 1A 115V |
1,857 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
08P36-01-1-04NSWITCH ROTARY 4POS 250MA 115V |
1,822 |
|
Datasheet |
08 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | Gold | Silver Alloy | PC Pin | - | 24.38mm |
|
|
44M30-01-1-06NSWITCH ROTARY 6POS 1A 115V |
2,538 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44M30-01-1-06SSWITCH ROTARY 6POS 1A 115V |
2,225 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | SP6T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
423481-1-03NSWITCH ROTARY 3POS 1A 115V |
2,511 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
