| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

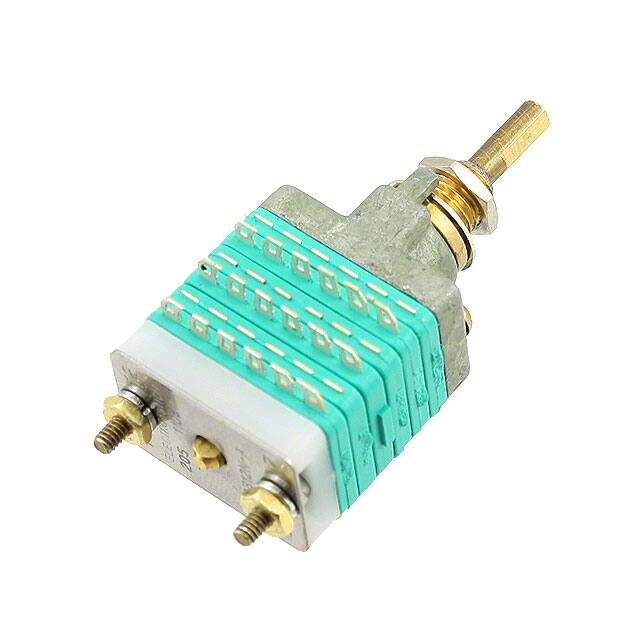

C1D0312N-ASWITCH ROTARY 2-12POS 100MA 125V |
4,361 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 3 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 30.76mm |
|
71CF30-1BD-1ALSWITCH ROTARY 4/12POS 250MA 115V |
3,093 |
|
Datasheet |
71 | Bulk | Active | 4, 12 | Continuous | 1 | SP4T, SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 19.33mm |
|
|
42A36-02-1-04NSWITCH ROTARY 4POS 1A 115V |
1,381 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|
|
42A36-02-1-04SSWITCH ROTARY 4POS 1A 115V |
4,629 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 1 | SP4T | Shorting (MBB) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|
|
C4D0312S-ASWITCH ROTARY 2-12POS 300MA 125V |
2,002 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | 3 | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 34.54mm |
|
|
42M36-01-1-05SSWITCH ROTARY 5POS 1A 115V |
3,121 |
|
Datasheet |
42 | Bulk | Active | 5 | Fixed | 1 | SP5T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
71AF30-05-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
4,603 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 41.48mm |
|
|
71BF30-05-1-11NSWITCH ROTARY 11POS 250MA 115V |
4,650 |
|
Datasheet |
71 | Bulk | Active | 11 | Fixed | 1 | SP11T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 41.48mm |
|
|
093111-1-03NSWITCH ROTARY 3POS 250MA 115V |
4,442 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
093111-1-03SSWITCH ROTARY 3POS 250MA 115V |
3,259 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
44A45-01-1-05NSWITCH ROTARY 5POS 5A 115V |
1,970 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44A60-01-1-05NSWITCH ROTARY 5POS 5A 115V |
3,075 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 60° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44M30-01-1-10NSWITCH ROTARY 10POS 1A 115V |
4,466 |
|
Datasheet |
44 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
093121-1-03NSWITCH ROTARY 3POS 250MA 115V |
4,103 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
71AS30-06-1-11NSWITCH ROTARY 11POS 250MA 115V |
2,118 |
|
Datasheet |
71 | Bulk | Active | 11 | Fixed | 1 | SP11T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 54.13mm |
|
|
71B30-06-2-06NSWITCH ROTARY 6POS 250MA 115V |
1,281 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
71B30-06-2-06SSWITCH ROTARY 6POS 250MA 115V |
3,050 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | DP6T | Shorting (MBB) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
71A30-06-2-06NSWITCH ROTARY 6POS 250MA 115V |
2,411 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
71B30-06-2-02NSWITCH ROTARY 2POS 250MA 115V |
1,905 |
|
Datasheet |
71 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 54.13mm |
|
|
C2P0308S-ASWITCH ROTARY 2-8POS 100MA 125V |
1,290 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Shorting (MBB) | 3 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 37.62mm |
