| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44A45-01-2-03NSWITCH ROTARY 3POS 5A 115V |
2,515 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44A60-01-2-03NSWITCH ROTARY 3POS 5A 115V |
2,485 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 60° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44UA45-01-2-03NSWITCH ROTARY 3POS 1A 125V |
3,879 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
42P36-02-1-03SSWITCH ROTARY 3POS 1A 115V |
2,944 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 34.82mm |
|
|
44S30-01-2-04SSWITCH ROTARY 4POS 1A 115V |
2,082 |
|
Datasheet |
44 | Bulk | Active | 4 | Fixed | 2 | DP4T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44S45-02-1-02NSWITCH ROTARY 2POS 5A 115V |
4,578 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 2 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
71B30-08-1-08NSWITCH ROTARY 8POS 250MA 115V |
3,645 |
|
Datasheet |
71 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 65.20mm |
|
|
44A30-01-6-02NSWITCH ROTARY 2POS 1A 115V |
3,491 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 6 | 6PDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44UA30-01-6-02NSWITCH ROTARY 2POS 1A 125V |
1,521 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 6 | 6PDT | Non-Shorting (BBM) | 1 | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
423491-2-04NSWITCH ROTARY 4POS 1A 115V |
4,133 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
423491-2-04SSWITCH ROTARY 4POS 1A 115V |
3,101 |
|
Datasheet |
42 | Bulk | Active | 4 | Fixed | 2 | DP4T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
C2P0308N-ASWITCH ROTARY 2-8POS 100MA 125V |
2,109 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | SP8T | Non-Shorting (BBM) | 3 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 37.62mm |
|
|
093101-2-02NSWITCH ROTARY 2POS 250MA 115V |
4,240 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
C1D0412S-VASWITCH ROTARY 2-12POS 100MA 125V |
1,876 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Shorting (MBB) | 4 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 35.84mm |
|
|
08A36-02-1-03NSWITCH ROTARY 3POS 250MA 115V |
3,659 |
|
Datasheet |
08 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Gold | Silver Alloy | Solder Lug | - | 31.19mm |
|
|
42M36-01-2-03NSWITCH ROTARY 3POS 1A 115V |
3,670 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
42M36-01-2-03SSWITCH ROTARY 3POS 1A 115V |
2,371 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 2 | DP3T | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
423521-2-02NSWITCH ROTARY 2POS 1A 115V |
3,846 |
|
Datasheet |
42 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
423531-2-02NSWITCH ROTARY 2POS 1A 115V |
3,118 |
|
Datasheet |
42 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|

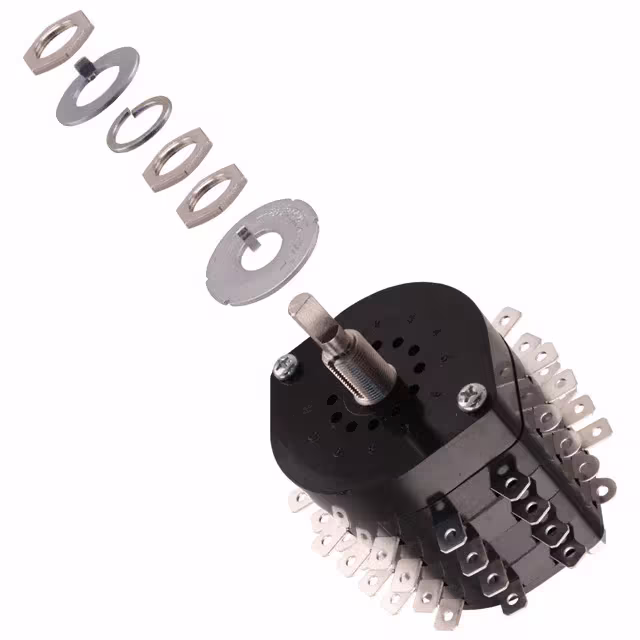

HS16-4NSWITCH ROTARY 2-11POS 12A 125V |
3,054 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 4 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 61.50mm |
