| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44M30-01-4-02NSWITCH ROTARY 2POS 1A 115V |
1,454 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44M30-01-4-02SSWITCH ROTARY 2POS 1A 115V |
4,924 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Shorting (MBB) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44A30-02-3-02SSWITCH ROTARY 2POS 1A 115V |
3,260 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 3 | 3PDT | Shorting (MBB) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|

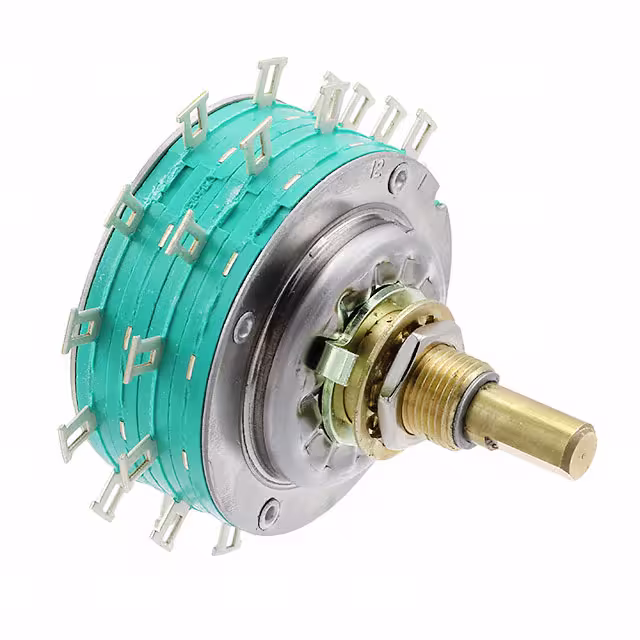

C7D0212S-30SWITCH ROTARY 12POS 500MA 125V |
4,530 |
|
Datasheet |
C7 | Bulk | Active | 12 | Fixed | 1 | SP12T | Shorting (MBB) | 2 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 32.49mm |
|
|
C7D0212S-30CSWITCH ROTARY 12POS 500MA 125V |
3,868 |
|
Datasheet |
C7 | Bulk | Active | 12 | Continuous | 1 | SP12T | Shorting (MBB) | 2 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 32.49mm |
|
|
D7G0303NSWITCH ROTARY 2-3POS 1A 115V |
4,753 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 3 | Adjustable | 3 | 3P3T | Non-Shorting (BBM) | 1 | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 16.76mm |
|
|
44M30-02-1-03NSWITCH ROTARY 3POS 1A 115V |
3,158 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|
|
09A45-01-1-06NSWITCH ROTARY 6POS 250MA 115V |
4,534 |
|
Datasheet |
09 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
09A60-01-1-06NSWITCH ROTARY 6POS 250MA 115V |
4,196 |
|
Datasheet |
09 | Bulk | Active | 6 | Continuous | 1 | SP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
C7D0212N-30SWITCH ROTARY 12POS 500MA 125V |
2,380 |
|
Datasheet |
C7 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 2 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 32.49mm |
|
|
C7D0212N-30CSWITCH ROTARY 12POS 500MA 125V |
2,312 |
|
Datasheet |
C7 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 2 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 32.49mm |
|
|
C4D0904S-ASWITCH ROTARY 2-4POS 300MA 125V |
3,420 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 3P4T | Shorting (MBB) | 3 | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 34.54mm |
|
|
44MS30-01-1-05NSWITCH ROTARY 5POS 1A 115V |
1,166 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44HS30-01-1-04NSWITCH ROTARY 4POS 1A 115V |
2,568 |
|
Datasheet |
44 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
71ESF30-05-2-04NSWITCH ROTARY 4POS 250MA 115V |
4,344 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | Shaft and Panel Sealed | 41.48mm |
|
|
71C30-1BG-1ALSWITCH ROTARY 12/8POS 250MA 115V |
1,017 |
|
Datasheet |
71 | Bulk | Active | 12, 8 | Continuous | 1 | SP12T, SP8T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | - |
|
|
71B30-08-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
3,052 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 65.20mm |
|
|
71A30-08-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
3,212 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 65.20mm |
|
|
71A36-08-1-08NSWITCH ROTARY 8POS 250MA 115V |
1,904 |
|
Datasheet |
71 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 65.20mm |
|
|
71B30-08-1-10NSWITCH ROTARY 10POS 250MA 115V |
2,885 |
|
Datasheet |
71 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 65.20mm |
