| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75BP36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
1,628 |
|
Datasheet |
75 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | - | 12.70mm |
|
50KM36-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
3,596 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Gold | - | Solder Lug | - | 18.77mm |
|

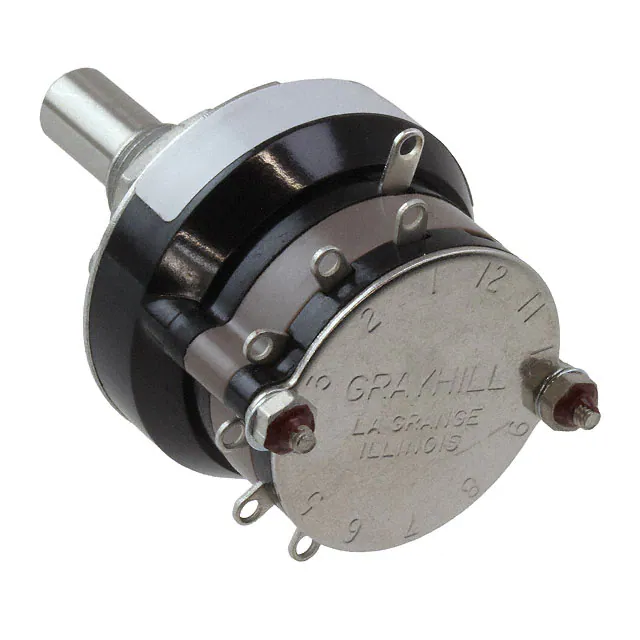

44A30-01-1-06NSWITCH ROTARY 6POS 1A 115V |
3,191 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|

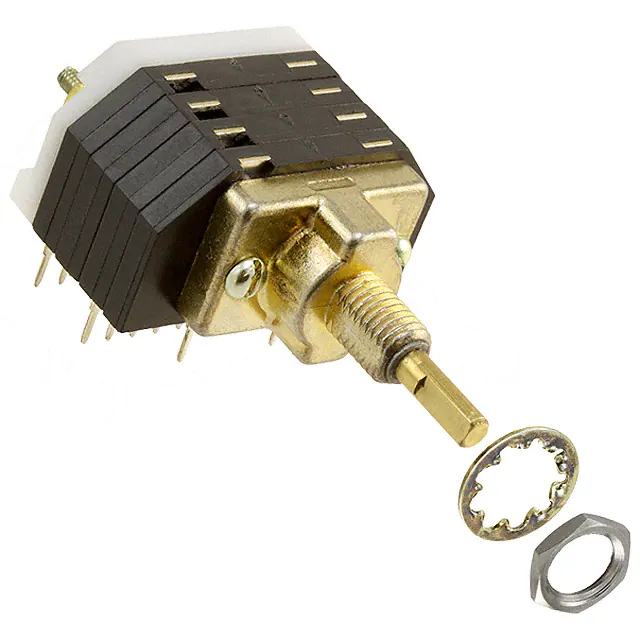

C3P0604N-ASWITCH ROTARY 2-4POS 100MA 125V |
3,732 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 4 | Adjustable | 3 | 3P4T | Non-Shorting (BBM) | 2 | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | Panel Mount, Through Hole, Right Angle | 30° | Silver | Brass | PC Pin | - | 30.00mm |
|
C7D0123NSWITCH ROTARY 23POS 500MA 125V |
2,408 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 1 | SP23T | Non-Shorting (BBM) | 1 | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | Panel Mount | 15° | Silver | Brass | Solder Lug | - | 20.60mm |
|
D2D0112NSWITCH ROTARY 2-12POS 250MA 115V |
2,298 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 11.99mm |
|

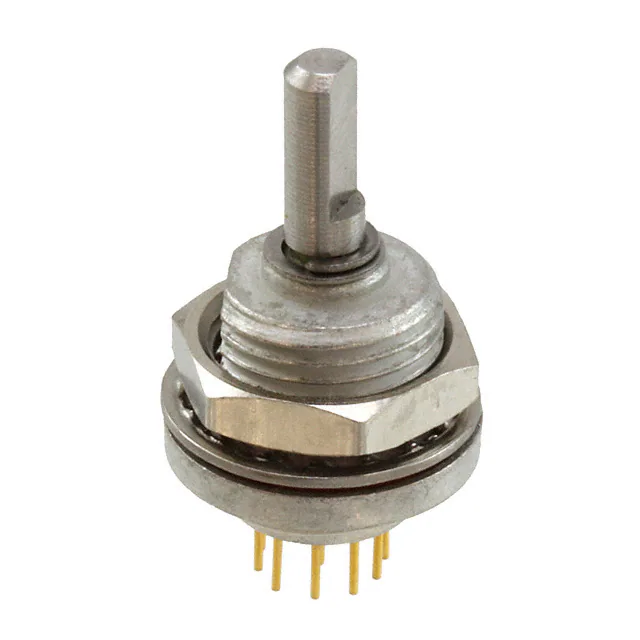

77SPT36-01-1-10S-CSWITCH ROTARY 10POS 50MA 115V |
4,579 |
|
Datasheet |
77 | Bulk | Active | 10 | Continuous | 1 | SP10T | Shorting (MBB) | 1 | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | Panel Mount, Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | Shaft and Panel Sealed | 4.57mm |
|

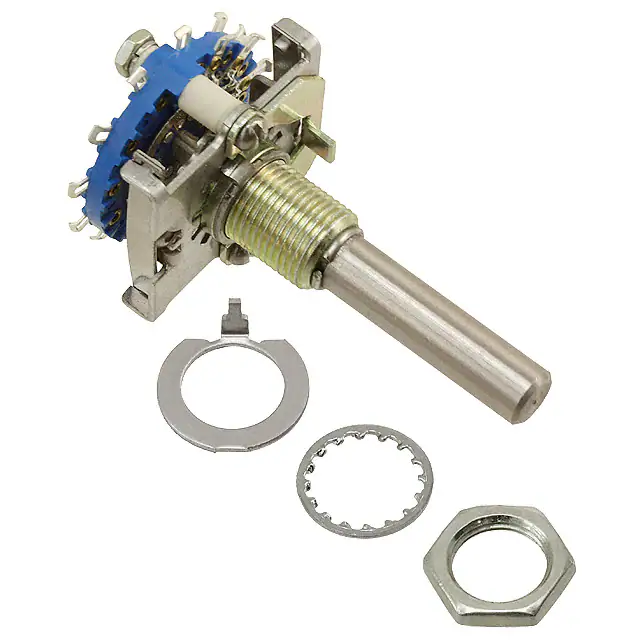

D2D0305NSWITCH ROTARY 2-5POS 250MA 115V |
3,748 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 3P5T | Non-Shorting (BBM) | 1 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 11.99mm |
|
19101-08ULSWITCH ROTARY 8POS 15A 120V |
1,800 |
|
Datasheet |
19 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
D4G0211NSWITCH ROTARY 2-11POS 500MA 115V |
2,546 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 2 | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 28.55mm |
|
D4G0405NSWITCH ROTARY 2-5POS 500MA 115V |
3,178 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 2 | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 28.55mm |
|
44HS30-01-2-02NSWITCH ROTARY 2POS 1A 115V |
1,326 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
44D30-01-2-AJNSWITCH ROTARY 2-6POS 1A 115V |
1,964 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
19001-06ULSWITCH ROTARY 6POS 15A 120V |
2,813 |
|
Datasheet |
19 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 24.13mm |
|
D2D0605NSWITCH ROTARY 2-5POS 250MA 115V |
2,926 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 3P5T | Non-Shorting (BBM) | 2 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.34mm |
|
D2D0406NSWITCH ROTARY 2-6POS 250MA 115V |
4,881 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 2 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.34mm |
|
42D36-02-2-AJNSWITCH ROTARY 2-5POS 1A 115V |
4,101 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 34.82mm |
|
19001-10ULSWITCH ROTARY 10POS 15A 120V |
4,776 |
|
Datasheet |
19 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 24.13mm |
|
D4G0411NSWITCH ROTARY 2-11POS 500MA 115V |
4,808 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 4 | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 57.10mm |
|
RM101002BCBSWITCH ROTARY 2POS 500MA 24V |
4,937 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | SPST | Non-Shorting (BBM) | 1 | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | Through Hole | 45° | Gold | Brass | PC Pin | - | 7.37mm |
