| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09A45-04-2-04NSWITCH ROTARY 4POS 250MA 115V |
4,794 |
|
Datasheet |
09 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | Silver Alloy | Solder Lug | - | 44.81mm |
|
|
D7G0903NSWITCH ROTARY 2-3POS 1A 115V |
2,797 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 3 | Adjustable | 3 | 3P3T | Non-Shorting (BBM) | 3 | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 70.71mm |
|
|
D7C0405NSWITCH ROTARY 2-5POS 1A 115V |
2,601 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | 2 | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 47.32mm |
|
|
44A90-10-1-02NSWITCH ROTARY 2POS 5A 115V |
3,615 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 10 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 90° | - | Silver Alloy | Solder Lug | - | 111.48mm |
|
|
44H30-04-1-12NSWITCH ROTARY 12POS 1A 115V |
1,274 |
|
Datasheet |
44 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 4 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 52.40mm |
|
|
09M30-02-4-03NSWITCH ROTARY 3POS 250MA 115V |
2,526 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 31.19mm |
|

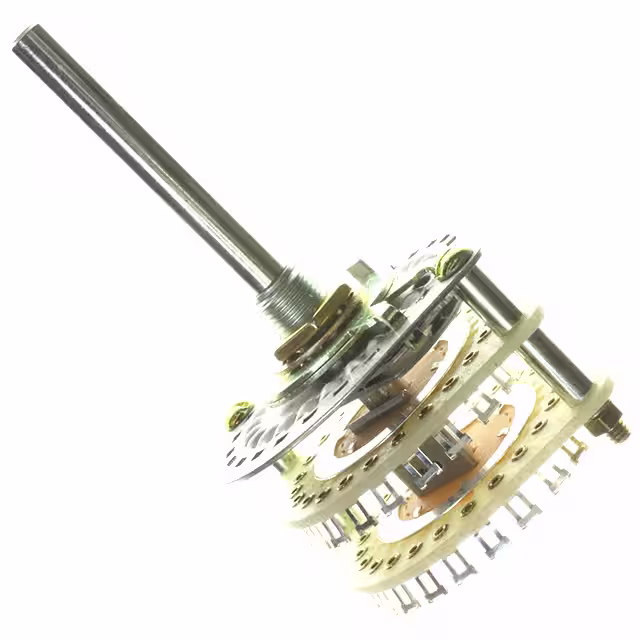

D9G0223NSWITCH ROTARY 2-23POS 250MA 115V |
3,808 |
|
Datasheet |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 1 | SP23T | Non-Shorting (BBM) | 2 | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 15° | Silver | Brass | Solder Lug | - | 26.47mm |
|
|
44M90-06-1-02NSWITCH ROTARY 2POS 5A 115V |
2,461 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 6 | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 90° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
09A30-06-1-07NSWITCH ROTARY 7POS 250MA 115V |
3,881 |
|
Datasheet |
09 | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 6 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 64.77mm |
|
|
42D36-06-1-AJNSWITCH ROTARY 2-10POS 1A 115V |
3,021 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 6 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
42A36-06-1-10NSWITCH ROTARY 10POS 1A 115V |
2,466 |
|
Datasheet |
42 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 6 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
42A36-06-1-10N-FSWITCH ROTARY 10POS 1A 115V |
2,267 |
|
Datasheet |
42 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 6 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
42UD36-06-1-AJSSWITCH ROTARY 2-10POS 1A 125V |
2,939 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Shorting (MBB) | 6 | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
09MS45-02-2-03NSWITCH ROTARY 3POS 250MA 115V |
2,893 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 31.19mm |
|
|
44A30-06-1-12NSWITCH ROTARY 12POS 1A 115V |
4,647 |
|
Datasheet |
44 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 6 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
44D30-06-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
1,556 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 6 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 76.33mm |
|
|
09M30-05-1-08NSWITCH ROTARY 8POS 250MA 115V |
4,838 |
|
Datasheet |
09 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 5 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 51.61mm |
|
|
44HBGS30-01G02NSWITCH ROTARY 2POS 1A 115V |
2,526 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 6 | 6PDT | Non-Shorting (BBM) | - | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | - |
|
|
44M45-04-2-03NSWITCH ROTARY 3POS 5A 115V |
1,117 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 4 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | - | 52.40mm |
|
|
44M60-04-2-03NSWITCH ROTARY 3POS 5A 115V |
1,005 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | 4 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 60° | - | Silver Alloy | Solder Lug | - | 52.40mm |
