| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50A45-01-1-05NSWITCH ROTARY 5POS 150MA 115V |
3,500 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | - | Solder Lug | - | 18.77mm |
|
|
50A60-01-1-02NSWITCH ROTARY 2POS 150MA 115V |
3,864 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 60° | Gold | - | Solder Lug | - | 18.77mm |
|
|
50A45-01-2-04NSWITCH ROTARY 4POS 150MA 115V |
3,351 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 45° | Gold | - | Solder Lug | - | 18.77mm |
|
MA03S2NZGDSWITCH ROTARY 3POS 250MA 125V |
4,989 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | Panel Mount | 36° | Gold | Copper Alloy | Solder Lug | - | 14.86mm |
|
|
56S30-01-4-03NSWITCH ROTARY 3POS 200MA 115V |
2,514 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|

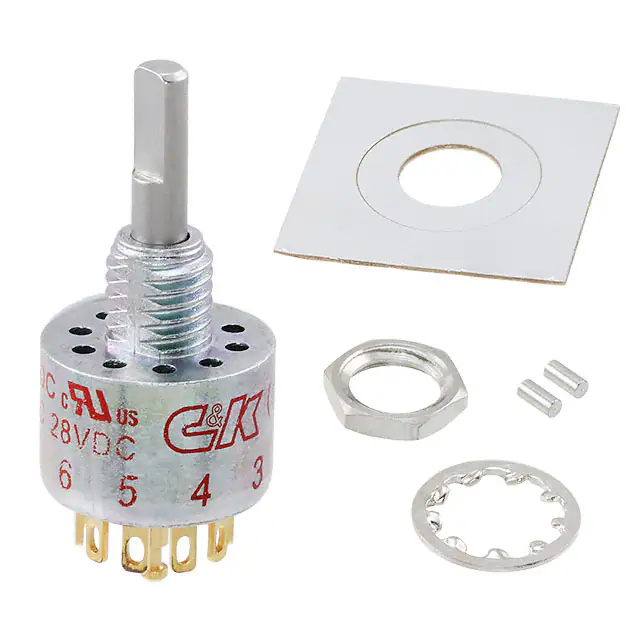

MA00S1NZGDSWITCH ROTARY 10POS 250MA 125V |
4,937 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount | 36° | Gold | Copper Alloy | Solder Lug | - | 14.86mm |
|
|
MRA112/208-BFHALF-INCH DIAMETER PROCESS SEALE |
4,069 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC) | 125 V | - | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Silver | Copper | PC Pin | Process Sealed | 17.00mm |
|
|
50MP36-01-1-03NSWITCH ROTARY 3POS 150MA 115V |
4,519 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 36° | Gold | - | PC Pin | Process Sealed | 13.64mm |
|
|
51A30-01-3-04NSWITCH ROTARY 4POS 150MA 115V |
2,950 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | - | Solder Lug | - | 18.77mm |
|
|
56BD30-01-4-AJNSWITCH ROTARY 2-3POS 200MA 115V |
3,819 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 3 | Adjustable | 4 | 4P3T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
MRX402-BBSWITCH ROTARY 2POS 2A 125V |
2,507 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BCSWITCH ROTARY 2POS 2A 125V |
4,076 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BHSWITCH ROTARY 2POS 2A 125V |
3,861 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BFSWITCH ROTARY 2POS 2A 125V |
2,077 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
75AF36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
1,801 |
|
Datasheet |
75 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | Flush | Through Hole | 36° | Gold | Silver Cadmium Oxide (AgCdO) | PC Pin | - | 13.69mm |
|
|
50MT36-01-2-03SSWITCH ROTARY 0.2A DP3T |
1,774 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
50SP60-01-2-02NSWITCH ROTARY 2POS 150MA 115V |
2,466 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole | 60° | Gold | - | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
MRX402-CASWITCH ROTARY 2POS 2A 125V |
2,012 |
|
Datasheet |
MR | Box | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 1 | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | Panel Mount, Through Hole | 45° | - | Silver Alloy | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
51S30-01-1-06NSWITCH ROTARY 6POS 150MA 115V |
1,663 |
|
Datasheet |
51 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | - | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51S30-01-4-02SSWITCH ROTARY 2POS 150MA 115V |
1,276 |
|
Datasheet |
51 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Shorting (MBB) | 1 | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | - | Solder Lug | Shaft and Panel Sealed | 18.77mm |
