Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
57HS22-01-1-08SSWITCH ROTARY 8POS 250MA 115V |
4,903 |
|
Datasheet |
57 | Bulk | Active | 8 | Fixed | 1 | SP8T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 22.5° | Gold | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 23.27mm |
|
|
57M22-01-6-02NSWITCH ROTARY 2POS 250MA 115V |
1,606 |
|
Datasheet |
57 | Bulk | Active | 2 | Fixed | 6 | 6PDT | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 22.5° | Gold | Silver Alloy | Solder Lug | - | 23.27mm |
|
|
57M22-03-8-02SSWITCH ROTARY 2POS 250MA 115V |
4,324 |
|
Datasheet |
57 | Bulk | Active | 2 | Fixed | 8 | 8PDT | Shorting (MBB) | 3 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 22.5° | Gold | Silver Alloy | Solder Lug | - | 40.18mm |
|
|
57M22-12-1-13NSWITCH ROTARY 13POS 250MA 115V |
3,803 |
|
Datasheet |
57 | Bulk | Active | 13 | Fixed | 1 | SP13T | Non-Shorting (BBM) | 12 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 22.5° | Gold | Silver Alloy | Solder Lug | - | 122.66mm |
|
|
59M18-04-1-16NSWITCH ROTARY 16POS 250MA 115V |
1,040 |
|
Datasheet |
59 | Bulk | Active | 16 | Fixed | 1 | SP16T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 18° | Gold | Silver Alloy | Solder Lug | - | 48.64mm |
|
|
59M18-04-4-05NSWITCH ROTARY 5POS 250MA 115V |
4,795 |
|
Datasheet |
59 | Bulk | Active | 5 | Fixed | 4 | 4P5T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 18° | Gold | Silver Alloy | Solder Lug | - | 48.64mm |
|
|
42056SWITCH ROTARY |
3,856 |
|
Datasheet |
42 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RTAP43S02W25NSSWITCH ROTARY 2POS 150MA 60V |
3,894 |
|
Datasheet |
RTA | Bulk | Obsolete | 2 | Fixed | 3 | 3PDT | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (6mm Dia), Slotted | 25.00mm | Through Hole | 36° | Silver | Brass | PC Pin | - | 12.60mm |
|
|
HS16-1N-AT431SWITCH ROTARY |
2,902 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS13X-D-AT431SWITCH ROTARY |
1,829 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS16-1SN-AT431SWITCH ROTARY |
3,441 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
86A4A-L33-BA0/679LSWITCH ROTARY PNL CTRL SQ 5/8" |
2,719 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
84A2A-GZZ-CA0/056LSWITCH ROTARY PNL CTRL SQ 5/8" |
2,269 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MRE3-3G-ZSWITCH ROTARY |
2,191 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MR1-12-ZSWITCH ROTARY |
3,150 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M20 Z A1+003+G2SWITCH ROTARY 2POS 35A 600V |
4,175 |
|
Datasheet |
M20 | Box | Active | 2 | - | - | - | - | - | 35A | 600 V | - | Knob | - | Panel Mount | - | - | - | Screw Terminal | - | - |
|
|
51MY23741BINARY MECHANICAL ENCODER |
2,425 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

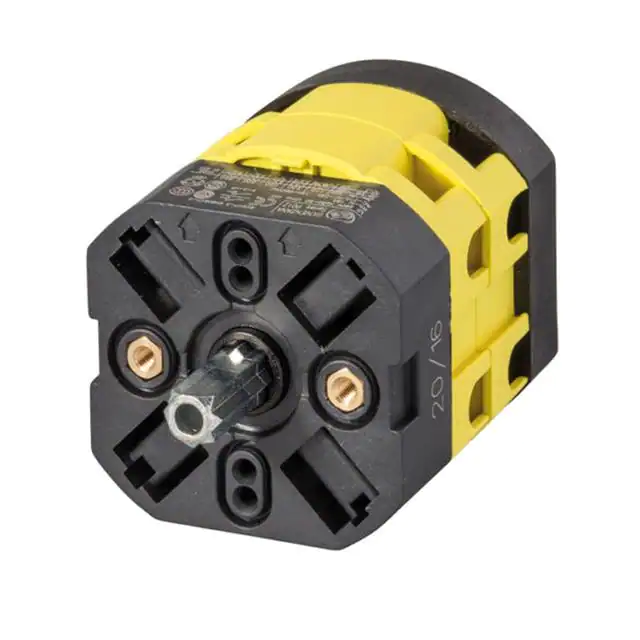

P0200002RSWITCH ROTARY 2POS 20A 600V |
2,603 |
|
Datasheet |
- | Box | Active | 2 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | - | - | Panel Mount | - | - | - | - | - | - |
|
|
KC1056WITHHICKOKMODSWITCH ROTARY 12POS 350MA 125V |
4,738 |
|
Datasheet |
KC | Bulk | Obsolete | 12 | Continuous | 3 | 3P12T | Not Specified | 1 | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | Panel Mount, Through Hole | 30° | - | Copper Alloy | PC Pin | - | 14.10mm |
|
|
KC55A9.501NPSSWITCH ROTARY 3POS 350MA 125V |
2,884 |
|
Datasheet |
KC | Bulk | Obsolete | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | Panel Mount, Through Hole | 60° | Silver | Copper Alloy | PC Pin | - | 14.20mm |
