| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71C301206N-1206NSWITCH ROTARY 6POS 250MA 115V |
4,002 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 35.94mm |
|
|
093112-1-03NSWITCH ROTARY 3POS 250MA 115V |
2,863 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 2 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 31.19mm |
|
M10H E A1+003+SV1SWITCH ROTARY 2POS 20A 600V |
4,457 |
|
Datasheet |
M10H | Box | Active | 2 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | Knob | - | Panel Mount | - | - | - | Screw Terminal | - | - |
|
|
093111-4-03SSWITCH ROTARY 3POS 250MA 115V |
1,250 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 4 | 4P3T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
|
09A30-01-4-03SSWITCH ROTARY 3POS 250MA 115V |
4,457 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 4 | 4P3T | Shorting (MBB) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
|
M10H Z A1+003+G2SWITCH ROTARY 2POS 20A 600V |
3,953 |
|
Datasheet |
M10H | Box | Active | 2 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | Knob | - | Panel Mount | - | - | - | Screw Terminal | - | - |
|
|
71BDF36-08-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
3,060 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Non-Shorting (BBM) | 8 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 36° | - | Silver Alloy | PC Pin | - | 65.20mm |
|
|
711-4ESWITCH ROTARY 4POS 7A 125V |
2,550 |
|
Datasheet |
711 | Bulk | Obsolete | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver Alloy | Solder, Quick Connect - 0.187" (4.7mm) | - | 20.60mm |
|
|
71AF30-04-1-12N-CSWITCH ROTARY 12POS 250MA 115V |
2,569 |
|
Datasheet |
71 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 4 | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount, Through Hole, Right Angle | 30° | - | Silver Alloy | PC Pin | - | 35.94mm |
|
71AF30-04A12N71AF30-04-1-12N-C |
2,540 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
71MB30-03-4-02NSWITCH ROTARY 2POS 250MA 115V |
4,196 |
|
Datasheet |
71 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | 3 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 30.40mm |
|
|
44HS45-01-2-03SSWITCH ROTARY 3POS 5A 115V |
4,274 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 2 | DP3T | Shorting (MBB) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
423501-1-03NSWITCH ROTARY 3POS 1A 115V |
3,781 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44HS30-02-1-12NSWITCH ROTARY 12POS 1A 115V |
1,086 |
|
Datasheet |
44 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
44M30-01-1-07NSWITCH ROTARY 7POS 1A 115V |
1,088 |
|
Datasheet |
44 | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44A90-01-1-02NSWITCH ROTARY 2POS 5A 115V |
1,182 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 90° | - | Silver Alloy | Solder Lug | - | 26.04mm |
|
|
44M60-03-1-03NSWITCH ROTARY 3POS 5A 115V |
1,644 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 3 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 60° | - | Silver Alloy | Solder Lug | - | 43.61mm |
|

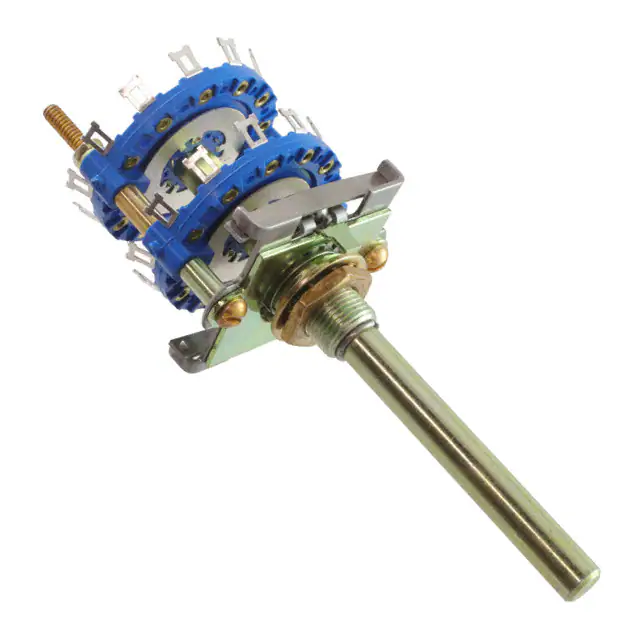

D6D0212NSWITCH ROTARY 2-12POS 500MA 115V |
3,562 |
|
Datasheet |
D6 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 2 | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 30.00mm |
|
|
08A36-03-1-08NSWITCH ROTARY 8POS 250MA 115V |
3,677 |
|
Datasheet |
08 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 3 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Gold | Silver Alloy | Solder Lug | - | 38.00mm |
|
|
093101-1-03NSWITCH ROTARY 3POS 250MA 115V |
4,451 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver Alloy | Solder Lug | - | 24.38mm |
