| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2D0606NSWITCH ROTARY 2-6POS 250MA 115V |
4,542 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | 3 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 24.69mm |
|
A10315RSZQSWITCH ROTARY 3POS 2.5A 125V |
2,196 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A106S1MNCQSWITCH ROTARY 6POS 2.5A 125V |
4,355 |
|
Datasheet |
A | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
|
A10003RNCQSWITCH ROTARY 12POS 2.5A 125V |
2,188 |
|
Datasheet |
A | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (9.53mm Dia) | 38.10mm | Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
|
A10505MNCQESWITCH ROTARY 5POS 2.5A 125V |
4,873 |
|
Datasheet |
A | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
|
A104S1RNZQSWITCH ROTARY 1-4POLE |
4,802 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A10442MNCQSWITCH ROTARY 4POS 2.5A 125V |
4,392 |
|
Datasheet |
A | Bulk | Active | 4 | - | 1 | SP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | - | Flatted (6.35mm Dia) | 42.00mm | Through Hole | 30° | - | Silver (Ag) | PC Pin | - | - |
|

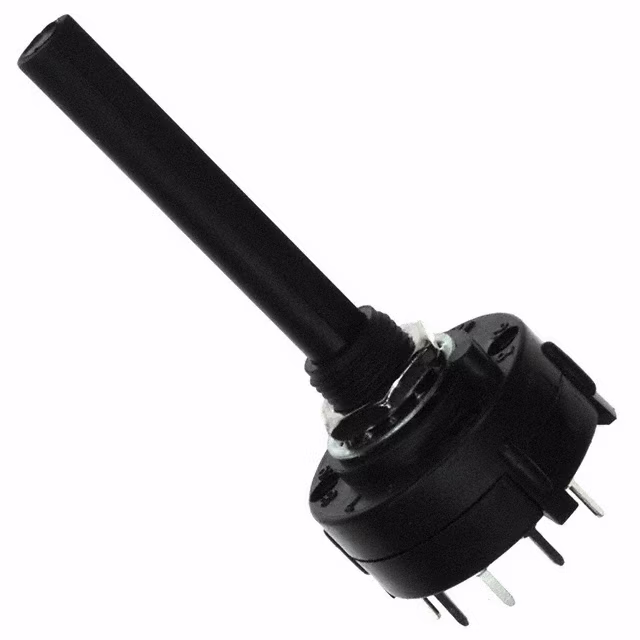

A10815RNCQSWITCH ROTARY 8POS 2.5A 125V |
2,553 |
|
Datasheet |
A | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
|
A30315RNZQSWITCH ROTARY 3POS 2.5A 125V |
2,590 |
|
Datasheet |
A | Bulk | Active | 3 | - | 3 | 3P3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 A | - | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | - | Silver (Ag) | Solder Lug | - | - |
|
|
A20405RNZQSWITCH ROTARY 4POS 2.5A 125V |
4,294 |
|
Datasheet |
A | Bulk | Active | 4 | - | 2 | DP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | - | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 30° | - | Silver (Ag) | Solder Lug | - | - |
|
|
A10405RNCQKSWITCH ROTARY 1-4POLE |
4,697 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A10715RNZQSWITCH ROTARY 7POS 2.5A 125V |
1,604 |
|
Datasheet |
A | Tray | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A30403RNCQSWITCH ROTARY 4POS 2.5A 125V |
4,931 |
|
Datasheet |
A | Bulk | Active | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
R10007RN02BSWITCH ROTARY 10POS 0.4VA 20V |
2,844 |
|
Datasheet |
R | Bag | Active | 10 | Continuous | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | Through Hole | 36° | Gold | Copper | PC Pin | - | 10.29mm |
|

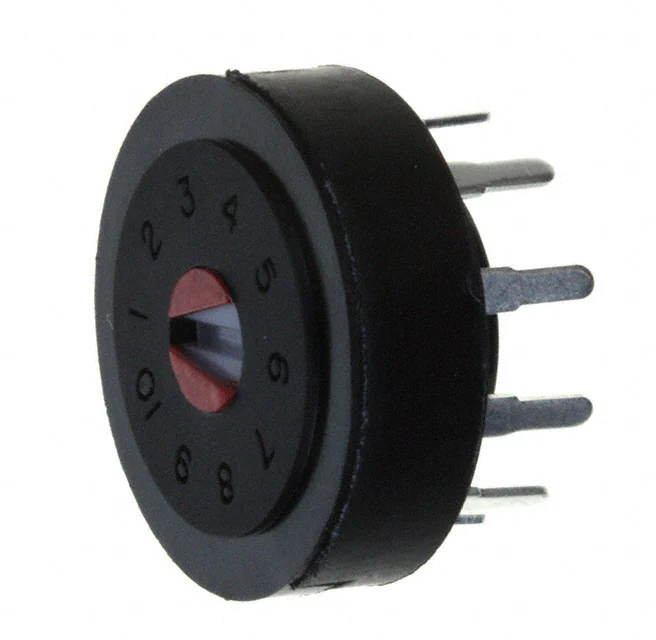

R10015RS02QSWITCH ROTARY 10POS 5A 125V |
2,428 |
|
Datasheet |
R | Tray | Active | 10 | Continuous | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | 1 | 5A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Through Hole | 36° | Silver | Copper | PC Pin | - | 10.29mm |
|
A20403RNMCQSWITCH ROTARY 4POS 2.5A 125V |
3,042 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | Modular Base | 14.48mm |
|
|
A10303RSZQSWITCH ROTARY 3POS 2.5A 125V |
2,908 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A40303MNZQSWITCH ROTARY 3POS 2.5A 125V |
2,608 |
|
Datasheet |
A | Bulk | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
|
|
A20642RNCQSWITCH ROTARY 6POS 2.5A 125V |
4,758 |
|
Datasheet |
A | Bulk | Active | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Round (6mm Dia) | 42.00mm | Panel Mount, Through Hole | 30° | Silver | Silver (Ag) | PC Pin | - | 14.48mm |
|
|
A10603RNZQSWITCH ROTARY 6POS 2.5A 125V |
2,964 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Silver (Ag) | Solder Lug | - | 20.83mm |
