| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56A36-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
2,498 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
1,706 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-09NSWITCH ROTARY 9POS 200MA 115V |
4,036 |
|
Datasheet |
56 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56B36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
2,064 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56B36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
1,211 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56B36-01-1-09NSWITCH ROTARY 9POS 200MA 115V |
2,865 |
|
Datasheet |
56 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56B36-01-1-10N-FSWITCH ROTARY 10POS 200MA 115V |
1,693 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-10N-CSWITCH ROTARY 10POS 200MA 115V |
2,869 |
|
Datasheet |
56 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-10N-FSWITCH ROTARY 10POS 200MA 115V |
4,267 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
MA00L2NCQDSWITCH ROTARY 10POS 250MA 125V |
3,729 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | Panel Mount, Through Hole | 36° | Silver | Copper Alloy | PC Pin | - | 10.42mm |
|
A11242MNCBSWITCH ROTARY 12POS 0.4VA 20V |
4,843 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | Panel Mount, Through Hole | 30° | Gold | Copper Alloy | PC Pin | - | 14.48mm |
|
|
56B36-01-1-08NSWITCH ROTARY 8POS 200MA 115V |
4,029 |
|
Datasheet |
56 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | Panel Mount | 36° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
A40303RNZGKSWITCH ROTARY 3POS 2.5A 125V |
4,618 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 4 | 4P3T | Non-Shorting (BBM) | 1 | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | Panel Mount | 30° | Gold | Silver (Ag) | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
|
435097-1SWITCH ROTARY 10POS W/ THUMBWHL |
2,001 |
|
Datasheet |
6000 | Box | Obsolete | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 1 | - | - | - | Thumbwheel | Flush | Through Hole | 36° | Gold | Phosphor Bronze | PC Pin | - | - |
|
|
MA00S2NCQDSWITCH ROTARY HALF-INCH |
3,152 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MRK403-BHSWITCH ROTARY 2-3POS 0.4VA 28V |
4,758 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 3 | Adjustable | 4 | 4P3T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | Panel Mount, Through Hole | 30° | Gold | Phosphor Bronze | PC Pin | Process Sealed | 10.10mm |
|
|
MA03L1NCGFSWITCH ROTARY 3POS 0.4VA 20V |
1,333 |
|
Datasheet |
M | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount, Through Hole | 36° | Gold | Copper Alloy | PC Pin | IP67 - Dust Tight, Waterproof | 14.20mm |
|

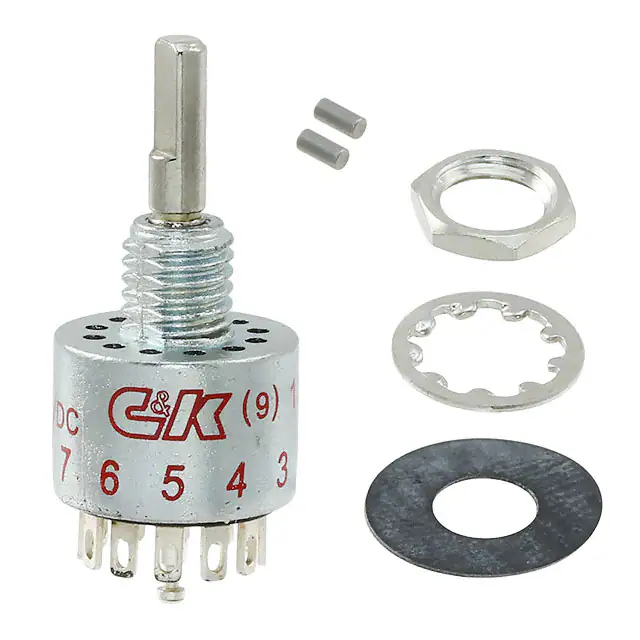

MC00L1NZQFSWITCH ROTARY 12POS 250MA 125V |
3,392 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | Panel Mount | 30° | Silver | Copper Alloy | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
56A30-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
3,964 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-07NSWITCH ROTARY 7POS 200MA 115V |
4,642 |
|
Datasheet |
56 | Bulk | Active | 7 | Fixed | 1 | SP7T | Non-Shorting (BBM) | 1 | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
