| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Number of Positions | Voltage Rating - DC | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Mounting Style | Features | Termination Style | Ingress Protection | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22R-S3M11SWITCH SELECT 3POS DPST 10A 120V |
2,632 |
|
Datasheet |
A22RS | Bulk | Obsolete | Standard | DPST-NO/NC | On-Off-Off, On-On-Off | 10A (AC) | 120 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Bezel - Round | Screw Terminal | IP65 - Dust Tight, Water Resistant | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
3069700SWITCH SELECT 4POS SP3T 20A 300V |
2,841 |
|
Datasheet |
- | Bulk | Obsolete | Voltmeter Changeover | SP3T | Off-On-On-On | 20A (AC) | 300 V | 4 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-L1-L2-L2-L3-L3-L1 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069701SWITCH SELECT 7POS SP6T 20A 300V |
1,311 |
|
Datasheet |
- | Bulk | Obsolete | Voltmeter Changeover | SP6T | - | 20A (AC) | 300 V | 7 | - | Non-Illuminated | - | - | Panel Mount | Marking: L3-L1-L2-L3-L1-L2-0-L1-N-L2-N-L3-N | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069702SWITCH SELECT 3POS SP3T 20A 300V |
1,031 |
|
Datasheet |
- | Bulk | Obsolete | Voltmeter Changeover | SP3T | On-On-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-L1-L2-L2-L3-L3-L1 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069703SWITCH SELECT 4POS SP3T 20A 300V |
4,223 |
|
Datasheet |
- | Bulk | Obsolete | Ammeter Changeover | SP3T | Off-On-On-On | 20A (AC) | 300 V | 4 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1-2-3 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069704SWITCH SELECT 4POS SP3T 20A 300V |
1,021 |
|
Datasheet |
- | Bulk | Obsolete | Ammeter Changeover | SP3T | Off-On-On-On | 20A (AC) | 300 V | 4 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1-2-3 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069705SWITCH SELECT 2POS SPST 20A 300V |
3,436 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPST | Off-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: STOP-START | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069726SWITCH SELECT 3POS SPDT 20A 300V |
1,120 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | On-Off-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-0-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069706SWITCH SELECT 2POS SPST 20A 300V |
2,290 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPST | Off-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069707SWITCH SELECT 2POS SPST 20A 300V |
3,092 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPST | Off-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069708SWITCH SELECT 2POS SPST 20A 300V |
3,589 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPST | Off-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069711SWITCH SELECT 3POS SPDT 20A 300V |
3,670 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | On-Off-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-0-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
3069712SWITCH SELECT 3POS SPDT 20A 300V |
2,583 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | On-Off-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-0-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069715SWITCH SELECT 2POS SPDT 20A 300V |
4,907 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | On-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-0-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069717SWITCH SELECT 3POS SPDT 20A 300V |
3,786 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | Off-On-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
3069716SWITCH SELECT 4POS SP3T 20A 300V |
3,209 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SP3T | Off-On-On-On | 20A (AC) | 300 V | 4 | - | Non-Illuminated | - | - | Panel Mount | Marking: 0-1-2-3 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|

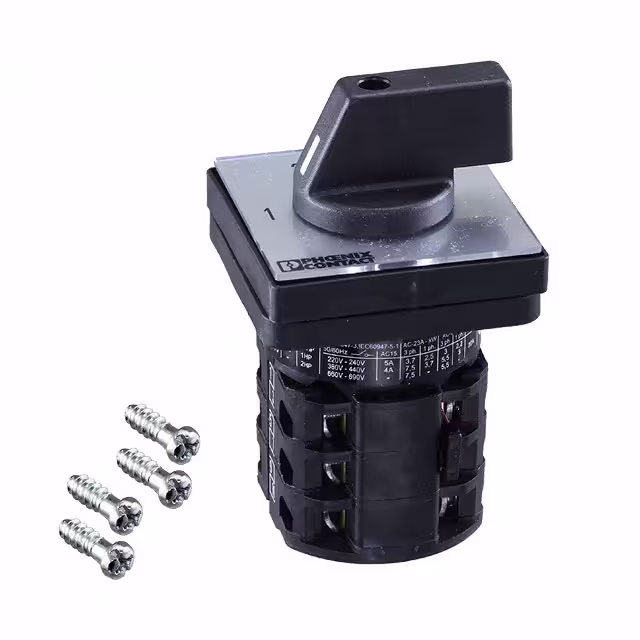

3069718SWITCH SELECT 3POS SP3T 20A 300V |
3,686 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SP3T | On-On-On | 20A (AC) | 300 V | 3 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-2-3 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
3069721SWITCH SELECT 4POS SP4T 20A 300V |
3,804 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SP4T | On-On-On-On | 20A (AC) | 300 V | 4 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-2-3-4 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
3069725SWITCH SELECT 2POS SPDT 20A 300V |
2,963 |
|
Datasheet |
- | Bulk | Obsolete | Standard | SPDT | On-On | 20A (AC) | 300 V | 2 | - | Non-Illuminated | - | - | Panel Mount | Marking: 1-2 | Screw Terminal | - | Circular - 15.00mm Dia | -35°C ~ 55°C |
|
|
A22NW-3RB-TYA-G101-YCSWITCH SELECT 3POS DPST 10A 120V |
2,402 |
|
Datasheet |
A22NW | Bulk | Obsolete | Standard | DPST-NO | Mom-Off-Mom | 10A (AC), 8A (DC) | 120 V | 3 | 24 V | Illuminated | LED, Yellow | 24 VAC/DC | Panel Mount | Bezel - Round, Yellow Knob | Screw Terminal | IP66 - Dust Tight, Water Resistant | Circular - 22.30mm Dia | -25°C ~ 55°C |
