| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L202031SS03QSWITCH SLIDE DPDT 4A 125V |
4,575 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On | Standard | 9.53mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
S202041MS08QSWITCH SLIDE DPDT 6A 125V |
4,149 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-On | Standard | 12.70mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
500SDP1S1M7REASWITCH SLIDE DPDT 0.4VA 20V |
2,021 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S3M1QEBSWITCH SLIDE DPDT 5A 120V |
4,659 |
|
Datasheet |
500 | Tray | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 9.40mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SDP1S2M1QEBSWITCH SLIDE DPDT 5A 120V |
4,230 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 7.24mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SDP1S4M1QEBSWITCH SLIDE DPDT 5A 120V |
2,177 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.56mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SDP1S4M2QEASWITCH SLIDE DPDT 5A 120V |
1,192 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.56mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

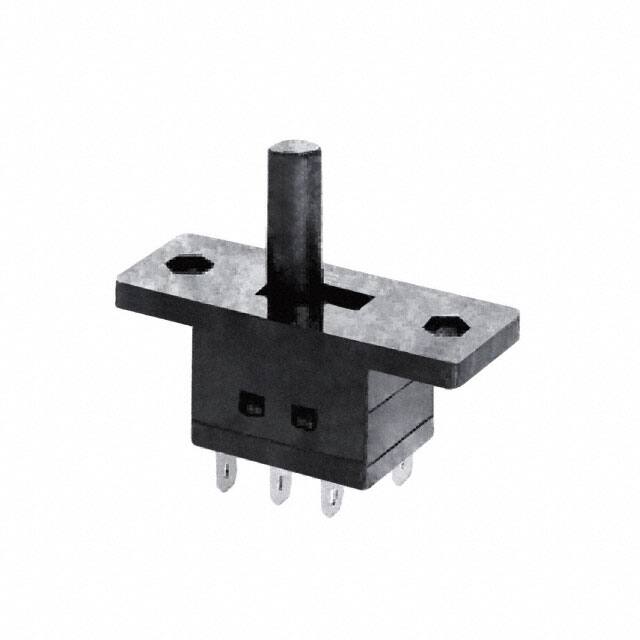

HSS208N12SWITCH SLIDE DPDT 8A 125V |
2,431 |
|
Datasheet |
HSS | Bulk | Obsolete | DPDT | Not Specified | 8A (AC) | 125 V | - | On-On | Baton | 16.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
500SSP3S3M7REASWITCH SLIDE SPDT 0.4VA 20V |
3,580 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
NK236X693SWITCH SLIDE SPDT 500MA 12V |
1,608 |
|
Datasheet |
NK | Tray | Active | SPDT | Not Specified | 500mA (DC) | - | 12 V | On-On | Flush | - | Nickel | Gold | Through Hole | PC Pin | Flame Retardant |
|
|
46313LDRXSWITCH SLIDE DP3T 3A 125V |
4,300 |
|
Datasheet |
46300R | Bulk | Active | DP3T | Non-Shorting (BBM) | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.60mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
S112032SS03QESWITCH SLIDE SPDT 6A 125V |
3,674 |
|
Datasheet |
S | Bulk | Active | SPDT | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-Mom | Standard | 8.51mm | Copper | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
1101M1S3Z3QE2SWITCH SLIDE |
4,473 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L201021MA04QSWITCH SLIDE DPST 4A 125V |
2,345 |
|
Datasheet |
L | Bulk | Active | DPST | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Off | Standard | 8.51mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
L204021MS02QSWITCH SLIDE DP4T 4A 125V |
1,305 |
|
Datasheet |
L | Bulk | Active | DP4T | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On-On-On | Standard | 8.51mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
500SDP1S1M6REASWITCH SLIDE DPDT 0.4VA 20V |
2,490 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1203A3DREBSWITCH SLIDE DPDT 0.4VA 20V |
3,534 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 9.40mm | Copper Alloy | Gold | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
|
CMS-2402CSWITCH SLIDE DP4T 0.1A 12V |
1,203 |
|
Datasheet |
CMS | Bulk | Active | DP4T | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On-On-On | Standard | 2.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
CMS-2402ASWITCH SLIDE DP4T 0.1A 12V |
2,413 |
|
Datasheet |
CMS | Bulk | Active | DP4T | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On-On-On | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount | J Lead | - |
|
|
CMS-2402BSWITCH SLIDE DP4T 0.1A 12V |
3,457 |
|
Datasheet |
CMS | Bulk | Active | DP4T | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On-On-On | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount | Gull Wing | - |
