| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4M1-SSP3-S3/1-M2QESWITCH SLIDE SPDT 5A 125V |
4,227 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 9.40mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
4M1-SSP3-S3/2-M2QESWITCH SLIDE SPDT 5A 125V |
4,000 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 9.40mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
SE2DGPCSWITCH SLIDE DPDT 0.4VA 20V |
2,322 |
|
Datasheet |
SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.50mm | Copper Alloy | Gold | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof |
|
|
GH36P000000SWITCH SEALING BOOT |
2,609 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
48ASSP1S2M3RBTSWITCH SLIDE SPDT 0.4VA 20V |
1,081 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 7.24mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
1101M1S3ZBD2SWITCH SLIDE SPDT 0.4VA 20V |
4,576 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.08mm | Copper | Gold | Panel Mount | Solder Lug | - |
|
|
4M1-SSP1-S6/2-VS3PESWITCH SLIDE SPDT 5A 125V |
2,641 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-On | Standard | 12.40mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
GH36P010000SWITCH SEALING BOOT |
2,474 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | 3A (DC) | - | 30 V | On-On | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | - |
|
|
1-1825289-0SWITCH SLIDE DP3T 300MA 125V |
3,449 |
|
Datasheet |
MHS | Bulk | Active | DP3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
4S1-FSP1-M2QESWITCH SLIDE SPDT 3A 125V |
4,824 |
|
Datasheet |
4S | Bulk | Active | SPDT | Not Specified | 3A (AC/DC) | 125 V | 28 V | On-On | Standard | 3.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
4S1-FSP1-M6GET/RSWITCH SLIDE SPDT 3A 125V |
4,771 |
|
Datasheet |
4S | Bulk | Active | SPDT | Not Specified | 3A (AC/DC) | 125 V | 28 V | On-On | Standard | 3.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
1825274-1SWITCH SLIDE 6P3T 300MA 125V |
4,386 |
|
Datasheet |
MSS | Bulk | Obsolete | 6P3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 12.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
.jpg)
|
GS02MSV1KE(T&R)SWITCH SLIDE SPST 0.4VA 20V |
2,617 |
|
Datasheet |
GS | Tape & Reel (TR) | Obsolete | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 1.27mm | Beryllium Copper | Gold | Surface Mount | Gull Wing | Epoxy Sealed Terminals |
|

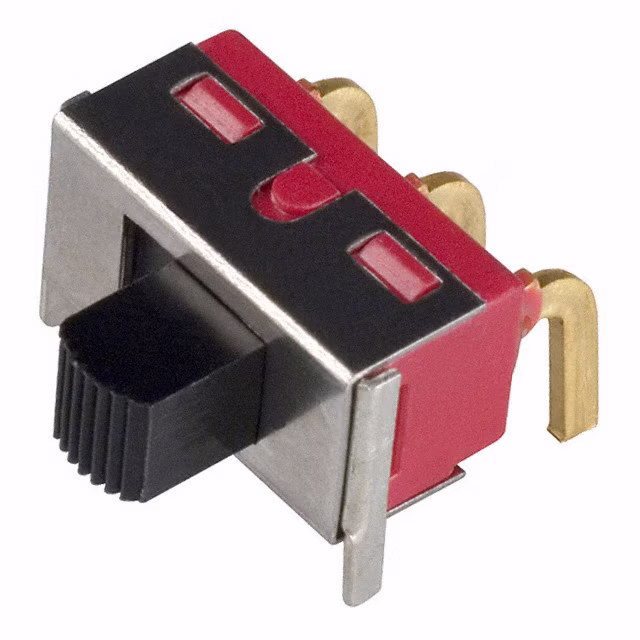

4M1-SSP1-S1/2-M6RESWITCH SLIDE SPDT 0.4VA 20V |
2,927 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.10mm | Gold (Au) | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
4M1-SSP1-S1/1-M6RESWITCH SLIDE SPDT 0.4VA 20V |
1,783 |
|
Datasheet |
4M | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.10mm | Copper Alloy | Gold over Nickel | Through Hole, Right Angle | PC Pin | - |
|
S202131MS08QSWITCH SLIDE DPDT 6A 125V |
3,134 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole, Right Angle | PC Pin | No Marking |
|
MS12AFG01SWITCH SLIDE SPDT 0.4VA 28V |
1,323 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
25536NLD6X693SWITCH SLIDE SPDT 100MA 30V |
4,214 |
|
Datasheet |
25000N | Tray | Active | SPDT | Not Specified | 100mA (DC) | - | 30 V | On-On | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Flame Retardant |
|
|
25536NLD6SLIDE SWITCH 25000N PCB MOUNT |
4,100 |
|
Datasheet |
25000N | Bulk | Active | SPDT | Not Specified | 4A (AC), 100mA (DC) | 125 V | 30 V | On-On | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
25436NLDH6SLIDE SWITCH 25000N PCB MOUNT |
2,858 |
|
Datasheet |
25000N | Bulk | Active | SPDT | Not Specified | 4A (AC), 100mA (DC) | 125 V | 30 V | On-On | Flush | Flush | Brass | Gold | Through Hole | PC Pin | - |
