Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825199-2SWITCH SLIDE DP3T 0.4VA 20V |
1,082 |
|
Datasheet |
MSSA | Tray | Active | DP3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 8.89mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825202-1SWITCH SLIDE 3P3T 300MA 125V |
2,099 |
|
Datasheet |
MSSA | Tray | Active | 3P3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 10.39mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825204-1SWITCH SLIDE 3P4T 300MA 125V |
2,251 |
|
Datasheet |
MSSA | Bulk | Active | 3P4T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On-On | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

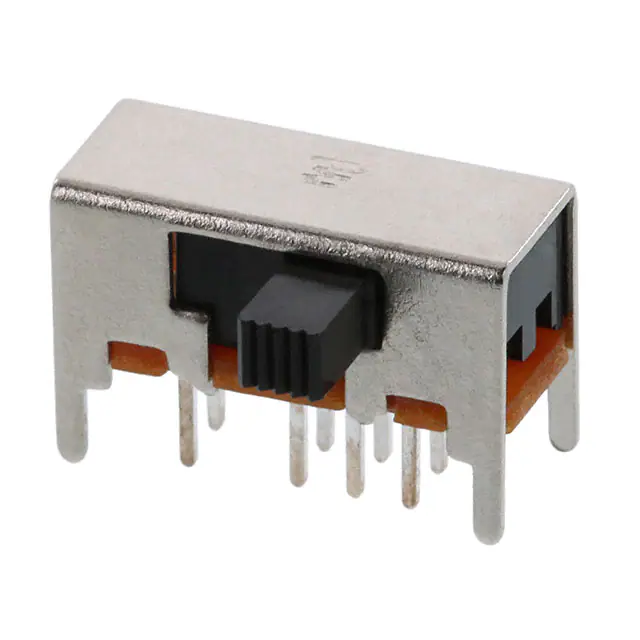

1825290-5SWITCH SLIDE DPDT 0.4VA 20V |
3,960 |
|
Datasheet |
MHS | Bulk | Active | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 4.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
M13ARSWITCH SLIDE SP3T 300MA 125V |
4,044 |
|
Datasheet |
M | Tray | Obsolete | SP3T | Not Specified | 300mA (AC/DC) | 125 V | 30 V | On-On-On | Standard | 8.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
M43GSWITCH SLIDE 4P3T 0.4VA 20V |
3,341 |
|
Datasheet |
M | Tray | Obsolete | 4P3T | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 9.00mm | - | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
M62ASWITCH SLIDE 6PDT 300MA 125V |
3,575 |
|
Datasheet |
M | Tray | Obsolete | 6PDT | Not Specified | 300mA (AC/DC) | 125 V | 30 V | On-On | Standard | 12.00mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MHS123K15DSWITCH SLIDE SPDT 300MA 30V |
2,854 |
|
Datasheet |
MHS | Tray | Obsolete | SPDT | Not Specified | 300mA (DC) | - | 30 V | On-Off-On | Baton | 10.00mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHS223SWITCH SLIDE DPDT 300MA 30V |
2,543 |
|
Datasheet |
MHS | Tray | Obsolete | DPDT | Not Specified | 300mA (DC) | - | 30 V | On-Off-On | Standard | 4.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS23RSWITCH SLIDE DP3T 300MA 6V |
3,156 |
|
Datasheet |
MS | Tray | Active | DP3T | Not Specified | 300mA (DC) | - | 6 V | On-On-On | Standard | 2.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
48ASDP1S1M1QBTSWITCH SLIDE DPDT 5A 125V |
3,151 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-On | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
48ASDP1S2M1RATSWITCH SLIDE DPDT 0.4VA 20V |
1,289 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 7.24mm | Copper Alloy | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
48ASDP1S4V2QBTSWITCH SLIDE DPDT 5A 125V |
3,990 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-On | Standard | 3.56mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP1S6M6QBTSWITCH SLIDE DPDT 5A 125V |
3,085 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-On | Standard | 12.32mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP3S5V2QBTSWITCH SLIDE DPDT 5A 125V |
2,454 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 1.02mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP3T1V2RBTSWITCH SLIDE DPDT 0.4VA 20V |
2,018 |
|
Datasheet |
48A | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 5.08mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
48ASSP1S1M7RATSWITCH SLIDE SPDT 0.4VA 20V |
1,726 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.08mm | Copper Alloy | Gold | Panel Mount, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
48ASSP1S3M2RBTSWITCH SLIDE SPDT 0.4VA 20V |
1,576 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 9.40mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
48ASSP3S1M1QBTSWITCH SLIDE SPDT 5A 125V |
1,702 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
48ASSP3S4M6QBTSWITCH SLIDE SPDT 5A 125V |
2,785 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard | 3.56mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
