Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1D-5M-10-ZSWITCH SLIDE SPDT 50MA 48V |
1,690 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 48 V | 48 V | On-On | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|

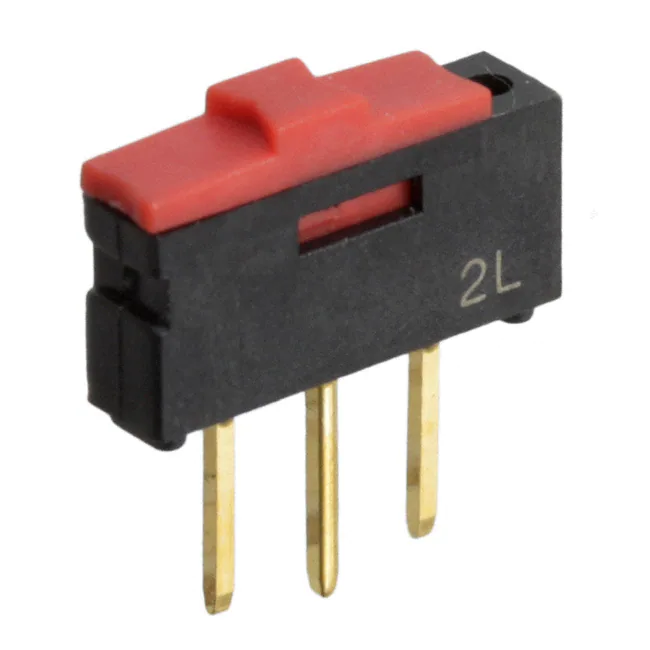

CL-SA-12C-22SWITCH SLIDE SPDT 500MA 12V |
1,355 |
|
Datasheet |
CL-SA | Bulk | Active | SPDT | Non-Shorting (BBM) | 500mA (DC) | - | 12 V | On-On | Standard | 1.40mm | Gold (Au) | - | Through Hole | PC Pin | - |
|
L201011MS02QSWITCH SLIDE DPST 4A 125V |
2,196 |
|
Datasheet |
L | Bulk | Active | DPST | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Off | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

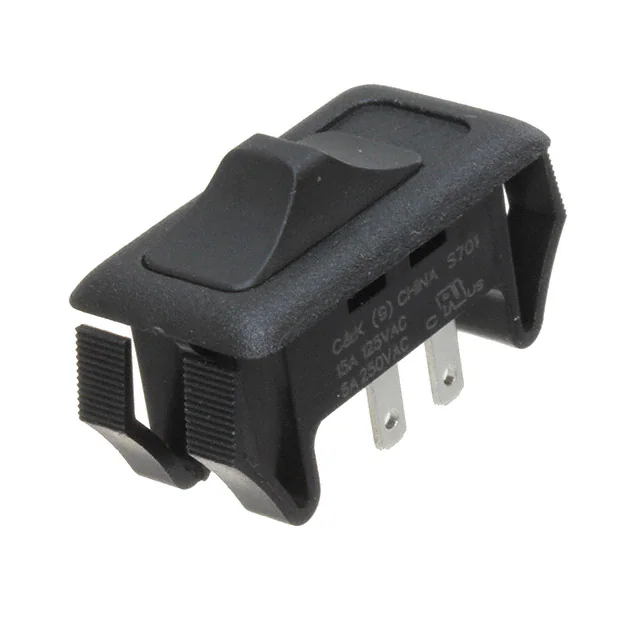

S701C21S207QSWITCH SLIDE SPST 15A 125V |
1,441 |
|
Datasheet |
S | Bulk | Active | SPST | Not Specified | 15A (AC) | 125 V | - | On-Off | Snap on Cap | 5.08mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Black Actuator |
|

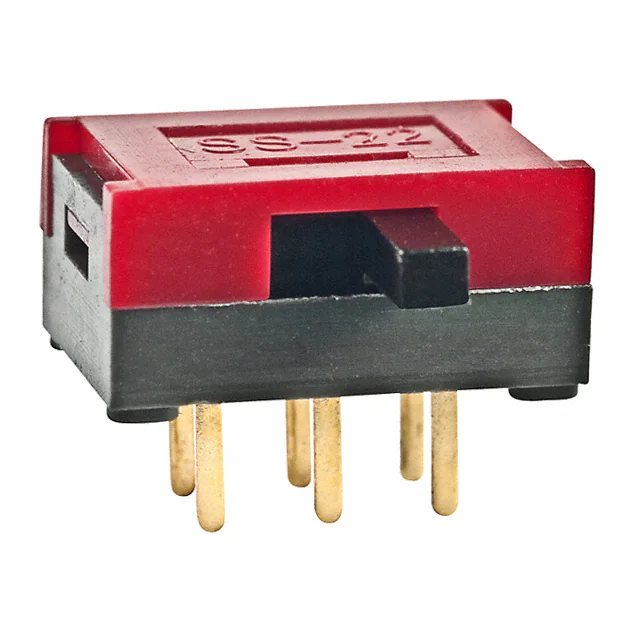

SS22SDH4SWITCH SLIDE DPDT 0.4VA 28V |
3,514 |
|
Datasheet |
SS | Tray | Active | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|

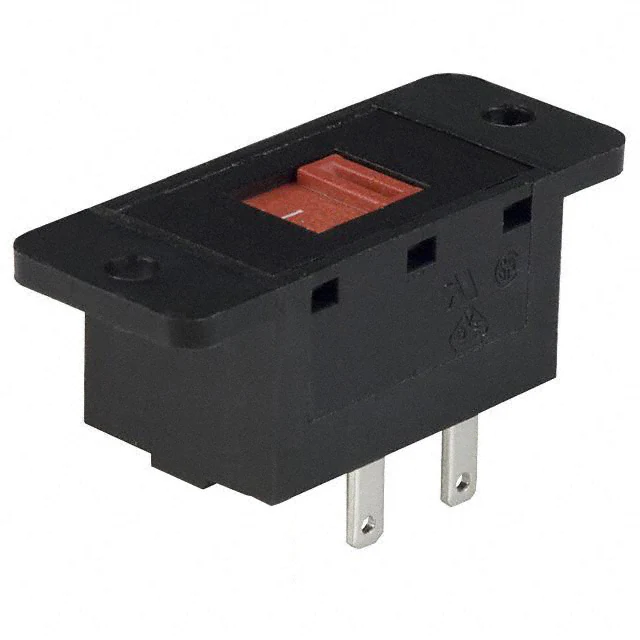

V70114SS05QSWITCH SLIDE SPST 10A 125V |
2,943 |
|
Datasheet |
V | Bulk | Active | SPST | Not Specified | 10A (AC), 4A (DC) | 125 V | 30 V | On-Off | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | O - Marking |
|

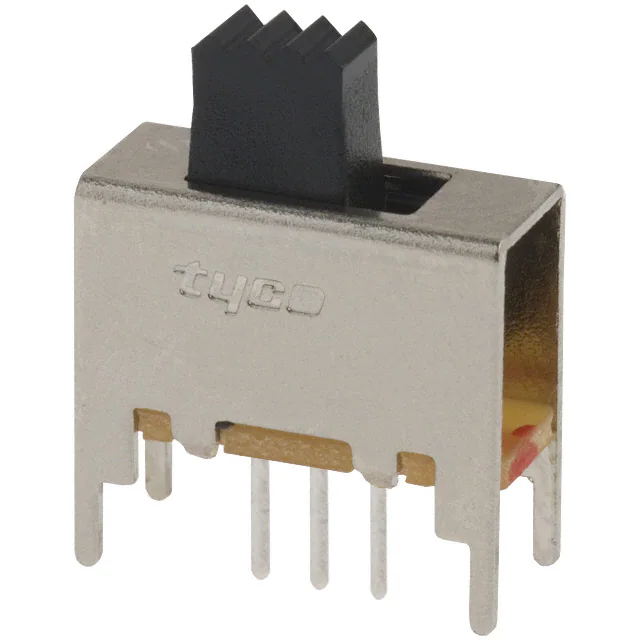

1825257-1SWITCH SLIDE SPDT 300MA 125V |
2,216 |
|
Datasheet |
MSS | Bulk | Active | SPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS2D-2M-10-ZSWITCH SLIDE DPDT 50MA 48V |
778 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 48 V | 48 V | On-On | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
|
500ASSP1M2RESWITCH SLIDE SPDT 0.4VA 20V |
3,290 |
|
Datasheet |
500A | Tray | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

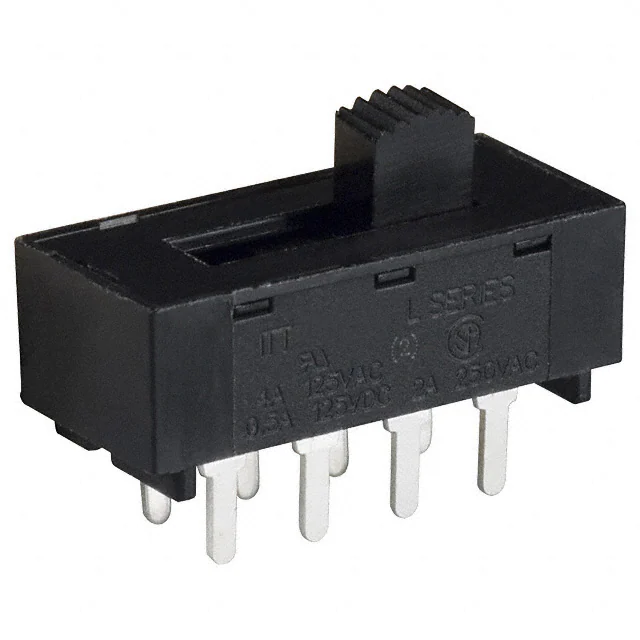

L203011MS02QSWITCH SLIDE DP3T 4A 125V |
6,250 |
|
Datasheet |
L | Bulk | Active | DP3T | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On-On | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
T22208EAAGSWITCH SLIDE |
337 |
|
Datasheet |
2000 | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

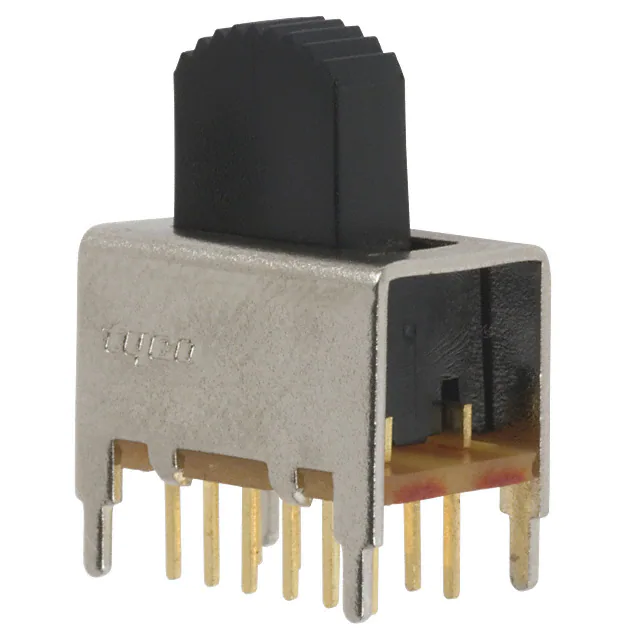

1825264-2SWITCH SLIDE 4PDT 0.4VA 20V |
1,159 |
|
Datasheet |
MSS | Bulk | Active | 4PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 8.00mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

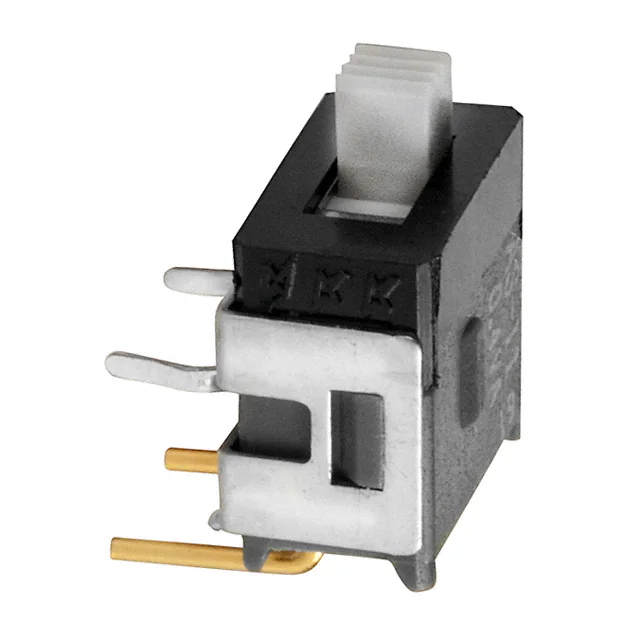

AS11AHSWITCH SLIDE SPST 0.4VA 28V |
1,442 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

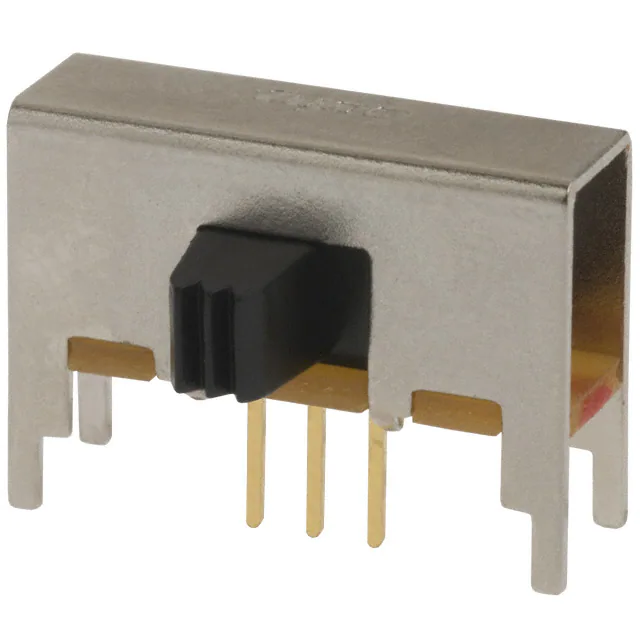

1825258-2SWITCH SLIDE SPDT 0.4VA 20V |
1,883 |
|
Datasheet |
MSS | Bulk | Active | SPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

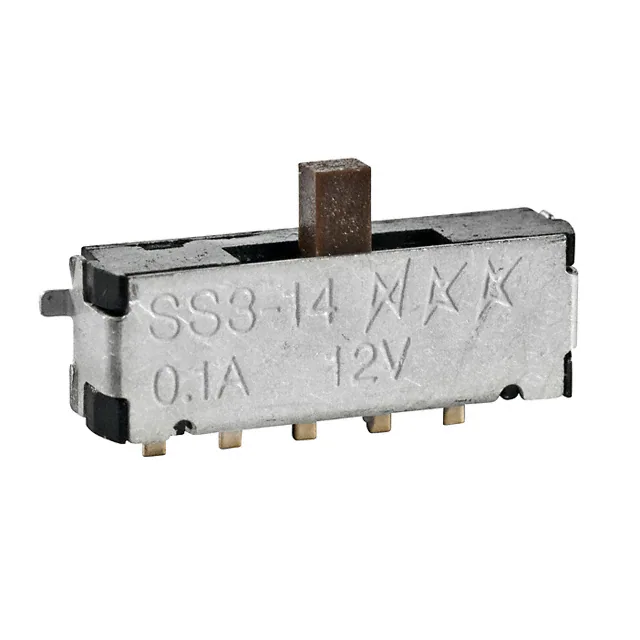

SS314MAH4SWITCH SLIDE SPDT 0.4VA 28V |
163 |
|
Datasheet |
SS3 | Tray | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On/On-On-On | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - |
|

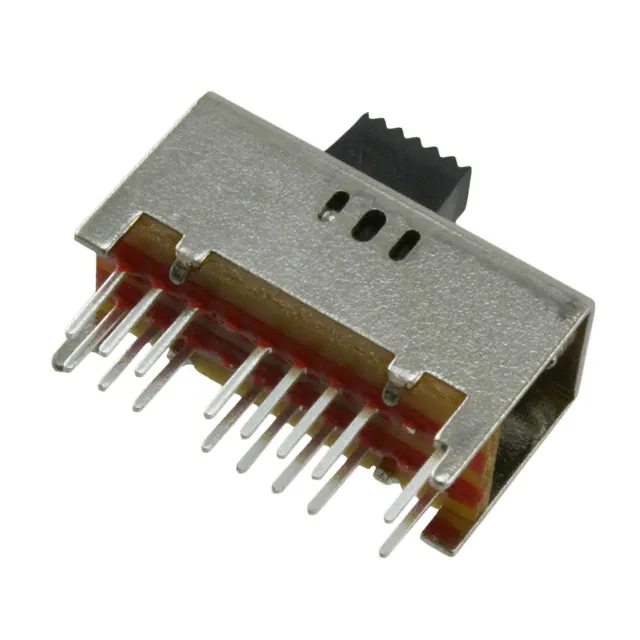

1825267-1SWITCH SLIDE 4P3T 300MA 125V |
848 |
|
Datasheet |
MSS | Bulk | Active | 4P3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 5.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS12AHSWITCH SLIDE SPDT 0.4VA 28V |
4,127 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

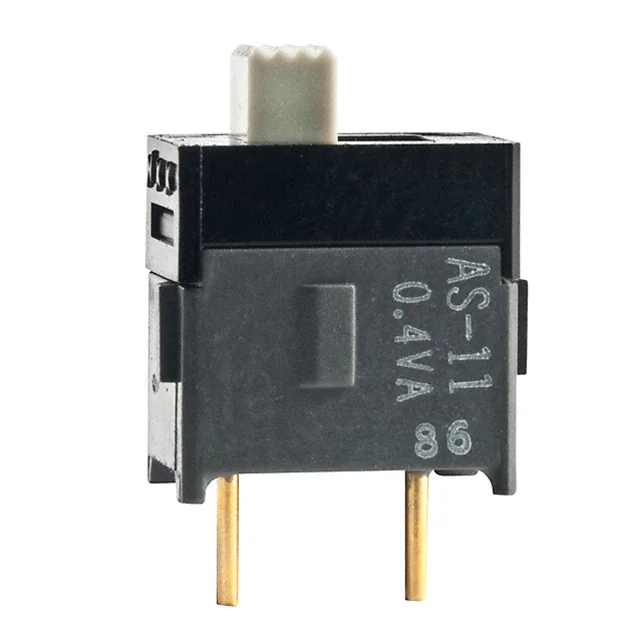

AS11APSWITCH SLIDE SPST 0.4VA 28V |
2,440 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

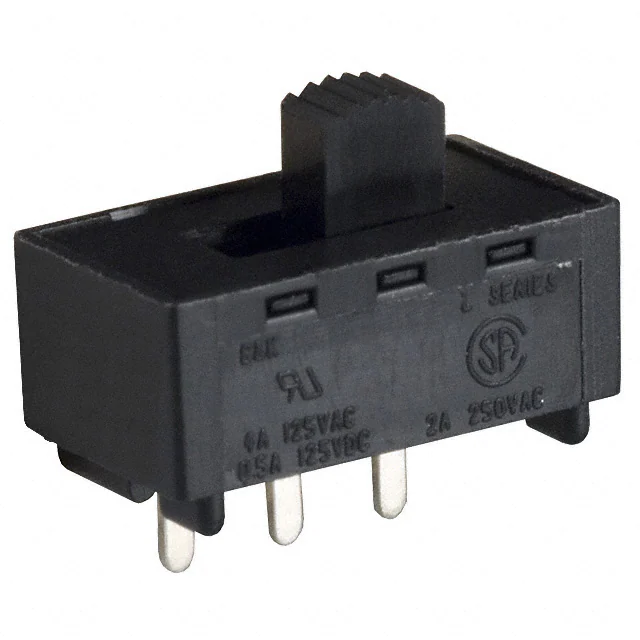

L202011MS02QESWITCH SLIDE DPDT 4A 125V |
7,313 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25139NLDHSWITCH SLIDE SPDT 100MA 30V |
435 |
|
Datasheet |
25000N | Bulk | Active | SPDT | Not Specified | 100mA (DC) | - | 30 V | On-Off-On | Standard | 2.80mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
