Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES115D-ZSWITCH SLIDE SPDT 15A 125V |
3,234 |
|
Datasheet |
ES | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 15A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|

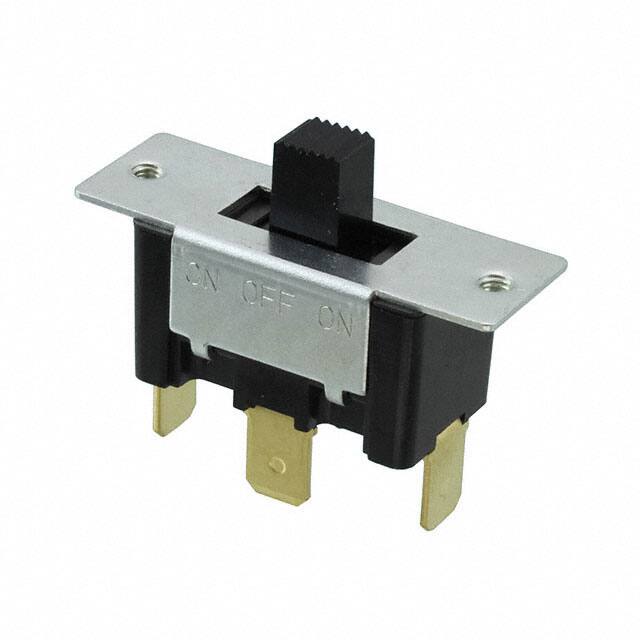

ES115E-ZSWITCH SLIDE SPDT 15A 125V |
2,926 |
|
Datasheet |
ES | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 15A (AC) | 125 V | - | On-Off-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
ES125A10-ZSWITCH SLIDE SPST 25A 125V |
3,927 |
|
Datasheet |
ES | Bulk | Obsolete | SPST | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-Off | Standard | 9.00mm | - | - | Panel Mount | Screw Terminal | - |
|
ES125A12-ZSWITCH SLIDE SPST 25A 125V |
1,857 |
|
Datasheet |
ES | Bulk | Obsolete | SPST | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-Off | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
ES125D12-ZSWITCH SLIDE SPDT 25A 125V |
4,506 |
|
Datasheet |
ES | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
ES125E-ZSWITCH SLIDE SPDT 25A 125V |
3,961 |
|
Datasheet |
ES | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-Off-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
ES215K-ZSWITCH SLIDE DPST 15A 125V |
1,287 |
|
Datasheet |
ES | Bulk | Obsolete | DPST | Non-Shorting (BBM) | 15A (AC) | 125 V | - | On-Off | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES215N-ZSWITCH SLIDE DPDT 15A 125V |
1,552 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 15A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES215P-ZSWITCH SLIDE DPDT 15A 125V |
2,898 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 15A (AC) | 125 V | - | On-Off-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
ES225K12-ZSWITCH SLIDE DPST 25A 125V |
4,835 |
|
Datasheet |
ES | Bulk | Obsolete | DPST | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-Off | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
ES225N12-ZSWITCH SLIDE DPDT 25A 125V |
2,483 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
ES225N-ZSWITCH SLIDE DPDT 25A 125V |
4,911 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
ES225P-ZSWITCH SLIDE DPDT 25A 125V |
4,106 |
|
Datasheet |
ES | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 25A (AC) | 125 V | - | On-Off-On | Standard | 9.00mm | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
SS220K-23-ZSWITCH SLIDE DPST 20A 250V |
4,796 |
|
Datasheet |
SS220K-23 | Bulk | Obsolete | DPST | Non-Shorting (BBM) | 20A (AC) | 250 V | - | On-Off | Standard | 8.00mm | - | - | - | Quick Connect - 0.250" (6.3mm) | - |
|
AS2E-5M-10-ZSWITCH SLIDE DPDT 50MA 48V |
2,662 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|
AS2E-6M-10-ZSWITCH SLIDE DPDT 50MA 48V |
1,923 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard | 4.30mm | - | Gold | Through Hole, Right Angle | PC Pin | - |
|

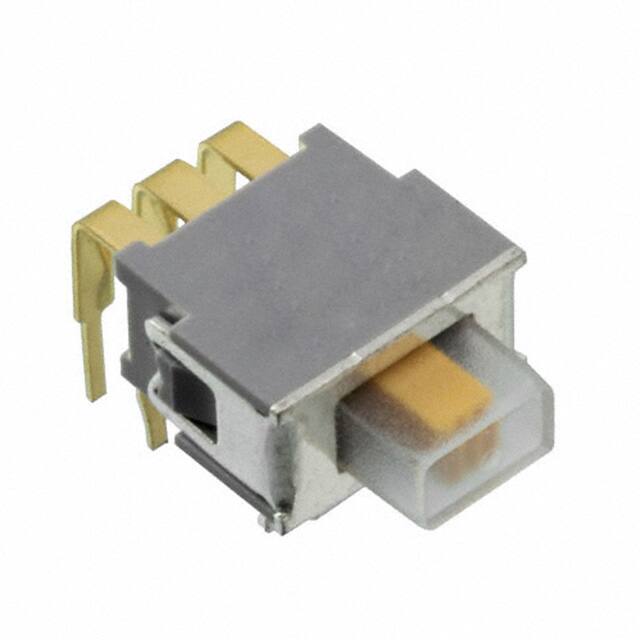

ASE2E-5M-10-ZSWITCH SLIDE DPDT 50MA 60V |
4,628 |
|
Datasheet |
ASE | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 60 V | 60 V | On-Off-On | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
|
1571734-1SWITCH SLIDE SPDT 0.4VA 20V |
4,373 |
|
Datasheet |
- | Bulk | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 5.08mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
1571981-1SWITCH SLIDE SPDT 0.1A 30V |
2,982 |
|
Datasheet |
SSA | Bulk | Active | SPDT | Non-Shorting (BBM) | 100mA (DC) | - | 30 V | On-On | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
1571671-1SWITCH SLIDE SPDT 0.5A 50V |
4,789 |
|
Datasheet |
- | Bulk | Active | SPDT | Non-Shorting (BBM) | 500mA (DC) | - | 50 V | On-On | Standard | 9.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
