Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

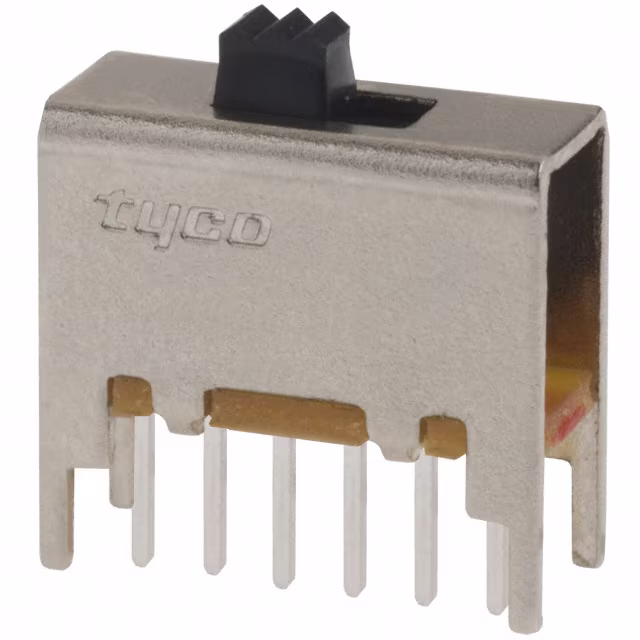

1825261-1SWITCH SLIDE DPDT 300MA 125V |
385 |
|
Datasheet |
MSS | Bulk | Active | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 2.30mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

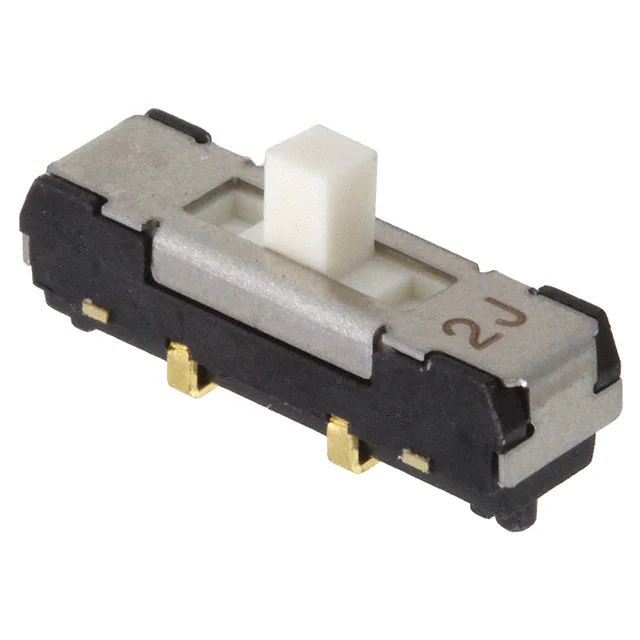

CL-SB-13A-02TSWITCH SLIDE SP3T 200MA 12V |
1,334 |
|
Datasheet |
CL-SB | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | 200mA (DC) | - | 12 V | On-On-On | Standard | 2.00mm | Copper | Gold | Surface Mount | J Lead | - |
|
MSS-102545-14A-V-SMTSWITCH SLIDE SPDT 0.3A 24V |
171 |
|
Datasheet |
- | Bag | Active | SPDT | Not Specified | 300mA (DC) | - | 24 V | On-On | Standard | - | Nickel | Gold | Through Hole | PC Pin | - |
|
GF-326-0010SWITCH SLIDE DPDT 3A 125V |
2,120 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

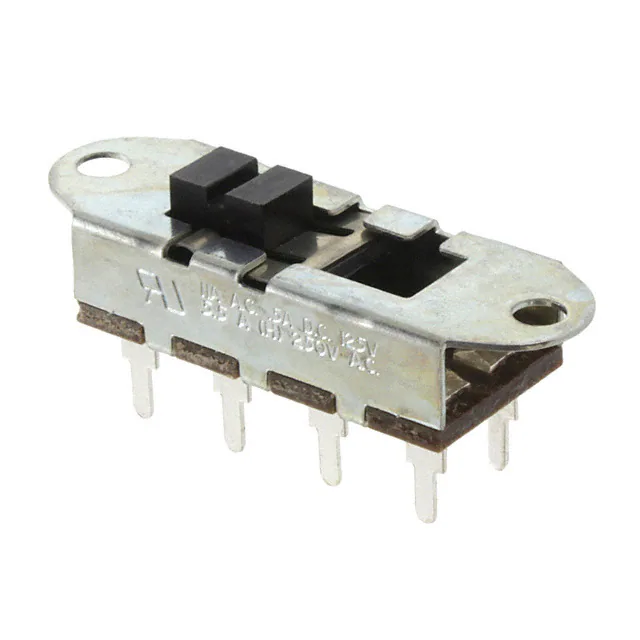

G-1128S-0060SWITCH SLIDE DP3T 11A 125V |
11,846 |
|
Datasheet |
G | Bulk | Active | DP3T | Not Specified | 11A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Screwdriver Slot | 3.18mm | Copper | Silver | Panel Mount | PC Pin | - |
|
CL-SB-22A-12TSWITCH SLIDE DPDT 200MA 12V |
4,105 |
|
Datasheet |
CL-SB | Tape & Reel (TR) | Active | DPDT | Non-Shorting (BBM) | 200mA (DC) | - | 12 V | On-On | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | J Lead | - |
|

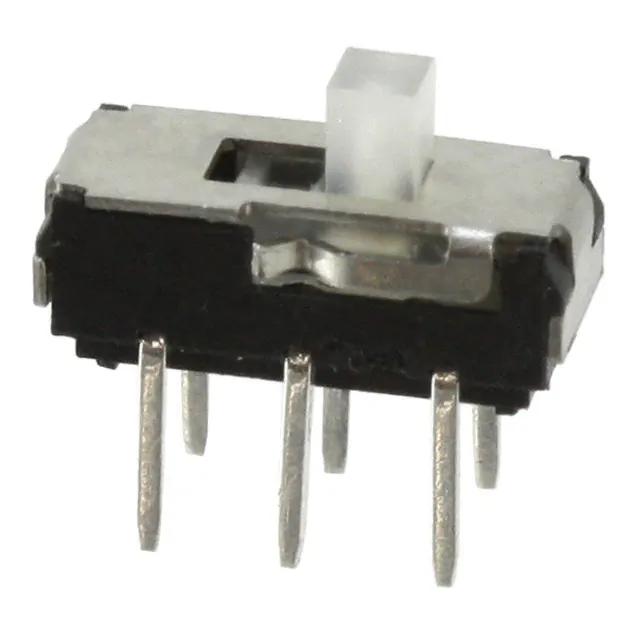

SS-22D0205-G 2SWITCH SLIDE DPDT 300MA 6V |
500 |
|
Datasheet |
SS, COMAX | Bulk | Active | DPDT | Non-Shorting (BBM) | 300mA (DC) | - | 6 V | On-On | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

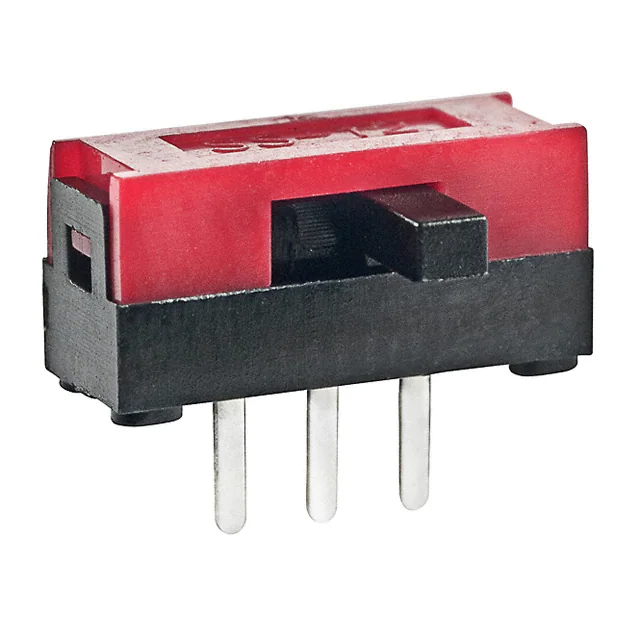

SS12SBH2SWITCH SLIDE SPDT 100MA 30V |
184 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | 100mA (DC) | - | 30 V | On-On | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
G-1128L-0005SWITCH SLIDE DP3T 11A 125V |
3,095 |
|
Datasheet |
G | Bulk | Active | DP3T | Not Specified | 11A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
CL-SB-23C-02SWITCH SLIDE DP3T 200MA 12V |
141 |
|
Datasheet |
CL-SB | Bulk | Active | DP3T | Non-Shorting (BBM) | 200mA (DC) | - | 12 V | On-On-On | Standard | 2.00mm | Copper | Gold | Through Hole | PC Pin | - |
|
GF-626-0061SWITCH SLIDE DPDT 6A 125V |
571 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 6A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 19.05mm | Copper | Silver | Through Hole | PC Pin | - |
|

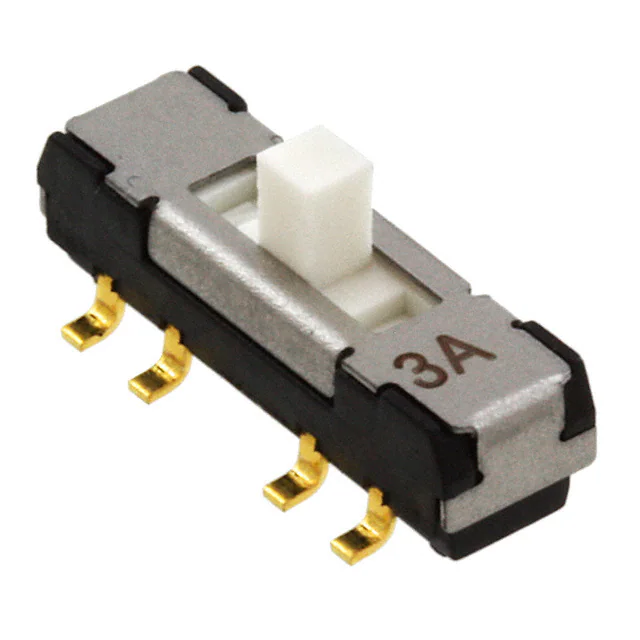

CL-SB-23B-02TSWITCH SLIDE DP3T 200MA 12V |
6,045 |
|
Datasheet |
CL-SB | Tape & Reel (TR) | Active | DP3T | Non-Shorting (BBM) | 200mA (DC) | - | 12 V | On-On-On | Standard | 2.00mm | Copper | Gold | Surface Mount | Gull Wing | - |
|

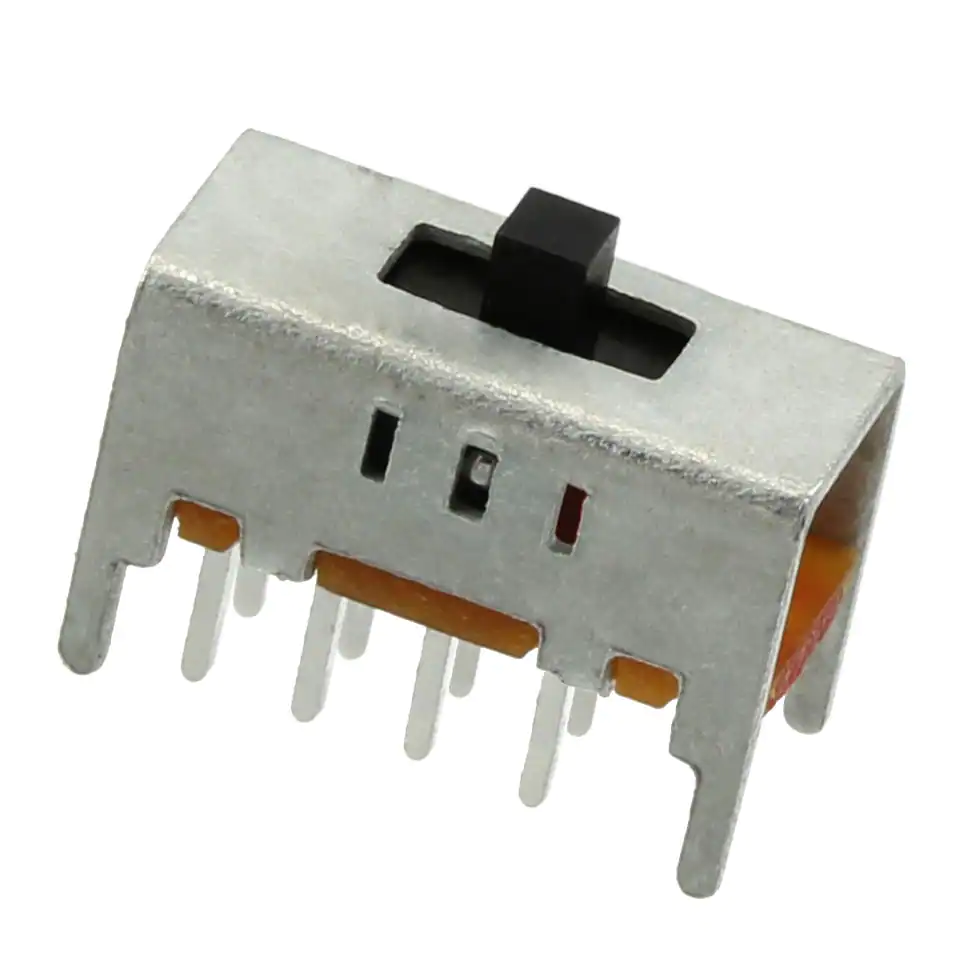

MFS201PA-5-ZSWITCH SLIDE DP3T 300MA 30V |
124 |
|
Datasheet |
MFS | Bulk | Active | DP3T | Not Specified | 300mA (DC) | - | 30 V | On-On-On | Standard | 2.50mm | - | - | Through Hole | PC Pin | - |
|

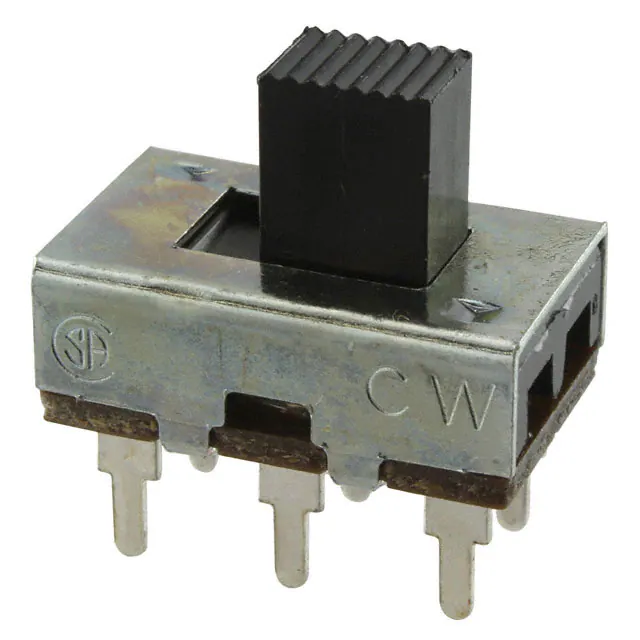

GF-426-0020SWITCH SLIDE DPDT 4A 125V |
2,732 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 4A (AC) | 125 V | - | On-On | Standard | 8.74mm | Copper | Silver | Through Hole | PC Pin | - |
|

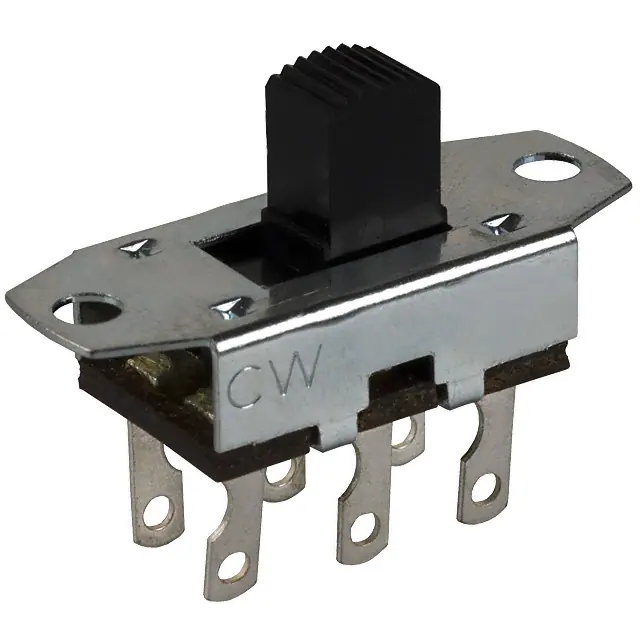

GF-1126-0033SWITCH SLIDE DPDT 11A 125V |
2,017 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 11A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GF-1326-0009SWITCH SLIDE DPDT 13A 125V |
370 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 13A (AC), 500mA (DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 3.18mm | Copper | Silver | Panel Mount | Solder Lug | No Marking |
|
SS12SBP4SWITCH SLIDE SPDT 0.4VA 28V |
4,445 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
|
GF-326-0280SWITCH SLIDE DPDT 3A 125V |
616 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 4.78mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
G-328S-0044SWITCH SLIDE DP3T 3A 125V |
345 |
|
Datasheet |
G | Bulk | Active | DP3T | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | Wire Wrap | - |
|
GR5-326-0892SWITCH SLIDE DPDT 3A 125V |
1,055 |
|
Datasheet |
GR5 | Bulk | Active | DPDT | Not Specified | 3A (AC) | 125 V | - | On-On | Rocker Knob | 18.59mm | - | - | Panel Mount | PC Pin | - |
