Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

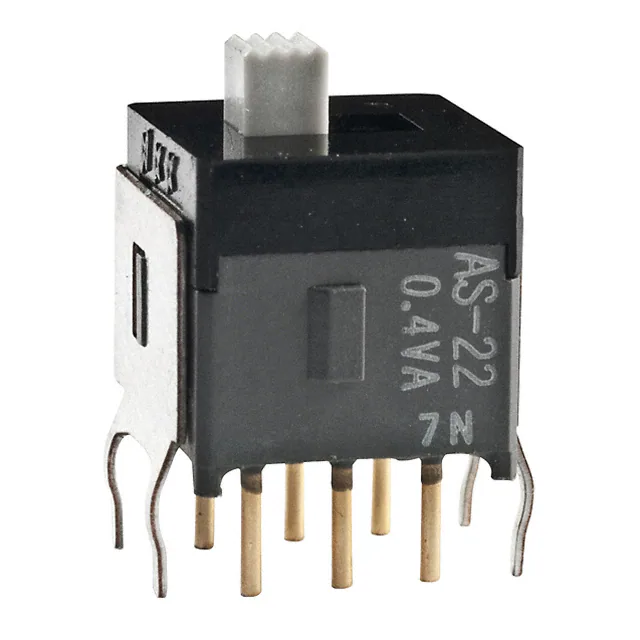

AS22ABSWITCH SLIDE DPDT 0.4VA 28V |
162 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
TS03CBESWITCH SLIDE SPDT 0.4VA 20V |
1,076 |
|
Datasheet |
TS | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
L202021MA04QESWITCH SLIDE DPDT 4A 125V |
551 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On | Standard | 8.51mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1101M2S4AV2BE2SWITCH SLIDE SPDT 0.4VA 20V |
105 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 6.88mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

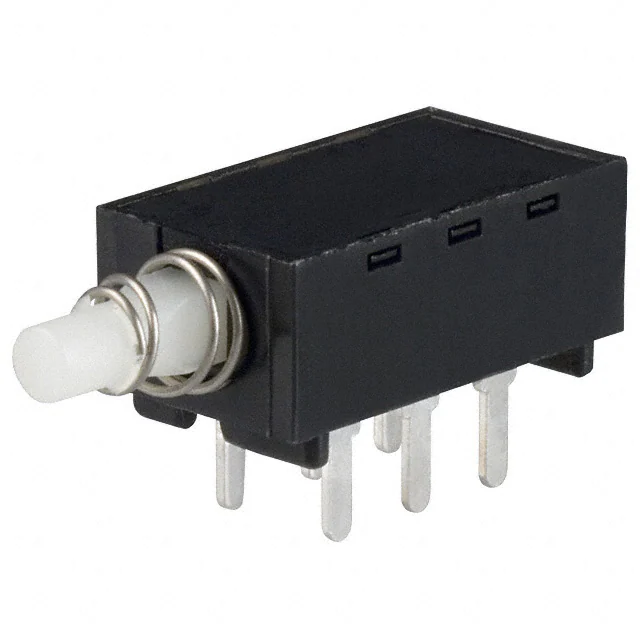

L212132MV02QSWITCH SLIDE DPDT 4A 125V |
104 |
|
Datasheet |
L | Bulk | Active | DPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Mom | Plunger for Cap | 8.38mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

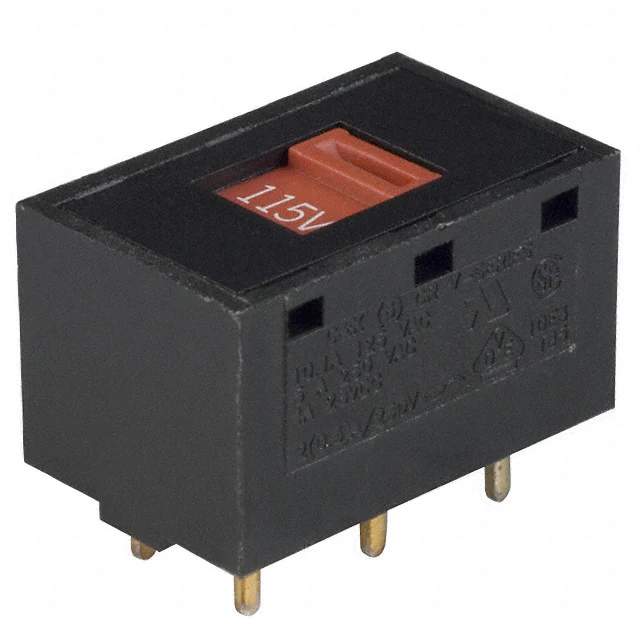

V80212MS02QESWITCH SLIDE DPDT 10A 125V |
1,955 |
|
Datasheet |
V | Bulk | Active | DPDT | Not Specified | 10A (AC), 4A (DC) | 125 V | 30 V | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper | Silver | Through Hole | PC Pin | 115V-230V Marking, Epoxy Sealed Terminals |
|
ES03MAVBESWITCH SLIDE SPDT 0.4VA 20V |
6,591 |
|
Datasheet |
ES | Tray | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals, IP57 |
|
AS23AHSWITCH SLIDE DPDT 0.4VA 28V |
4,162 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

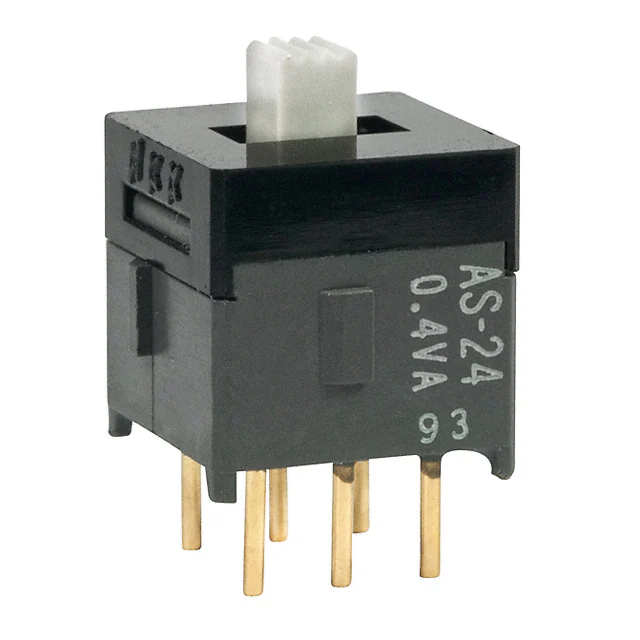

AS24APSWITCH SLIDE SP3T 0.4VA 28V |
244 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
1-1825010-0SWITCH SLIDE DPDT 300MA 115V |
239 |
|
Datasheet |
ASE | Tube | Active | DPDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Standard | 2.67mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|

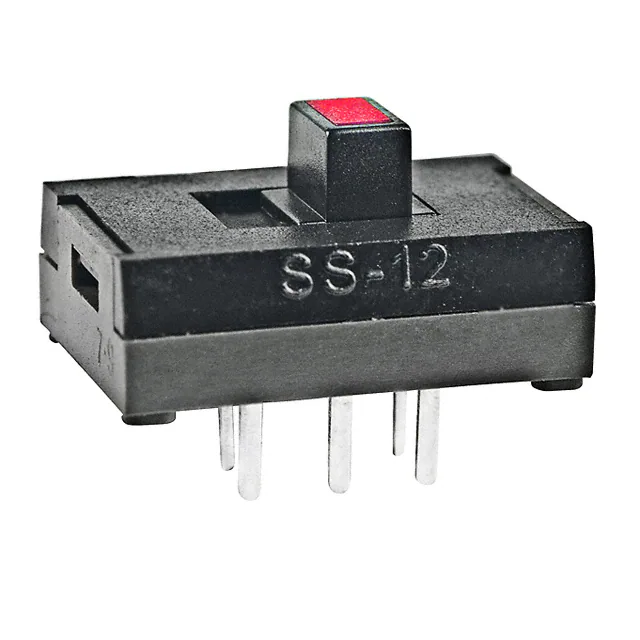

SS12SDP2LCSWITCH SLIDE SPDT 100MA 30V |
188 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | 100mA (DC) | - | 30 V | On-On | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

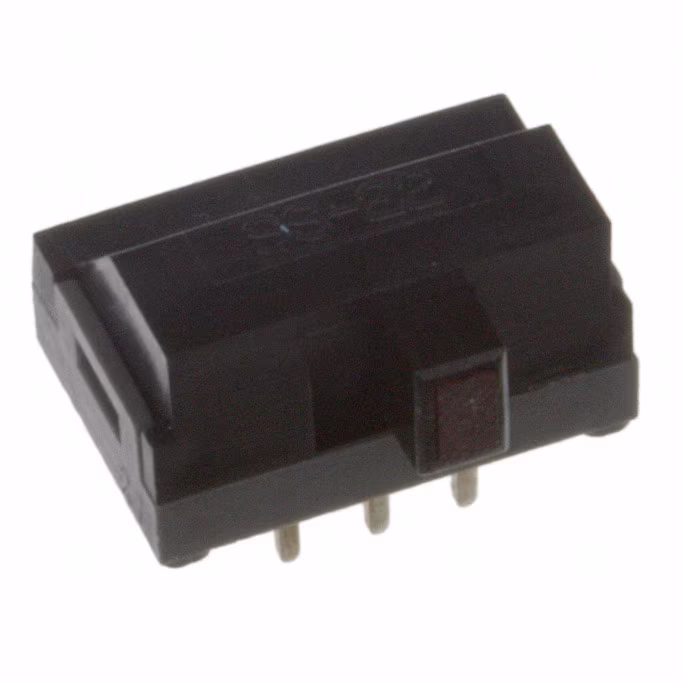

SS22SDH2LCSWITCH SLIDE DPDT 100MA 30V |
420 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | 100mA (DC) | - | 30 V | On-On | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
SS22SDH2LFSWITCH SLIDE DPDT 100MA 30V |
180 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | 100mA (DC) | - | 30 V | On-On | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
1825011-1SWITCH SLIDE DPDT 300MA 115V |
3,429 |
|
Datasheet |
ASF | Tube | Active | DPDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Screwdriver Slot | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Tape Seal |
|
1201M2S3V3BE2SWITCH SLIDE DPDT 0.4VA 20V |
2,066 |
|
Datasheet |
1000 | Tray | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

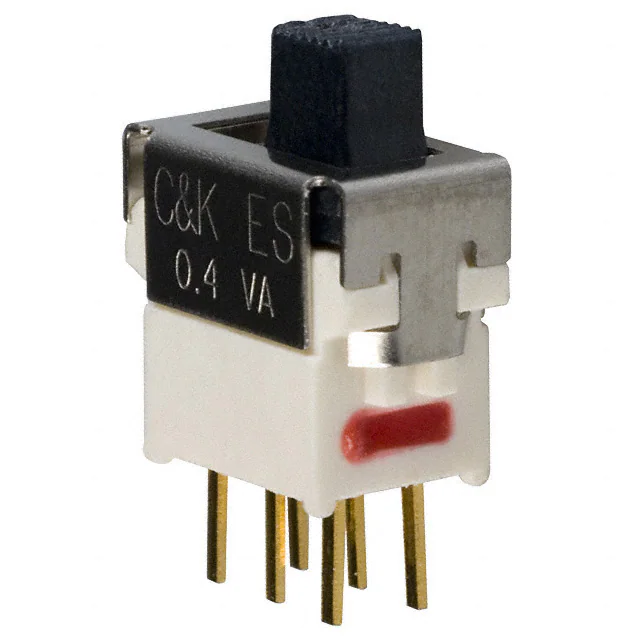

ES21MCBESWITCH SLIDE DPDT 0.4VA 20V |
158 |
|
Datasheet |
ES | Tray | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.07mm | Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
GS04MCBESWITCH SLIDE SPST 0.4VA 20V |
105 |
|
Datasheet |
GS | Tray | Active | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 1.27mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
.jpg)
|

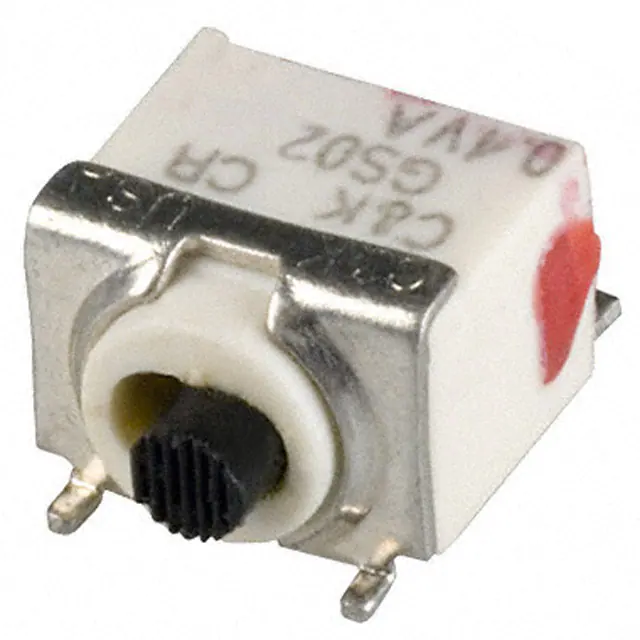

GS02MSABESWITCH SLIDE SPST 0.4VA 20V |
3,744 |
|
Datasheet |
GS | Tape & Reel (TR) | Active | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 1.27mm | Copper | Gold | Surface Mount, Right Angle | Gull Wing | Epoxy Sealed Terminals |
|

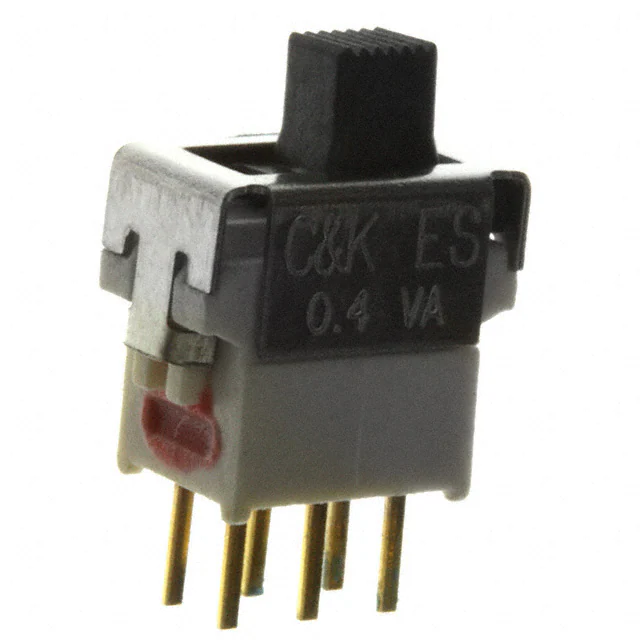

ES23MCBESWITCH SLIDE DPDT 0.4VA 20V |
404 |
|
Datasheet |
ES | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
ES23MABESWITCH SLIDE DPDT 0.4VA 20V |
108 |
|
Datasheet |
ES | Tray | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
