Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

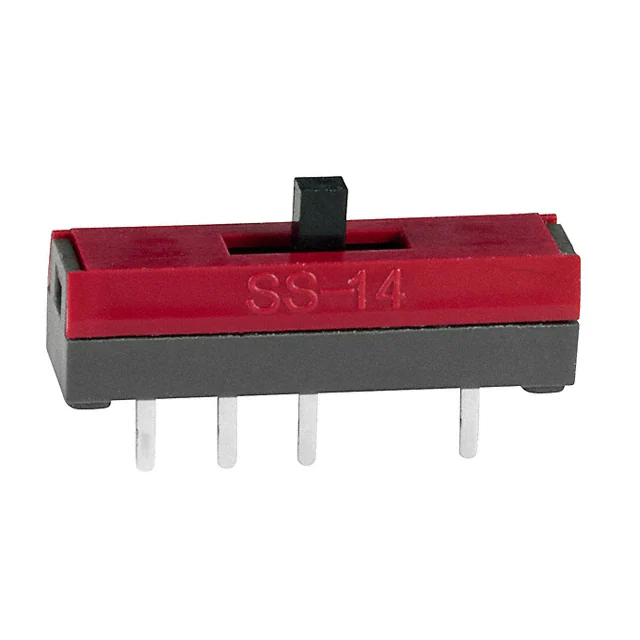

SS14MDP2SWITCH SLIDE SP3T 100MA 30V |
5,667 |
|
Datasheet |
SS | Tray | Active | SP3T | Non-Shorting (BBM) | 100mA (DC) | - | 30 V | On-On-On | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
NK236HSWITCH SLIDE SPDT 500MA 12V |
21,623 |
|
Datasheet |
NK | Bulk | Active | SPDT | Not Specified | 500mA (DC) | - | 12 V | On-On | Standard | 1.40mm | Nickel | Gold | Through Hole | PC Pin | Sealed - Flux Protection |
|
GF-661-0010SWITCH SLIDE 3PDT 6A 125V |
3,981 |
|
Datasheet |
GF | Bulk | Active | 3PDT | Not Specified | 6A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 8.74mm | Copper | Silver | Through Hole | PC Pin | - |
|
500SSP1S1M2QEASWITCH SLIDE SPDT 5A 120V |
606 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
500ASSP1SM6QESWITCH SLIDE SPDT 3A 120V |
5,569 |
|
Datasheet |
500A | Tape & Reel (TR) | Active | SPDT | Not Specified | 3A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.10mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | Epoxy Sealed Terminals |
|
500SSP1S2M2QEASWITCH SLIDE SPDT 5A 120V |
11,431 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS12APSWITCH SLIDE SPDT 0.4VA 28V |
5,847 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

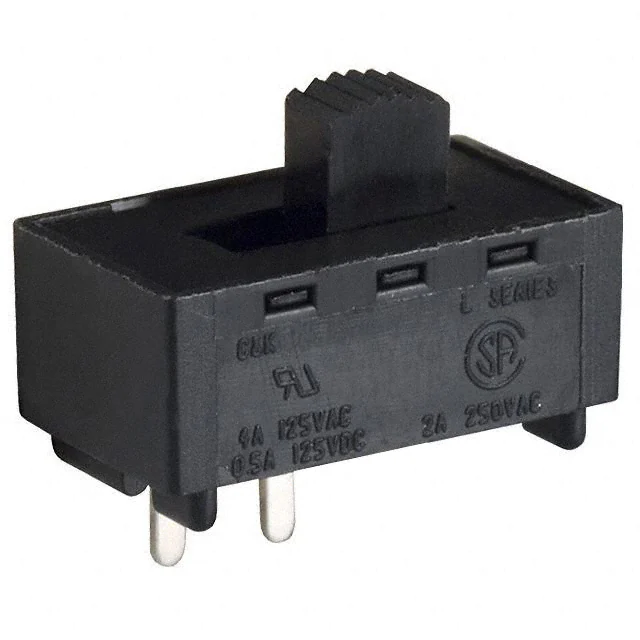

L101011MS02QSWITCH SLIDE SPST 4A 125V |
885 |
|
Datasheet |
L | Bulk | Active | SPST | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Off | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

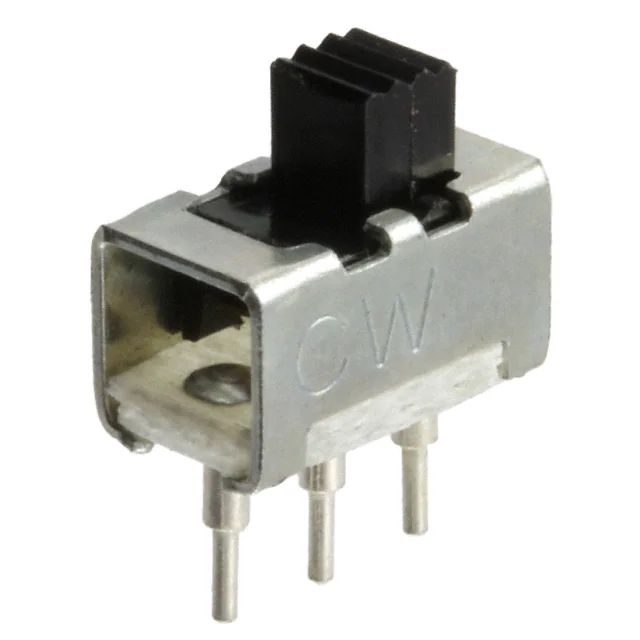

GS-115-0054SWITCH SLIDE SPDT 500MA 125V |
5,656 |
|
Datasheet |
GS | Bulk | Active | SPDT | Not Specified | 500mA (AC/DC) | 125 V | 125 V | On-On | Standard | 3.18mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

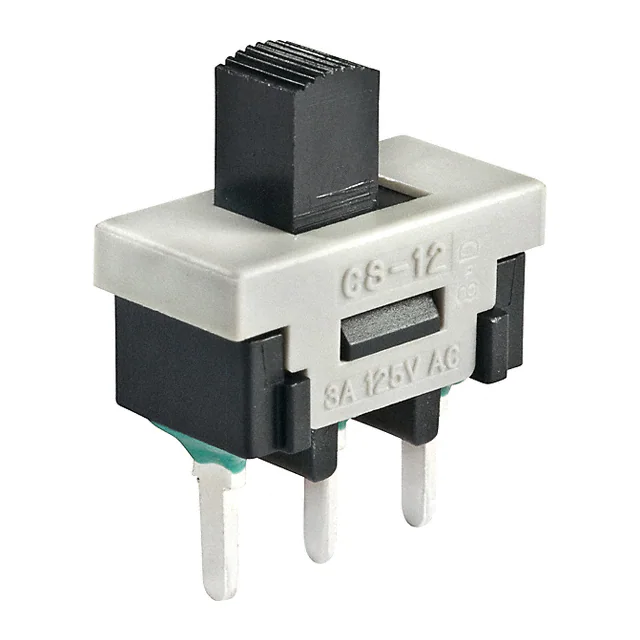

CS12ANW03SWITCH SLIDE SPDT 3A 125V |
38,879 |
|
Datasheet |
CS | Tray | Active | SPDT | Non-Shorting (BBM) | 3A (AC) | 125 V | - | On-On | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

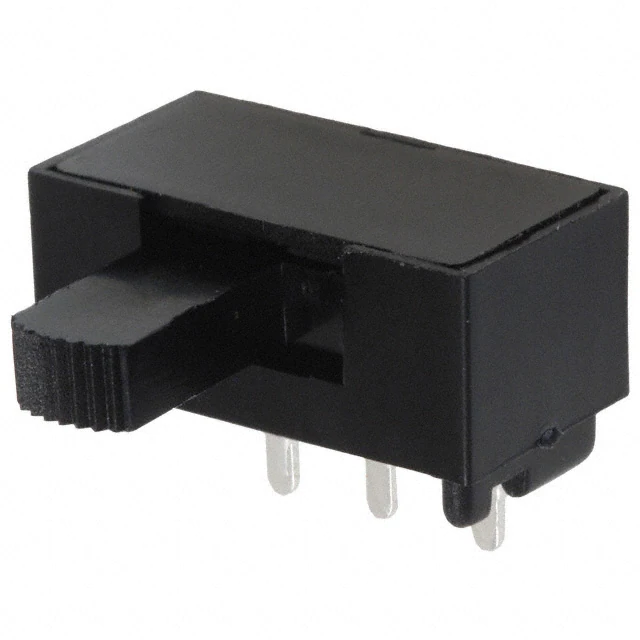

L102021ML04QSWITCH SLIDE SPDT 4A 125V |
321 |
|
Datasheet |
L | Bulk | Active | SPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-On | Standard | 8.51mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
AS1D-2M-10-ZSWITCH SLIDE SPDT 50MA 48V |
965 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 48 V | 48 V | On-On | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
|
500SSP1S1M6QEASWITCH SLIDE SPDT 5A 120V |
5,041 |
|
Datasheet |
500 | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GF-642-6010SWITCH SLIDE 4PDT 6A 125V |
621 |
|
Datasheet |
GF | Bulk | Active | 4PDT | Not Specified | 6A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|

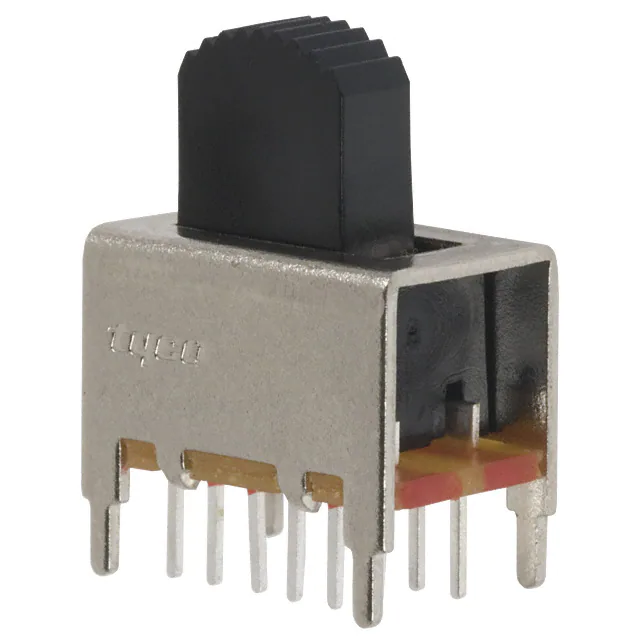

1825264-1SWITCH SLIDE 4PDT 300MA 125V |
1,190 |
|
Datasheet |
MSS | Bulk | Active | 4PDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 8.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
NK236WHSWITCH SLIDE SPDT 500MA 12V |
9,447 |
|
Datasheet |
NK | Bulk | Active | SPDT | Not Specified | 500mA (DC) | - | 12 V | On-On | Standard | 1.40mm | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
25139NAHSWITCH SLIDE SPDT 4A 125V |
4,489 |
|
Datasheet |
25000N | Bulk | Active | SPDT | Not Specified | 4A (AC), 1A (DC) | 125 V | 30 V | On-Off-On | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

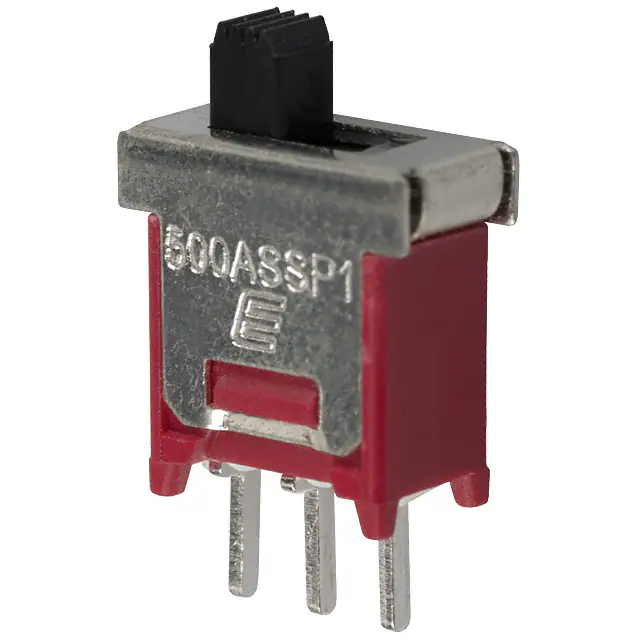

500ASSP1M2QESWITCH SLIDE SPDT 3A 120V |
1,861 |
|
Datasheet |
500A | Tray | Active | SPDT | Not Specified | 3A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.10mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
CS22BNW03SWITCH SLIDE DPDT 3A 125V |
10,673 |
|
Datasheet |
CS | Tray | Active | DPDT | Non-Shorting (BBM) | 3A (AC) | 125 V | - | On-On | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

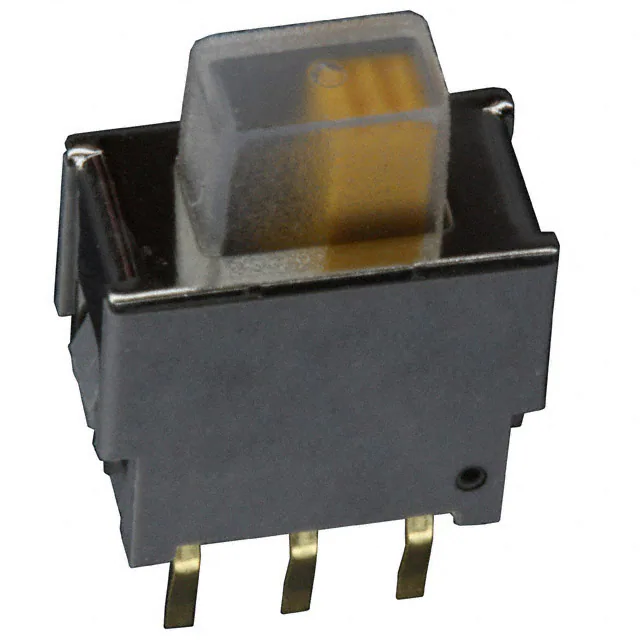

ASE2D-2M-10-ZSWITCH SLIDE DPDT 50MA 60V |
5,222 |
|
Datasheet |
ASE | Tray | Active | DPDT | Non-Shorting (BBM) | 50mA (AC/DC) | 60 V | 60 V | On-On | Standard | 2.80mm | - | Gold | Through Hole | PC Pin | Washable |
