| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS12SWITCH SLIDE SPDT 300MA 6V |
3,252 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Not Specified | 300mA (DC) | - | 6 V | On-On | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
|
GF-124-3011SWITCH SLIDE SPDT 3A 125V |
3,172 |
|
Datasheet |
GF | Bulk | Active | SPDT | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GF-124-0220SWITCH SLIDE SPDT 500MA 125V |
1,103 |
|
Datasheet |
GF | Bulk | Active | SPDT | Not Specified | 500mA (AC/DC) | 125 V | 125 V | On-On | Standard | 8.33mm | Copper | Silver | Panel Mount | PC Pin | - |
|
1825283-1SWITCH SLIDE SP3T 100MA 12V |
3,000 |
|
Datasheet |
SSJ | Bulk | Obsolete | SP3T | Shorting (MBB) | 100mA (DC) | - | 12 V | On-On-On | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

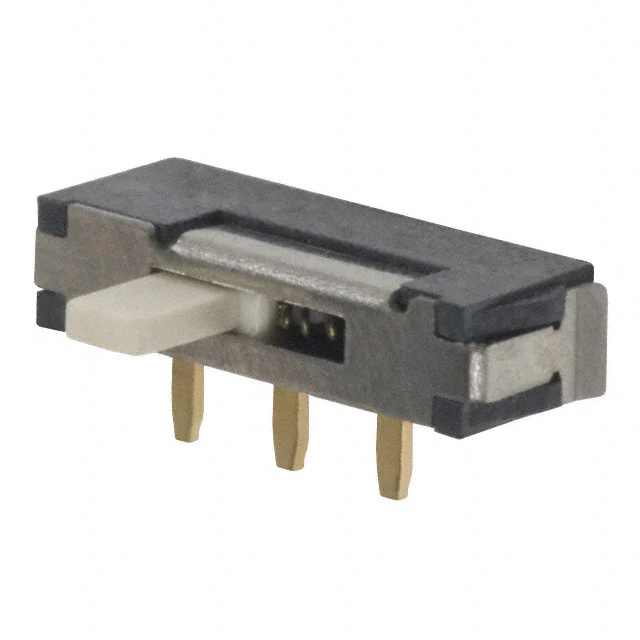

CSS-1211MCSWITCH SLIDE SPDT 100MA 12V |
2,690 |
|
Datasheet |
CSS | Tube | Active | SPDT | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-Mom | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
MHS223RASWITCH SLIDE DPDT 300MA 125V |
3,449 |
|
Datasheet |
MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-Off-On | Standard | 4.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
SS42H08G7SWITCH SLIDE |
4,179 |
|
Datasheet |
SS, COMAX | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MHS223SWITCH SLIDE DPDT 300MA 125V |
1,549 |
|
Datasheet |
MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-Off-On | Standard | 4.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SL16-24ANSSWITCH SLIDE |
2,206 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

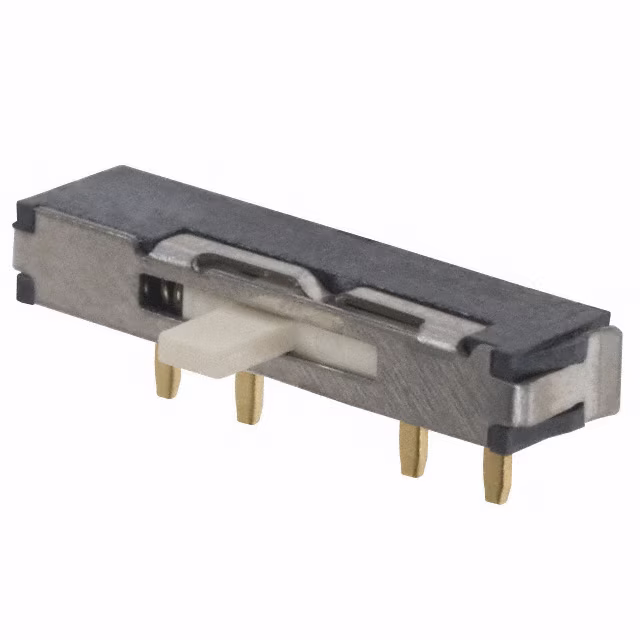

CSS-1311MCSWITCH SLIDE SP3T 100MA 12V |
1,385 |
|
Datasheet |
CSS | Tube | Active | SP3T | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On-Mom | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
G-127L-0009SWITCH SLIDE SP3T 3A 125V |
3,309 |
|
Datasheet |
G | Bulk | Active | SP3T | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
GF-126-0234SWITCH SLIDE DPDT 500MA 125V |
3,387 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 500mA (AC/DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
SS-22F02-AC11 V2 (U)SWITCH SLIDE |
2,011 |
|
Datasheet |
SS, COMAX | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AYZ0102AGRLSWITCH SLIDE SPDT 100MA 12V |
2,895 |
|
Datasheet |
AYZ | Tape & Reel (TR) | Obsolete | SPDT | Not Specified | 100mA (DC) | - | 12 V | On-On | Standard | 1.00mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
SS-22J06-G 6 ZBSWITCH SLIDE |
3,443 |
|
Datasheet |
SS, COMAX | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GF-126-0028SWITCH SLIDE DPDT 500MA 125V |
3,528 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 500mA (AC/DC) | 125 V | 125 V | On-On | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

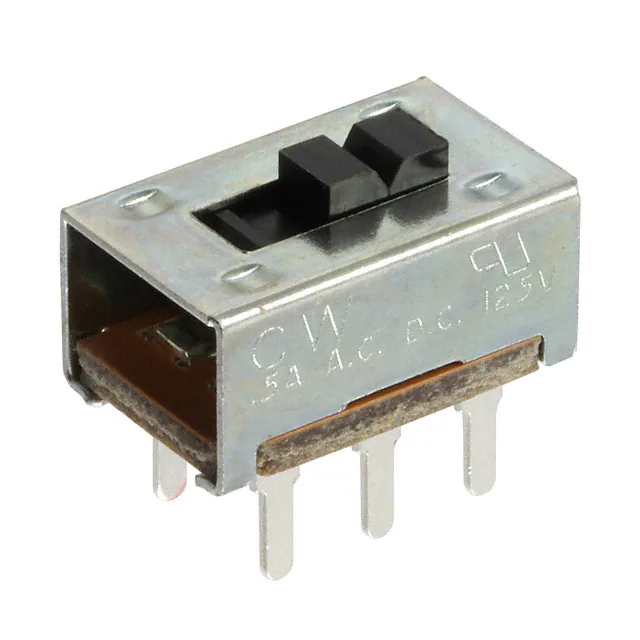

GF-126-0289SWITCH SLIDE DPDT 500MA 125V |
2,313 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 500mA (AC/DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | No Marking |
|
|
PM13B022SWITCH SLIDE DPDT 6A 125V |
3,980 |
|
Datasheet |
PM | Tube | Active | DPDT | Not Specified | 6A (AC) | 125 V | - | On-On | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
HASK0266SK-24F01-G 5 |
3,962 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

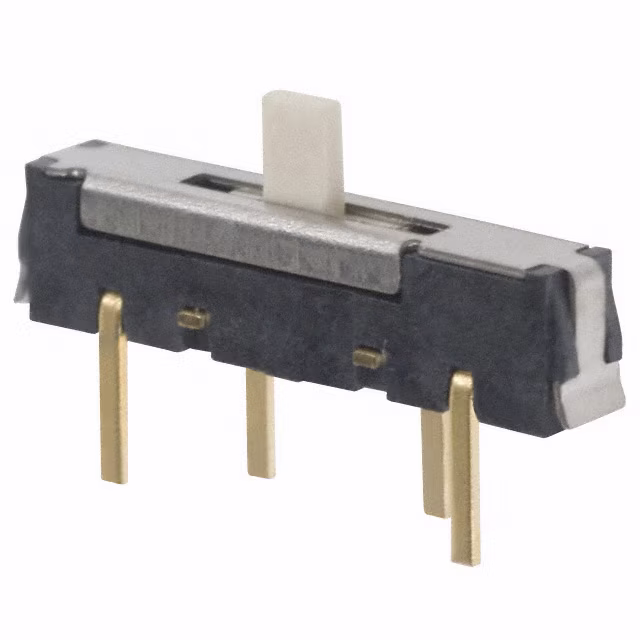

CSS-1302MCSWITCH SLIDE SP3T 100MA 12V |
2,873 |
|
Datasheet |
CSS | Tube | Active | SP3T | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | Mom-On-Mom | Standard | 2.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
