Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Number of Positions | Outer Dimension | Inner Dimension | Thermal Center Pad | Pitch | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0045-SVSOP-16 STENCIL |
3,621 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | VSOP | 16 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | 0.026" (0.65mm) | Stainless Steel |
|

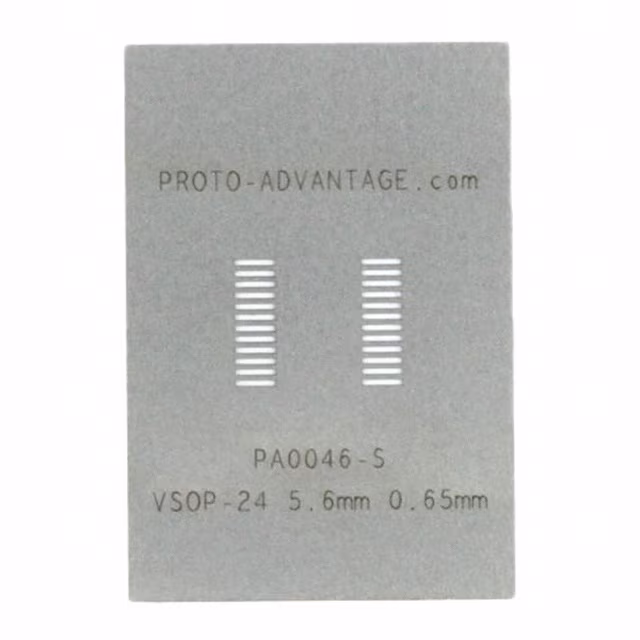

PA0046-SVSOP-24 STENCIL |
4,073 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | VSOP | 24 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | 0.026" (0.65mm) | Stainless Steel |
|
PA0047-SVSOP-28 STENCIL |
4,503 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | VSOP | 28 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | 0.026" (0.65mm) | Stainless Steel |
|
PA0043-SVSOP-8 STENCIL |
1,296 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | VSOP | 8 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | 0.026" (0.65mm) | Stainless Steel |
|

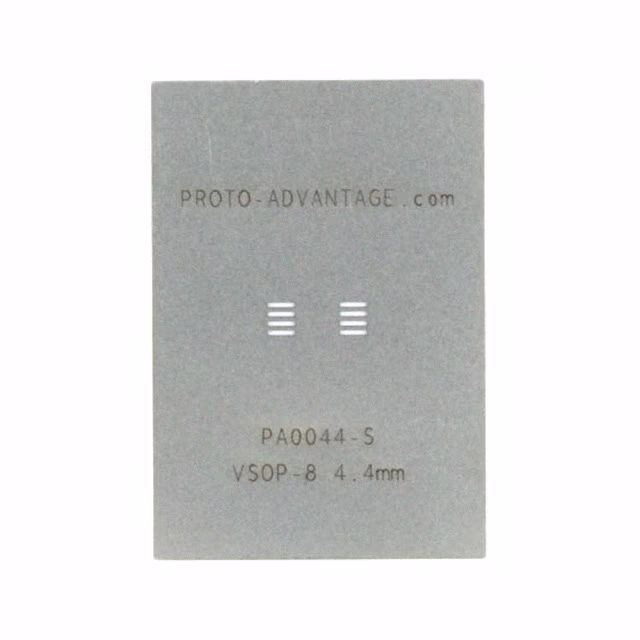

PA0044-SVSOP-8 STENCIL |
3,972 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | VSOP | 8 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | 0.026" (0.65mm) | Stainless Steel |
|

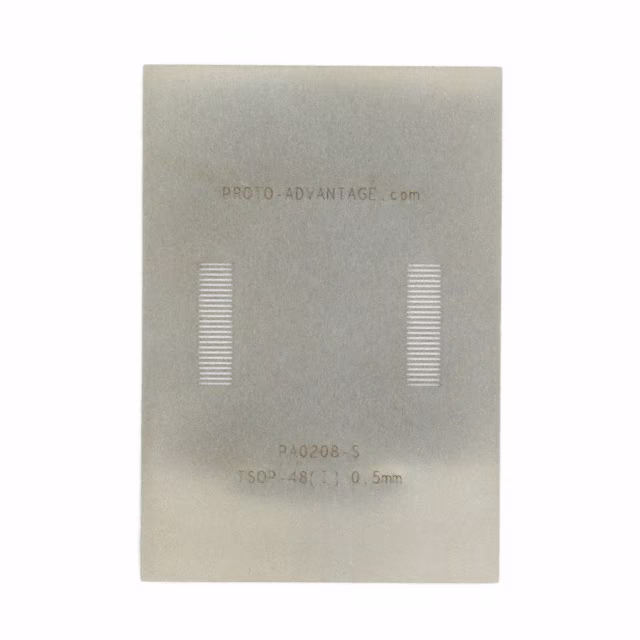

PA0208-STSOP-48 STENCIL |
2,974 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 48 | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | 0.020" (0.50mm) | Stainless Steel |
|

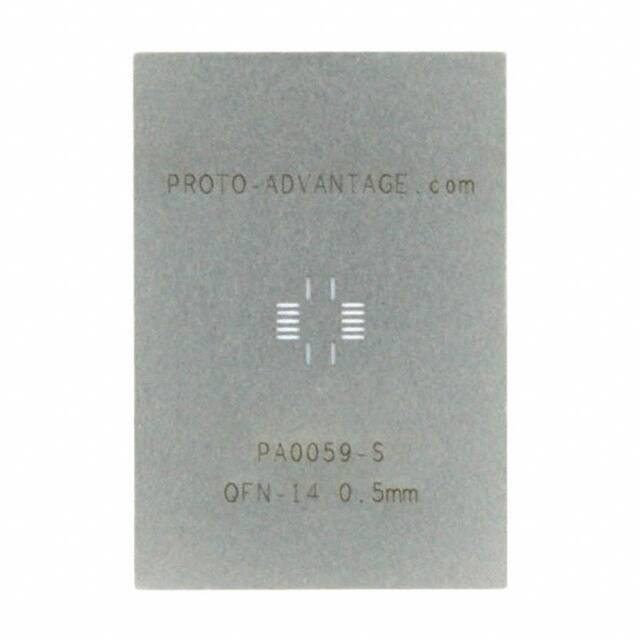

PA0059-SQFN-14 STENCIL |
1,953 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 14 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | 0.020" (0.50mm) | Stainless Steel |
|
IPC0151-SMSOP-12 (0.65MM PITCH, 4X3MM BOD |
3,845 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | MSOP | 12 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | - | 0.026" (0.65mm) | Stainless Steel |
|
IPC0154-SQFN-12/LFCSP-12 (0.4MM PITCH, 2X |
4,365 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.036" L x 0.036" W (0.92mm x 0.92mm) | 0.016" (0.40mm) | Stainless Steel |
|

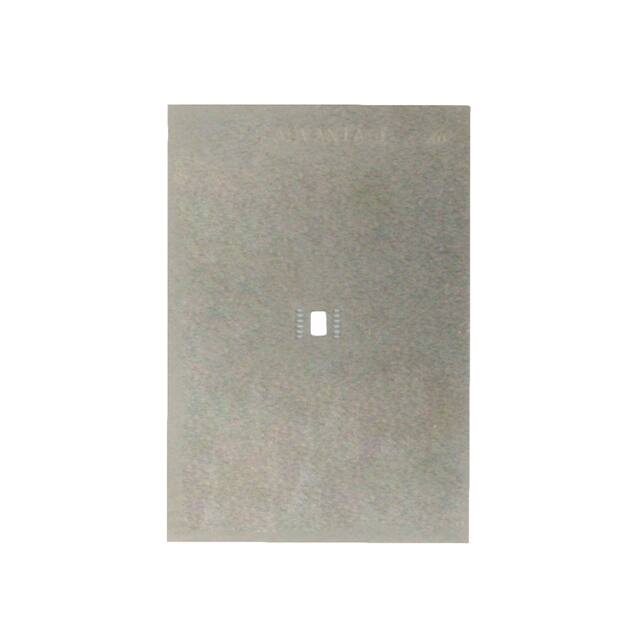

IPC0155-SDFN-12 (0.4MM PITCH, 3X3MM BODY) |
1,292 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.087" L x 0.066" W (2.20mm x 1.68mm) | 0.016" (0.40mm) | Stainless Steel |
|
IPC0156-STSSOP-44 (0.64MM PITCH, 14X6.1MM |
4,366 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | TSSOP | 44 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.240" W (14.00mm x 6.10mm) | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.025" (0.64mm) | Stainless Steel |
|
IPC0157-SDFN-10 (0.4MM PITCH, 2X2MM BODY) |
4,956 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.057" L x 0.035" W (1.45mm x 0.90mm) | 0.016" (0.40mm) | Stainless Steel |
|
IPC0158-SQFN-24/LFCSP-24 (0.5MM PITCH, 5X |
2,679 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.144" L x 0.065" W (3.65mm x 1.65mm) | 0.020" (0.50mm) | Stainless Steel |
|

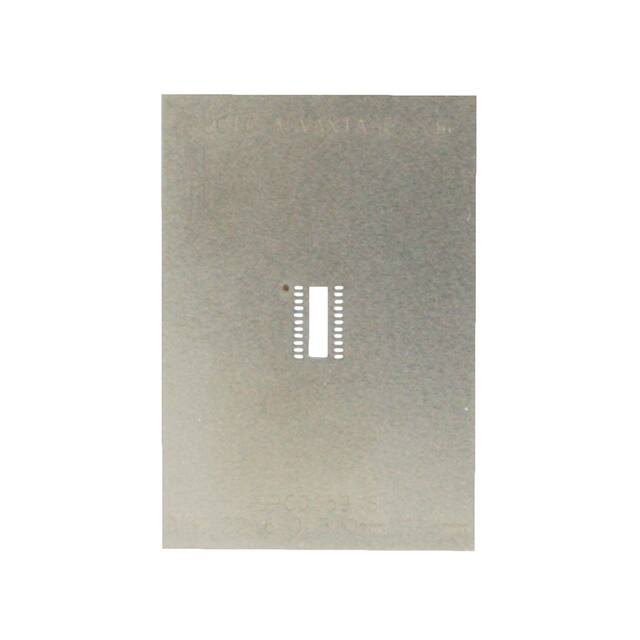

IPC0159-SDFN-22 (0.5MM PITCH, 6X3MM BODY) |
1,530 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 22 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.211" L x 0.065" W (5.35mm x 1.65mm) | 0.020" (0.50mm) | Stainless Steel |
|

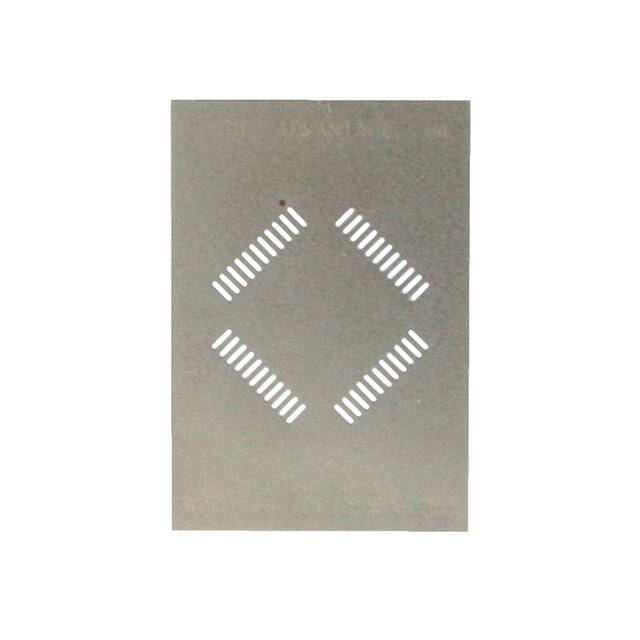

IPC0160-SMQFP-44 (0.8MM PITCH, 10X10MM BO |
2,612 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | MQFP | 44 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | 0.031" (0.80mm) | Stainless Steel |
|
IPC0161-SLGA-10 (0.65MM PITCH, 3X3MM BODY |
3,471 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | LGA | 10 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | 0.026" (0.65mm) | Stainless Steel |
|
IPC0162-SSSOP-24 (1MM PITCH, 13X6MM BODY) |
4,519 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | SSOP | 24 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.512" L x 0.236" W (13.00mm x 6.00mm) | - | 0.039" (1.00mm) | Stainless Steel |
|
IPC0163-SSOIC-32 (1.27MM PITCH, 20.4X11.3 |
3,182 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | SOIC | 32 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.803" L x 0.445" W (20.40mm x 11.30mm) | - | 0.050" (1.27mm) | Stainless Steel |
|
IPC0164-SDFN-8 (0.45MM PITCH, 2X3MM BODY) |
1,353 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.065" L x 0.053" W (1.65mm x 1.35mm) | 0.018" (0.45mm) | Stainless Steel |
|
IPC0165-SSON-6 (0.65MM PITCH, 2X2MM BODY) |
4,221 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | SON | 6 | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.067" L x 0.041" W (1.70mm x 1.05mm) | 0.026" (0.65mm) | Stainless Steel |
