Solenoids
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Technology | Type | Voltage - Rated | Stroke Length | Power (Watts) | Duty Cycle | DC Resistance (DCR) | Bushing Thread | Mounting Style | Termination Style | Size / Dimension | Diameter - Shaft | Shaft Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSML-0224-09SOLENOID PULL PULSE 9V |
3,085 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame (Pull) | 9VDC | 0.200" (5.08mm) | 11.2 W | Pulse | 7.4Ohm | - | Chassis Mount | Wire Leads | 0.910" L x 0.280" W x 0.330" H (23.11mm x 7.11mm x 8.38mm) | 0.130" (3.30mm) | Round |
|
55-28012-00SOLENOID PLUNGER |
1,935 |
|
Datasheet |
- | Bulk | Active | Electromechanical | - | - | - | - | - | - | - | - | - | - | - | - |
|
DSOL-0630-05EDC SOLENOID, OPEN FRAME PULL TYP |
4,374 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 0.500" (12.70mm) | 8.2 W | Intermittent | 3.2Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSOL-0630-24EDC SOLENOID, OPEN FRAME PULL TYP |
3,068 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.500" (12.70mm) | 8.5 W | Intermittent | 68Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSOL-0630-12EDC SOLENOID, OPEN FRAME PULL TYP |
1,216 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 12VDC | 0.500" (12.70mm) | 8.5 W | Intermittent | 17Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSOL-0630-18EDC SOLENOID, OPEN FRAME PULL TYP |
3,879 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 18VDC | 0.500" (12.70mm) | 8.5 W | Intermittent | 38Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
L9904ASOLENOID WITH PLUNGER |
2,747 |
|
Datasheet |
- | Bag | Active | Electromechanical | - | - | - | - | - | - | - | - | - | - | - | - |
|
DSOL-0844-09SOLENOID PULL CONTINUOUS 9V |
1,100 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 9VDC | 0.500" (12.70mm) | 20 W | Continuous | 4Ohm | - | Chassis Mount | Wire Leads | 1.730" L x 0.840" W x 1.130" H (43.94mm x 21.34mm x 28.70mm) | 0.313" (7.95mm) | Clevis |
|
|
DSOL-0844-18SOLENOID PULL CONTINUOUS 18V |
4,259 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 18VDC | 0.500" (12.70mm) | 20 W | Continuous | 16.2Ohm | - | Chassis Mount | Wire Leads | 1.730" L x 0.840" W x 1.130" H (43.94mm x 21.34mm x 28.70mm) | 0.313" (7.95mm) | Clevis |
|
DSML-0630-12ESOLENOID LATCH PULL INTER 12V |
4,993 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | 12VDC | 0.500" (12.70mm) | 9 W | Intermittent | 16Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSML-0630-24ESOLENOID LATCH PULL INTER 24V |
3,191 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | 24VDC | 0.500" (12.70mm) | 9 W | Intermittent | 64Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSML-0630-18CSOLENOID LATCH PULL CONT 18V |
3,975 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | 18VDC | 0.500" (12.70mm) | 4 W | Continuous | 82Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSML-0630-18ESOLENOID LATCH PULL INTER 18V |
1,303 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | 18VDC | 0.500" (12.70mm) | 9 W | Intermittent | 38Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|
|
DSML-0630-18PSOLENOID LATCH PULL PULSE 18V |
1,589 |
|
Datasheet |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | 18VDC | 0.500" (12.70mm) | 40 W | Pulse | 8Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|

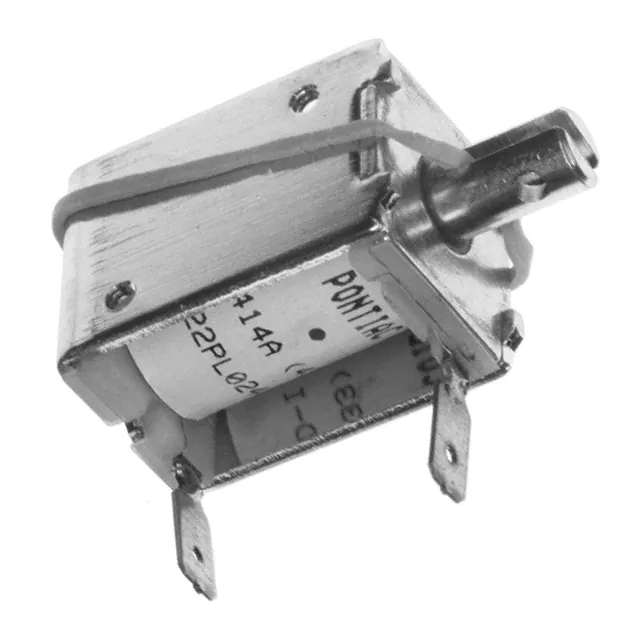

F0414ASOLENOID PULL INTERMITTENT 24V |
3,036 |
|
Datasheet |
L-22 | Bulk | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.500" (12.70mm) | 8.5 W | Intermittent | 68Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) | 0.250" (6.35mm) | Clevis |
|

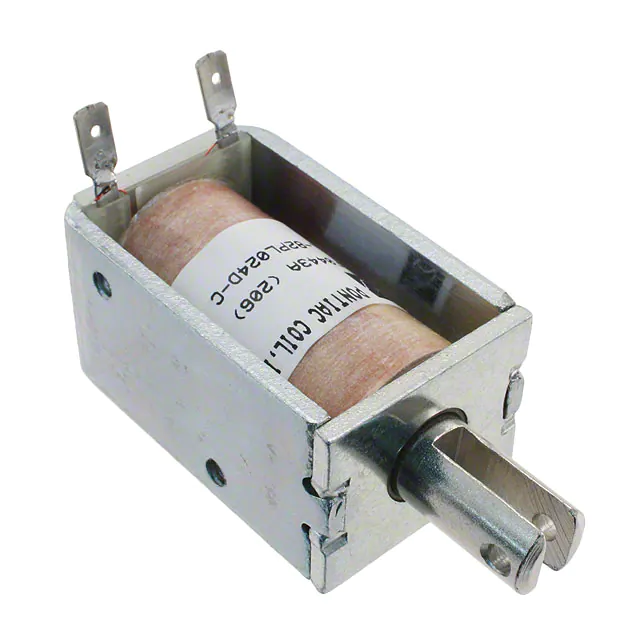

F0443ASOLENOID PULL CONTINUOUS 24V |
1,413 |
|
Datasheet |
L-82 | Bulk | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.750" (19.05mm) | 7.5 W | Continuous | 76.8Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|

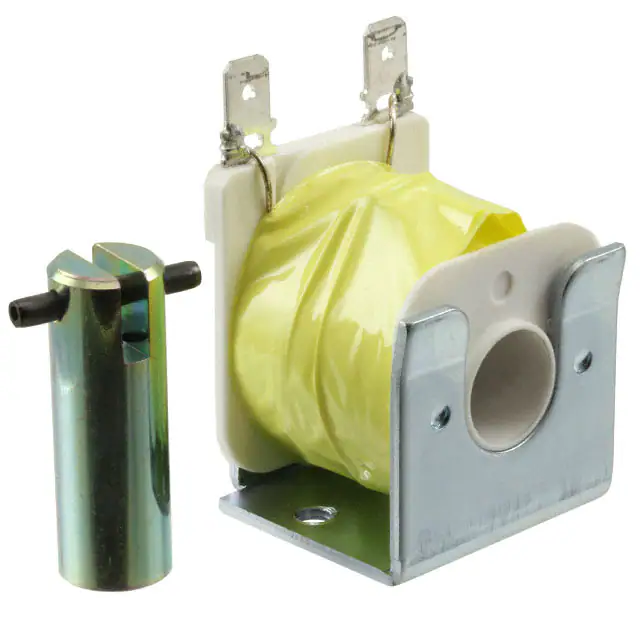

DSOL-1333-12ASOLENOID PULL CONTINUOUS 12V |
4,957 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 12VAC | 0.500" (12.70mm) | 10 W | Continuous | 13.5Ohm | - | Chassis Mount | Quick Connect | 1.250" L x 1.280" W x 1.380" H (32.51mm x 31.75mm x 35.05mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1333-18ASOLENOID PULL CONTINUOUS 18V |
3,549 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 18VAC | 0.500" (12.70mm) | 10 W | Continuous | 30Ohm | - | Chassis Mount | Quick Connect | 1.250" L x 1.280" W x 1.380" H (32.51mm x 31.75mm x 35.05mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1333-24ASOLENOID PULL CONTINUOUS 24V |
1,871 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 24VAC | 0.500" (12.70mm) | 10 W | Continuous | 73Ohm | - | Chassis Mount | Quick Connect | 1.250" L x 1.280" W x 1.380" H (32.51mm x 31.75mm x 35.05mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1333-48ASOLENOID PULL CONTINUOUS 48V |
1,712 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 48VAC | 0.500" (12.70mm) | 10 W | Continuous | 224Ohm | - | Chassis Mount | Quick Connect | 1.250" L x 1.280" W x 1.380" H (32.51mm x 31.75mm x 35.05mm) | 0.500" (12.70mm) | Clevis |
