Solenoids
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Technology | Type | Voltage - Rated | Stroke Length | Power (Watts) | Duty Cycle | DC Resistance (DCR) | Bushing Thread | Mounting Style | Termination Style | Size / Dimension | Diameter - Shaft | Shaft Detail |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSOL-1151-24CSOLENOID PULL 3/4" 24VDC 100% |
165 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.750" (19.05mm) | 7.5 W | Continuous | 76.8Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.140" W x 0.984" H (49.99mm x 28.96mm x 24.99mm) | 0.433" (11.00mm) | Clevis |
|
|
DSOL-1151-12CSOLENOID PULL 3/4" 12VDC 100% |
154 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 12VDC | 0.750" (19.05mm) | 7.5 W | Continuous | 19.2Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.140" W x 0.984" H (49.99mm x 28.96mm x 24.99mm) | 0.433" (11.00mm) | Clevis |
|
|
DSOL-1351-05ESOLENOID PULL 1" 5VDC 25% |
189 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 1.000" (25.40mm) | 44 W | Intermittent | 600mOhm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.574" W x 1.417" H (49.99mm x 39.98mm x 35.99mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1351-05CSOLENOID PULL 1" 5VDC 100% |
183 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 1.000" (25.40mm) | 11 W | Continuous | 2.3Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.574" W x 1.417" H (49.99mm x 39.98mm x 35.99mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1351-24CSOLENOID PULL 1" 24VDC 100% |
170 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 24VDC | 1.000" (25.40mm) | 11 W | Continuous | 52Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.574" W x 1.417" H (49.99mm x 39.98mm x 35.99mm) | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1367-05ESOLENOID PULL 1-1/4" 5VDC 25% |
178 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 1.250" (31.75mm) | 48 W | Intermittent | 600mOhm | - | Chassis Mount | Wire Leads | - | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1367-05CSOLENOID PULL 1-1/4" 5VDC 100% |
166 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 1.250" (31.75mm) | 13 W | Continuous | 1.9Ohm | - | Chassis Mount | Wire Leads | - | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1367-12ESOLENOID PULL 1-1/4" 12VDC 25% |
160 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 12VDC | 1.250" (31.75mm) | 48 W | Intermittent | 3Ohm | - | Chassis Mount | Wire Leads | - | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1367-24CSOLENOID PULL 1-1/4" 24VDC 100% |
144 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 24VDC | 1.250" (31.75mm) | 13 W | Continuous | 44Ohm | - | Chassis Mount | Wire Leads | - | 0.500" (12.70mm) | Clevis |
|
|
DSOL-1151-05CSOLENOID PULL 3/4" 5VDC 100% |
179 |
|
Datasheet |
DSOL | Box | Active | Electromechanical | Open Frame (Pull) | 5VDC | 0.750" (19.05mm) | 7.5 W | Continuous | 3.4Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.968" L x 1.140" W x 0.984" H (49.99mm x 28.96mm x 24.99mm) | 0.433" (11.00mm) | Clevis |
|
DSOS-0416-18DDC SOLENOID, OPEN FRAME PUSH TYP |
243 |
|
Datasheet |
DSOS | Box | Active | Electromechanical | Open Frame (Push) | 18VDC | 0.060" (1.52mm) | 3.6 W | Intermittent | 88Ohm | - | Chassis Mount | - | 0.622" L x 0.304" W x 0.393" H (15.80mm x 7.72mm x 9.98mm) | 0.165" (4.19mm) | Round |
|
C8-273-M-36OPEN FRAME SOLENOID C8 - 12 VDC |
217 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | 12VDC | 0.350" (8.89mm) | 14 W | Intermittent | 9.3Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.130" L x 0.750" W x 0.810" H (28.70mm x 19.05mm x 20.57mm) | 0.250" (6.35mm) | Clevis |
|
HDS1-G3-12SOLENOID INTER 12V GND |
1,020 |
|
Datasheet |
HDS1 | Bulk | Active | Electromechanical | Closed Frame (Pull) | 12VDC | - | 2.4 kW | Intermittent | 4Ohm | - | Chassis Mount | Screw Terminal | - | - | - |
|
B22-254-M-36OPEN FRAME SOLENOID B22 - 12 VDC |
107 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | - | - | - | - | 14.6Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm) | 0.500" (12.70mm) | Clevis |
|
B17-253-A-1OPEN FRAME SOLENOID B17 - 24 VDC |
480 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.100" (2.54mm) | 1.6 W | Continuous | 337Ohm | - | Chassis Mount | Wire Leads | 0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm) | 0.190" (4.83mm) | Clevis |
|

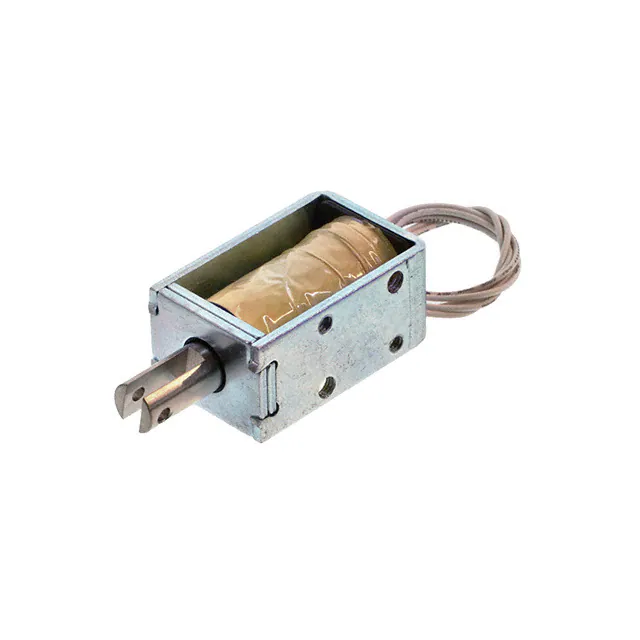

B11HD-255-B-3OPEN FRAME SOLENOID B11HD - 12 V |
159 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | 12VDC | 0.625" (15.88mm) | 34.3 W | Intermittent | 4.2Ohm | - | Chassis Mount | Wire Leads | 2.000" L x 0.940" W x 1.250" H (50.80mm x 23.88mm x 31.75mm) | 0.437" (11.10mm) | Clevis |
|
HDS2-I4-12SOLENOID CONT 12V INSUL |
203 |
|
Datasheet |
HDS2 | Bulk | Active | Electromechanical | Closed Frame (Pull), Tubular | 12VDC | - | 1.2 kW | Continuous | 15Ohm | - | Chassis Mount | Screw Terminal | - | - | - |
|
HDS2-G3-12SOLENOID CONT 12V GND |
170 |
|
Datasheet |
HDS2 | Bulk | Active | Electromechanical | Closed Frame (Pull), Tubular | 12VDC | - | 1.2 kW | Continuous | 15Ohm | - | Chassis Mount | Screw Terminal | - | - | - |
|
B12-253-B-3OPEN FRAME SOLENOID B12 - 24 VDC |
492 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | 24VDC | 0.100" (2.54mm) | 1.3 W | Continuous | 443.1Ohm | - | Chassis Mount | Wire Leads | 0.630" L x 0.320" W x 0.400" H (16.00mm x 8.13mm x 10.16mm) | 0.157" (4.00mm) | Round |
|
B12P-254-B-3OPEN FRAME SOLENOID B12P - 12 VD |
219 |
|
Datasheet |
- | Bulk | Active | Electromechanical | Open Frame (Push) | - | - | - | - | 110.8Ohm | - | Chassis Mount | Wire Leads | 0.630" L x 0.320" W x 0.400" H (16.00mm x 8.13mm x 10.16mm) | 0.157" (4.00mm) | Groove |
