| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7914J-1-000ESWITCH TACTILE SPST-NO 0.1A 16V |
101,085 |
|
Datasheet |
7914 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.19mm | 0.1A @ 16VAC/DC | - | Top Actuated | J Lead | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
TL3304AF160QJSWITCH TACTILE SPST-NO 0.05A 50V |
24,461 |
|
Datasheet |
TL3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.40mm | 0.05A @ 50VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
B3WN-6002SWITCH TACTILE SPST-NO 0.05A 12V |
6,256 |
|
Datasheet |
B3WN | Cut Tape (CT) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | Sealed - Fully | -25°C ~ 85°C |
|
KMR231NG LFSSWITCH TACTILE SPST-NO 0.05A 32V |
10,376 |
|
Datasheet |
KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.90mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
EVQ-P46B3MSWITCH TACTILE SPST-NO 0.02A 15V |
4,216 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
ATS2D3G NC LFGSWITCH TACTILE SPST-NC 0.01A 32V |
34,132 |
|
Datasheet |
ATS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | Standard | Surface Mount | 3.20mm | 0.01A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP54 - Dust Protected, Water Resistant | - | 204gf | - | - | -40°C ~ 125°C |
|
KSC243J LFGSWITCH TACTILE SPST-NO 0.01A 32V |
20,513 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.01A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -40°C ~ 125°C |
|
KSA0V311 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
10,534 |
|
Datasheet |
KSA | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 32VDC | 3.23mm | Side Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | IP60 - Dust Tight | - | 130gf | - | - | -40°C ~ 90°C |
|
|
PTS820J20MSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
50,422 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
PTS820J25MSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
39,791 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVP-AA102KSWITCH TACTILE SPST-NO 0.02A 15V |
9,594 |
|
Datasheet |
EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 1.70mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -40°C ~ 85°C |
|
PTS820 J25K SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,302 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
B3SN-3012PSWITCH TACTILE SPST-NO 0.05A 24V |
41,613 |
|
Datasheet |
B3SN | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3U-1000P-BSWITCH TACTILE SPST-NO 0.05A 12V |
13,952 |
|
Datasheet |
B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.60mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.50mm | Non-Illuminated | Dust Proof | - | 153gf | - | - | -25°C ~ 70°C |
|

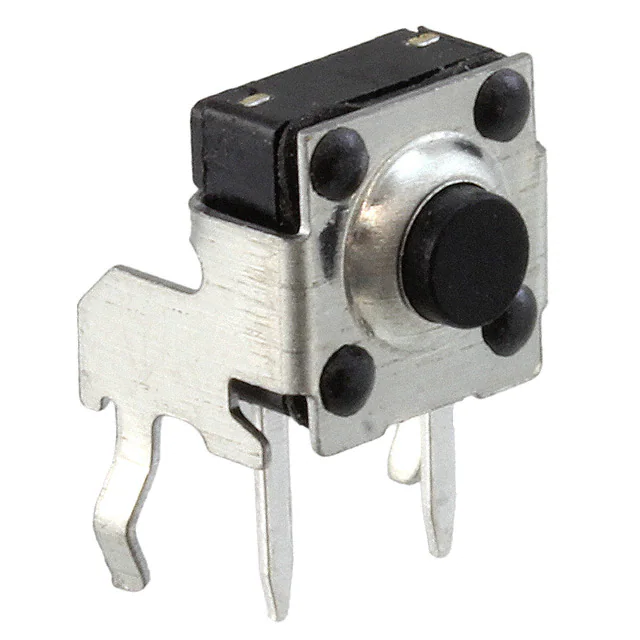

1571610-2SWITCH TACTILE SPST-NO 0.05A 24V |
12,141 |
|
Datasheet |
FSMRAJS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 24VDC | 3.85mm | Side Actuated | PC Pin | 6.90mm x 6.80mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | -35°C ~ 85°C |
|
TL6330AF200QSWITCH TACTILE SPST-NO 0.05A 32V |
19,442 |
|
Datasheet |
TL6330 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 1.90mm | 0.05A @ 32VDC | - | Top Actuated | SMD (SMT) Tab | 4.60mm x 2.80mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|
7914G-1-032ESWITCH TACTILE SPST-NO 0.1A 16V |
10,751 |
|
Datasheet |
7914 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.43mm | 0.1A @ 16VAC/DC | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
|
KMR421NG ULC LFSSWITCH TACTILE SPST-NO 0.05A 32V |
10,140 |
|
Datasheet |
KMR4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

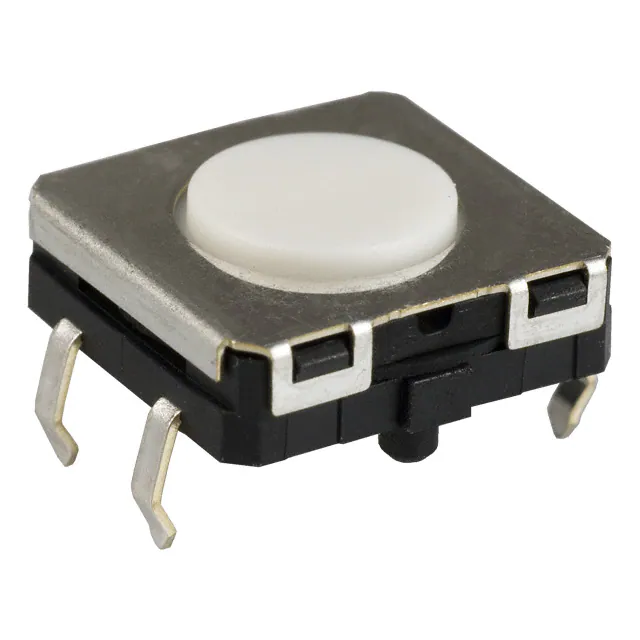

B3W-4000SWITCH TACTILE SPST-NO 0.05A 24V |
7,652 |
|
Datasheet |
B3W | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -25°C ~ 70°C |
|
|
PTS830GM140SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
56,766 |
|
Datasheet |
PTS830 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.40mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.50mm x 2.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
