| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9012-Y2NSWITCH TACTILE SPST-NO 0.05A 24V |
274 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 230gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-G2GSWITCH TACTILE SPST-NO 0.05A 24V |
281 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 160gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-B1BSWITCH TACTILE SPST-NO 0.05A 24V |
278 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Blue | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-G2NSWITCH TACTILE SPST-NO 0.05A 24V |
124 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9012-HG2NSWITCH TACTILE SPST-NO 0.05A 24V |
300 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
104 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Blue | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
444BD21025816SWITCH TACTILE SPST-NO 0.05A 12V |
5,731 |
|
Datasheet |
WS-TASL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | - | LED, Blue/Blue | 160gf | 3.2 VDC | - | -40°C ~ 85°C |
|
JB15HKP-4HHSWITCH TACT SPST-NO 0.125A 24V |
4,725 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
B3W-9010-HG1GSWITCH TACTILE SPST-NO 0.05A 24V |
300 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9010-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
137 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-B1BSWITCH TACTILE SPST-NO 0.05A 24V |
239 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Blue | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
TL1270F160BLQATSWITCH TACTILE SPST-NO 0.05A 12V |
534 |
|
Datasheet |
TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | - | LED, Blue | 160gf | 3.6 VDC | - | -40°C ~ 85°C |
|
|
1241.1090.7000SWITCH TACTILE |
187 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B3W-9012-RHG2NSWITCH TACTILE SPST-NO 0.05A 24V |
299 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green/Red | 230gf | 1.8, 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
JB15HLPC-BHSWITCH TACT SPST-NO 0.125A 24V |
4,466 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
B3W-9010-B1BSWITCH TACTILE SPST-NO 0.05A 24V |
296 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Blue | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
440YS67082622SWITCH TACTILE SPST-NO 0.05A 12V |
159 |
|
Datasheet |
WS-TATL | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 8.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 220gf | 2 VDC | - | -40°C ~ 85°C |
|
ITS40FV2SRSWITCH TACTILE SPST-NO 0.05A 12V |
243 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | - | LED, Blue | 160gf | 3.6 VDC | - | -25°C ~ 70°C |
|

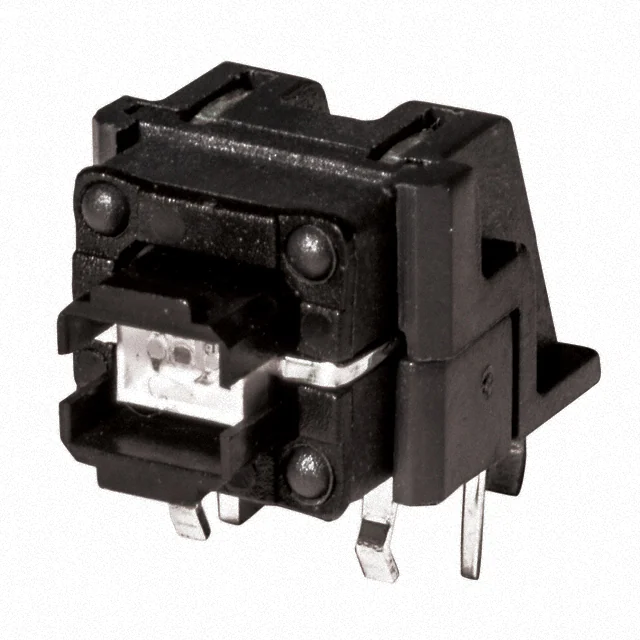

ITS23FR2STSWITCH TACTILE SPST-NO 0.05A 12V |
4,057 |
|
Datasheet |
ITS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | - | LED, Green/Yellow | 160gf | 2.5 VDC | - | -25°C ~ 70°C |
|
TL6210AF200BQSWITCH TACTILE SPST-NO 0.05A 12V |
955 |
|
Datasheet |
TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 3.72mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 200gf | 3.3 VDC | - | -20°C ~ 70°C |
