| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6155AF350QSWITCH TACTILE SPST-NO 0.05A 32V |
907 |
|
Datasheet |
TL6155 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 32VDC | 3.90mm | Side Actuated | PC Pin | 6.55mm x 6.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|
TL6100AF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
1,110 |
|
Datasheet |
TL6100 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | Process Sealed | -40°C ~ 85°C |
|
USLPT2616CT2TRSWITCH TACTILE SPST-NO 0.02A 15V |
4,164 |
|
Datasheet |
LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.55mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 2.60mm x 1.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
B3U-3100PMSWITCH TACTILE SPST-NO 0.05A 12V |
1,331 |
|
Datasheet |
B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | Dust Proof | - | 162gf | - | Grounding Pin | -25°C ~ 70°C |
|
434381035816SWITCH TACTILE SPST-NO 0.02A 15V |
232 |
|
Datasheet |
WS-TASU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
ILS TA180 10SWITCH TACTILE SPST-NO 0.1A 30V |
540 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Red | 180gf | 2.6 VDC | - | -40°C ~ 85°C |
|
B3U-3000PMSWITCH TACTILE SPST-NO 0.05A 12V |
1,038 |
|
Datasheet |
B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | SMD (SMT) Tab | 4.00mm x 2.50mm | Non-Illuminated | Dust Proof | - | 162gf | - | - | -25°C ~ 70°C |
|

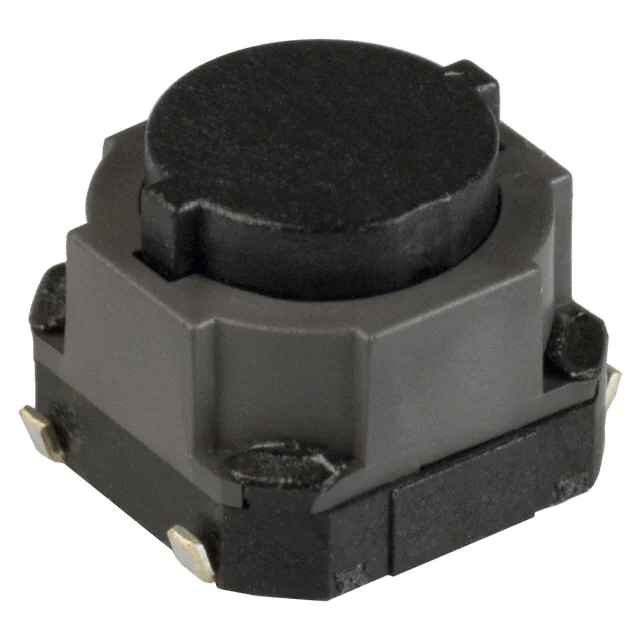

EVQ-Q1E06KSWITCH TACTILE SPST-NO 0.05A 12V |
900 |
|
Datasheet |
EVQQ1 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 6.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 9.90mm x 8.00mm | Non-Illuminated | Dust Proof | - | 500gf | - | - | -40°C ~ 85°C |
|
|
K5V 1 BU 4 3 TSWITCH TACTILE SPDT 0.1A 32V |
2,944 |
|
Datasheet |
K5V | Tray | Active | SPDT | On-Mom | Translucent | Through Hole, Right Angle | - | 0.1A @ 32VDC | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | IP40 | LED, Blue | 400gf | - | Tactile Feedback | -40°C ~ 85°C |
|

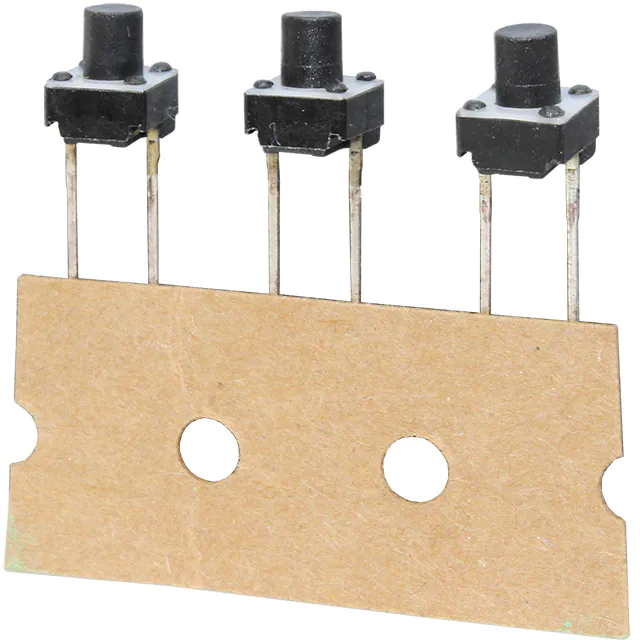

CR1102H7.3F160SWITCH TACTILE SPST-NO 0.05A 50V |
843 |
|
Datasheet |
CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.30mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CT110215.0F160SWITCH TACTILE SPST-NO 0.05A 50V |
945 |
|
Datasheet |
CT1102 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 15.00mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TS02-66-153-BK-260-LCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
630 |
|
Datasheet |
TS02 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 15.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
CT1102V6.85F160SWITCH TACTILE SPST-NO 0.05A 50V |
880 |
|
Datasheet |
CT1102V | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 50VDC | 6.85mm | Side Actuated | PC Pin | 7.50mm x 6.30mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
CT1102V5.85F160SWITCH TACTILE SPST-NO 0.05A 50V |
718 |
|
Datasheet |
CT1102V | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 50VDC | 5.85mm | Side Actuated | PC Pin | 7.50mm x 6.30mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
CR1102H7.3F100SWITCH TACTILE SPST-NO 0.05A 50V |
978 |
|
Datasheet |
CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.30mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
TS11-674-43-BK-100-RA-DSWITCH TACTILE SPST-NO 0.05A 12V |
891 |
|
Datasheet |
TS11 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 4.30mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
TS11-674-73-BK-100-RA-DSWITCH TACTILE SPST-NO 0.05A 12V |
804 |
|
Datasheet |
TS11 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 7.30mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
TS11-674-55-BK-160-RA-DSWITCH TACTILE SPST-NO 0.05A 12V |
766 |
|
Datasheet |
TS11 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 5.50mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|

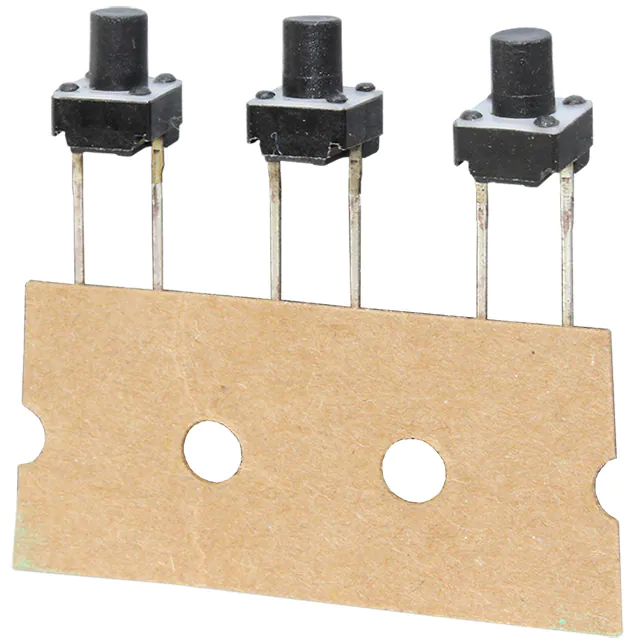

CR1102H9.5F160SWITCH TACTILE SPST-NO 0.05A 50V |
687 |
|
Datasheet |
CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 9.50mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL1105FF250QSWITCH TACTILE SPST-NO 0.05A 12V |
489 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
