| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADTSM65YVTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,134 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 9.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 520gf | - | Tactile Feedback | -25°C ~ 70°C |
|
STV8.35LF260QSWITCH TACTILE SPST-NO 0.05A 48V |
993 |
|
Datasheet |
STV | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 48VDC | 8.35mm | Side Actuated | PC Pin | 8.20mm x 5.80mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
STV8.35LF520QSWITCH TACTILE SPST-NO 0.05A 48V |
972 |
|
Datasheet |
STV | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 48VDC | 8.35mm | Side Actuated | PC Pin | 8.20mm x 5.80mm | Non-Illuminated | - | - | 520gf | - | - | -40°C ~ 85°C |
|
STV4.35LF260QSWITCH TACTILE SPST-NO 0.05A 48V |
965 |
|
Datasheet |
STV | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 48VDC | 4.35mm | Side Actuated | PC Pin | 8.20mm x 5.80mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
ILS TC180 10SWITCH TACTILE SPST-NO 0.1A 30V |
928 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Red | 180gf | 2.6 VDC | - | -40°C ~ 85°C |
|
ILS TC250 30SWITCH TACTILE SPST-NO 0.1A 30V |
922 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Green/Yellow | 250gf | 2.3 VDC | - | -40°C ~ 85°C |
|
|
STV4.35LF520QSWITCH TACTILE SPST-NO 0.05A 48V |
466 |
|
Datasheet |
STV | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 48VDC | 4.35mm | Side Actuated | PC Pin | 8.20mm x 5.80mm | Non-Illuminated | - | - | 520gf | - | - | -40°C ~ 85°C |
|
|
MJTPSHWASWITCH TACTILE SPST-NO 0.05A 12V |
990 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 2.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
ADTSM62KSVTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,515 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
ILS TC250 40SWITCH TACTILE SPST-NO 0.1A 30V |
786 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Blue | 250gf | 3.2 VDC | - | -40°C ~ 85°C |
|
|
ILS TC180 40SWITCH TACTILE SPST-NO 0.1A 30V |
955 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Blue | 180gf | 3.2 VDC | - | -40°C ~ 85°C |
|

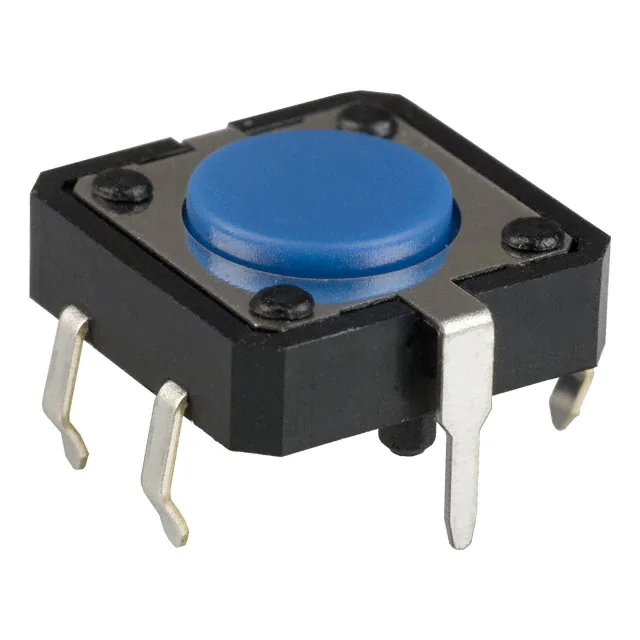

B3F-5100SWITCH TACTILE SPST-NO 0.05A 24V |
306 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
TL1100F260Q5JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
504 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | Rectangular Button | Through Hole | 9.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|

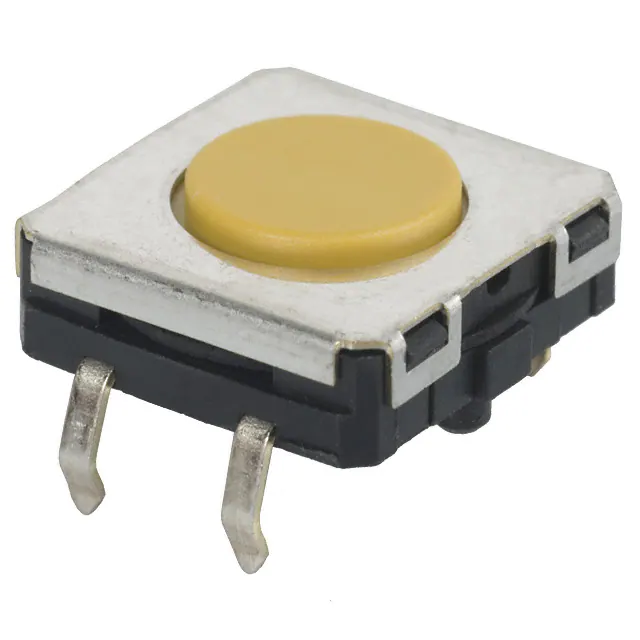

B3W-4005SSWITCH TACTILE SPST-NO 0.05A 24V |
3,100 |
|
Datasheet |
B3W | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -25°C ~ 70°C |
|
1571220-1SWITCH TACTILE SPST-NO 0.05A 24V |
265 |
|
Datasheet |
- | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -35°C ~ 85°C |
|
95CW06C3JTSWITCH TACTILE SPST-NO 0.05A 12V |
1,722 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -25°C ~ 70°C |
|
FSMIJM63AR04SWITCH TACTILE SPST-NO 0.05A 12V |
3,568 |
|
Datasheet |
FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | - | LED, Red | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ63BA04SWITCH TACTILE SPST-NO 0.05A 12V |
4,259 |
|
Datasheet |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Orange | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ61BA04SWITCH TACTILE SPST-NO 0.05A 12V |
1,343 |
|
Datasheet |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Orange | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
FSMIJ63AG04SWITCH TACTILE SPST-NO 0.05A 12V |
2,154 |
|
Datasheet |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Green/Yellow | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
