| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15HAP-4BCSWITCH TACT SPST-NO 0.125A 24V |
2,505 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4HCSWITCH TACT SPST-NO 0.125A 24V |
2,989 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
ITS40FV3SRSWITCH TACTILE SPST-NO 0.05A 12V |
3,663 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | J Lead | 7.50mm x 7.00mm | Illuminated | - | LED, Blue | 160gf | 3.6 VDC | - | -25°C ~ 70°C |
|
|
JB15LPC-CSWITCH TACTILE SPST-NO 0.05A 24V |
2,428 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPF-FSWITCH TACTILE SPST-NO 0.05A 24V |
2,176 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPE-BBSWITCH TACTILE SPST-NO 0.05A 24V |
2,594 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 176gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPC-BFSWITCH TACTILE SPST-NO 0.05A 24V |
1,443 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPE-BESWITCH TACTILE SPST-NO 0.05A 24V |
2,433 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 176gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPC-BESWITCH TACTILE SPST-NO 0.05A 24V |
2,835 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPGSWITCH TACT SPST-NO 0.125A 24V |
1,879 |
|
Datasheet |
JB | Bulk | Discontinued | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPC-BSWITCH TACT SPST-NO 0.125A 24V |
3,892 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPF-BSWITCH TACT SPST-NO 0.125A 24V |
4,820 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPE-JBSWITCH TACT SPST-NO 0.125A 24V |
3,428 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPE-BFSWITCH TACT SPST-NO 0.125A 24V |
1,678 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPC-BCSWITCH TACT SPST-NO 0.125A 24V |
1,106 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPE-BCSWITCH TACTILE SPST-NO 0.13A 24V |
3,499 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.13A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | - | -25°C ~ 70°C |
|

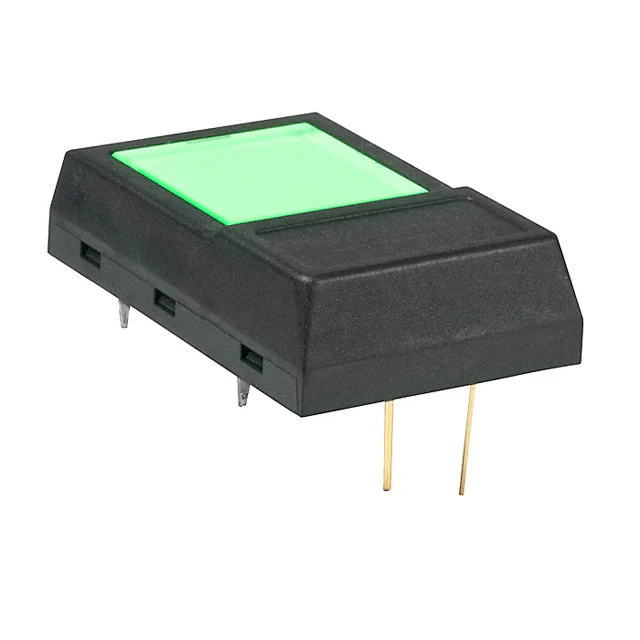

JF15AP1FFSWITCH TACTILE SPST-NO 0.05A 24V |
4,562 |
|
Datasheet |
JF | Bulk | Obsolete | SPST-NO | Off-Mom | Square Button | Through Hole | 6.70mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Green | 300gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
3.14.002.633/0000SWITCH TACTILE SPST-NO 0.1A 35V |
1,176 |
|
Datasheet |
RF19H | Bulk | Obsolete | SPST-NO | Off-Mom | Square Button | Through Hole | 12.50mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, Green | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
JST1105A-3SWITCH TACTILE SPST-NO 0.05A 12V |
1,000 |
|
Datasheet |
JST | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 85°C |
|
JST1105-0SWITCH TACTILE SPST-NO 0.05A 12V |
1,000 |
|
Datasheet |
JST | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 85°C |
