| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
95C06A2TSWITCH TACTILE SPST-NO 0.05A 12V |
3,924 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06B2TSWITCH TACTILE SPST-NO 0.05A 12V |
3,076 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06B3TSWITCH TACTILE SPST-NO 0.05A 12V |
2,605 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06C3TSWITCH TACTILE SPST-NO 0.05A 12V |
2,799 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06C4TSWITCH TACTILE SPST-NO 0.05A 12V |
1,180 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
ST4.3LF160QSWITCH TACTILE SPST-NO 0.05A 48V |
4,502 |
|
Datasheet |
ST | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 48VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
FSM10JSWITCH TACTILE SPST-NO 0.05A 24V |
1,971 |
|
Datasheet |
FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 7.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

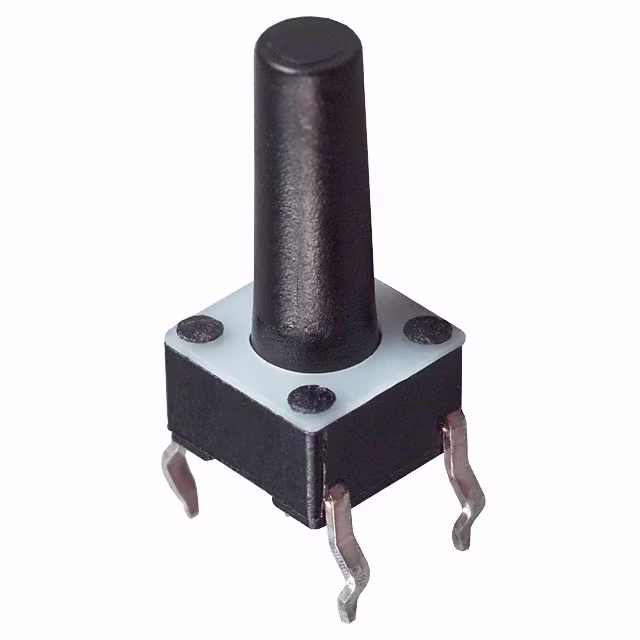

FSM14JSWITCH TACTILE SPST-NO 0.05A 24V |
3,350 |
|
Datasheet |
FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 13.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

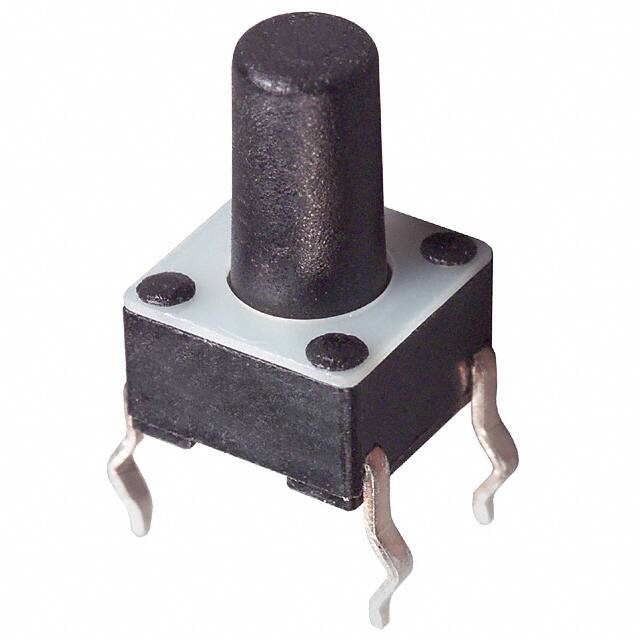

FSM8JSWITCH TACTILE SPST-NO 0.05A 24V |
1,837 |
|
Datasheet |
FSMJ | Bulk | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 9.50mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
95C06A4TSWITCH TACTILE SPST-NO 0.05A 12V |
2,134 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06C2TSWITCH TACTILE SPST-NO 0.05A 12V |
4,163 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06F2TSWITCH TACTILE SPST-NO 0.05A 12V |
1,411 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -25°C ~ 70°C |
|
|
95C06E5TSWITCH TACTILE SPST-NO 0.05A 12V |
1,568 |
|
Datasheet |
95C | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 320gf | - | Tactile Feedback | -25°C ~ 70°C |
|
KSC521JSWITCH TACTILE SPST-NO 0.05A 32V |
2,609 |
|
Datasheet |
KSC5 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 5.60mm | 0.05A @ 32VDC | - | Top or Side Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP50 - Dust Protected | - | 200gf | - | Sealed | -40°C ~ 85°C |
|
B3F-6005SWITCH TACTILE SPST-NO 0.05A 24V |
3,339 |
|
Datasheet |
B3F | Tape & Box (TB) | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
|
ADTSM644NVBTACT SWITCH |
3,871 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
ADTS644KSVTACT SWITCH |
4,337 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EVP-BB2A9E000SWITCH TACTILE SPST-NO 0.02A 15V |
1,072 |
|
Datasheet |
EVPBB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.53mm | 0.02A @ 15VDC | - | Top Actuated | Gull Wing | 2.60mm x 1.60mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 163gf | - | - | -40°C ~ 85°C |
|
EVQ-PQHB55SWITCH TACTILE SPST-NO 0.02A 15V |
3,350 |
|
Datasheet |
EVQPQ | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 0.55mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 4.50mm x 4.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3750AF100QGSWITCH TACTILE SPST-NO 0.05A 12V |
4,534 |
|
Datasheet |
TL3750 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 0.58mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.00mm x 2.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 85°C |
